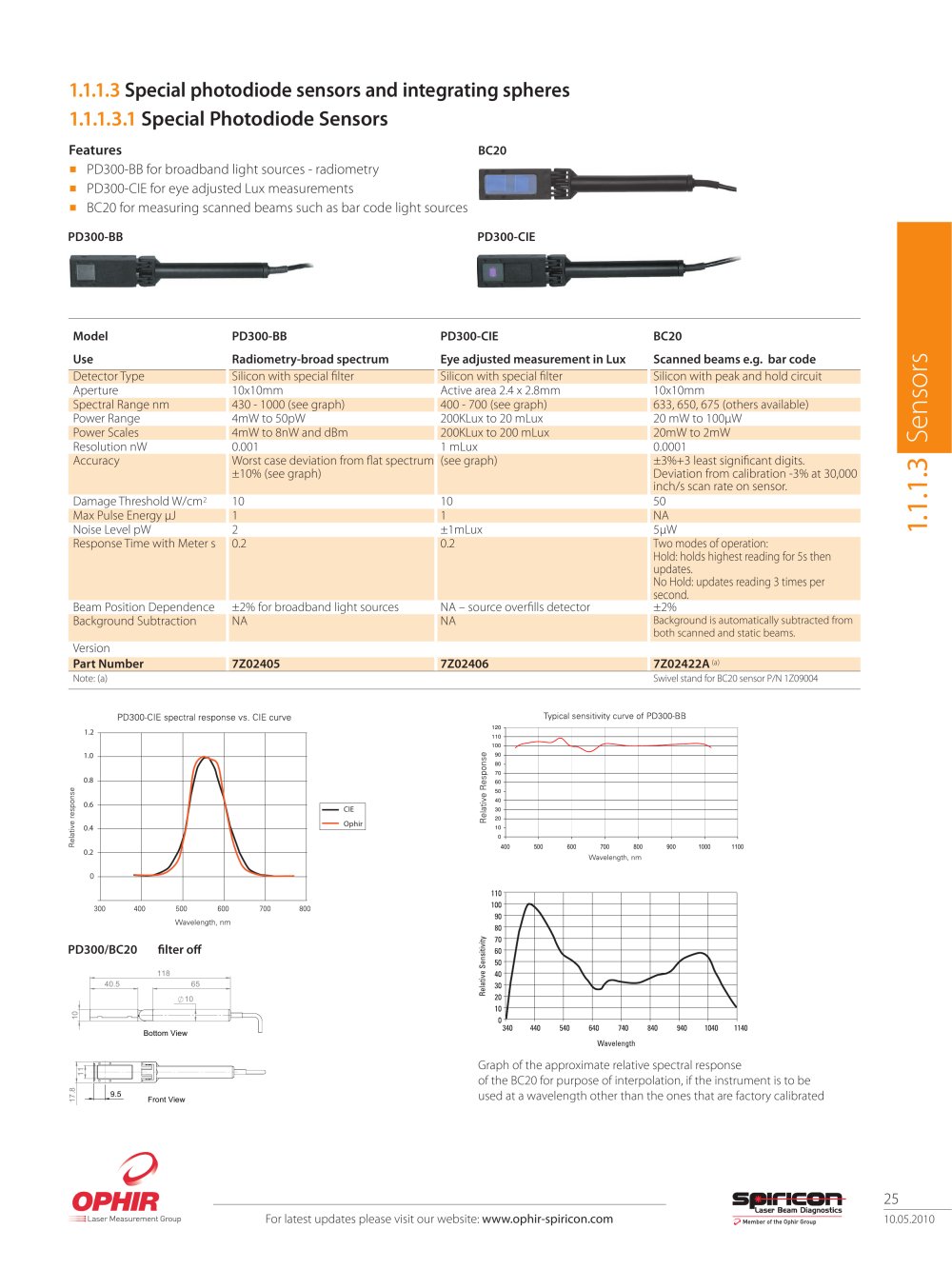

25 For latest updates please visit our website: www.ophir-spiricon.com 10.05.2010 1.1.1.3 Special photodiode sensors and integrating spheres 1.1.1.3.1 Special Photodiode Sensors Features PD300-BB for broadband light sources - radiometry PD300-CIE for eye adjusted Lux measurements BC20 for measuring scanned beams such as bar code light sources Ê Ê Ê PD300-BB PD300-CIE BC20 PD300/BC20 Model PD300-BB PD300-CIE BC20 Use Radiometry-broad spectrum Eye adjusted measurement in Lux Scanned beams e.g. bar code Detector Type Silicon with special filter Silicon with special filter Silicon with peak and hold circuit Aperture 10x10mm Active area 2.4 x 2.8mm 10x10mm Spectral Range nm 430 - 1000 (see graph) 400 - 700 (see graph) 633, 650, 675 (others available) Power Range 4mW to 50pW 200KLux to 20 mLux 20 mW to 100ìW Power Scales 4mW to 8nW and dBm 200KLux to 200 mLux 20mW to 2mW Resolution nW 0.001 1 mLux 0.0001 Accuracy Worst case deviation from flat spectrum ±10% (see graph) (see graph) ±3%+3 least significant digits. Deviation from calibration -3% at 30,000 inch/s scan rate on sensor. Damage Threshold W/cm2 10 10 50 Max Pulse Energy ìJ 1 1 NA Noise Level pW 2 ±1mLux 5ìW Response Time with Meter s 0.2 0.2 Two modes of operation: Hold: holds highest reading for 5s then updates. No Hold: updates reading 3 times per second. Beam Position Dependence ±2% for broadband light sources NA – source overfills detector ±2% Background Subtraction NA NA Background is automatically subtracted from both scanned and static beams. Version Part Number 7Z02405 7Z02406 7Z02422A (a) Note: (a) Swivel stand for BC20 sensor P/N 1Z09004 Graph of the approximate relative spectral response of the BC20 for purpose of interpolation, if the instrument is to be used at a wavelength other than the ones that are factory calibrated filter off 1.1.1.3 Sensors 11 17.8 9.5 Front View 10 40.5 10 65 118 Bottom View installed 10 65 PD300 with filter off 1 NAME DRAWN SIGN. DATE T.M. 12.09 APPR. A.R. PD300 REV. 11 17.8 9.5 Front View 10 40.5 10 65 118 Bottom View installed 10 PD300 with filter off 1 NAME DRAWN SIGN. DATE T.M. 12.09 APPR. A.R. PD300 REV. Typical sensitivity curve of PD300-BB 0 10 20 30 40 50 60 70 80 90 100 110 120 ƒOƒPƒP ƒQƒPƒP ƒRƒPƒP ƒSƒPƒP ƒTƒPƒP ƒUƒPƒP ƒVƒPƒPƒP ƒVƒVƒPƒP Wavelength, nm Relative Response CIE Ophir 1.0 0.8 0.6 1.2 0.4 0.2
