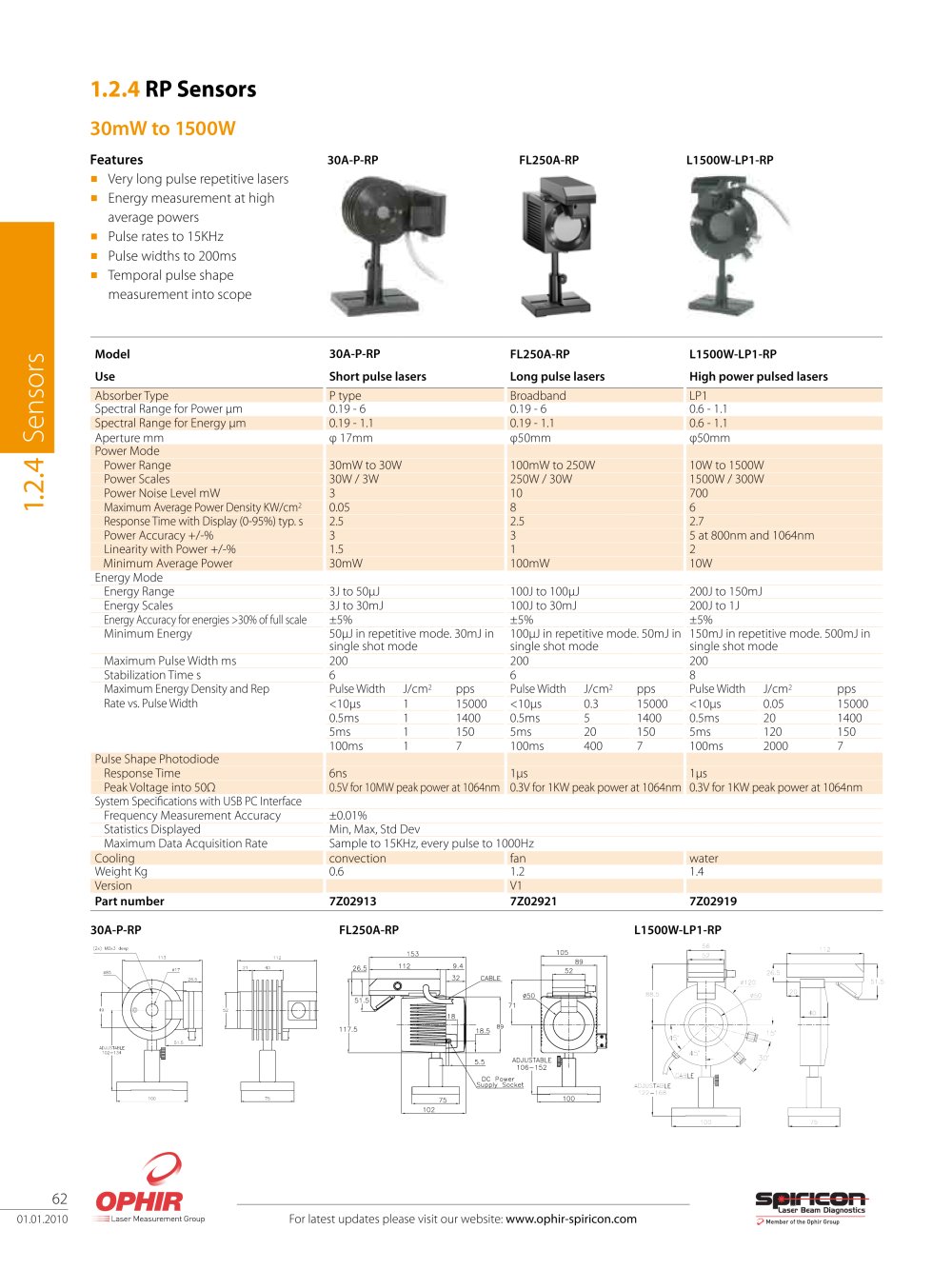

For latest updates please visit our website: www.ophir-spiricon.com 62 01.01.2010 1.2.4 RP Sensors 30mW to 1500W Features Very long pulse repetitive lasers Energy measurement at high average powers Pulse rates to 15KHz Pulse widths to 200ms Temporal pulse shape measurement into scope Ê Ê Ê Ê Ê Model 30A-P-RP FL250A-RP L1500W-LP1-RP Use Short pulse lasers Long pulse lasers High power pulsed lasers Absorber Type P type Broadband LP1 Spectral Range for Power ìm 0.19 - 6 0.19 - 6 0.6 - 1.1 Spectral Range for Energy ìm 0.19 - 1.1 0.19 - 1.1 0.6 - 1.1 Aperture mm ö 17mm ö50mm ö50mm Power Mode Power Range 30mW to 30W 100mW to 250W 10W to 1500W Power Scales 30W / 3W 250W / 30W 1500W / 300W Power Noise Level mW 3 10 700 Maximum Average Power Density KW/cm2 0.05 8 6 Response Time with Display (0-95%) typ. s 2.5 2.5 2.7 Power Accuracy +/-% 3 3 5 at 800nm and 1064nm Linearity with Power +/-% 1.5 1 2 Minimum Average Power 30mW 100mW 10W Energy Mode Energy Range 3J to 50ìJ 100J to 100ìJ 200J to 150mJ Energy Scales 3J to 30mJ 100J to 30mJ 200J to 1J Energy Accuracy for energies >30% of full scale ±5% ±5% ±5% Minimum Energy 50ìJ in repetitive mode. 30mJ in single shot mode 100ìJ in repetitive mode. 50mJ in single shot mode 150mJ in repetitive mode. 500mJ in single shot mode Maximum Pulse Width ms 200 200 200 Stabilization Time s 6 6 8 Maximum Energy Density and Rep Rate vs. Pulse Width Pulse Width J/cm2 pps Pulse Width J/cm2 pps Pulse Width J/cm2 pps <10ìs 1 15000 <10ìs 0.3 15000 <10ìs 0.05 15000 0.5ms 1 1400 0.5ms 5 1400 0.5ms 20 1400 5ms 1 150 5ms 20 150 5ms 120 150 100ms 1 7 100ms 400 7 100ms 2000 7 Pulse Shape Photodiode Response Time 6ns 1ìs 1ìs Peak Voltage into 50Ù 0.5V for 10MW peak power at 1064nm 0.3V for 1KW peak power at 1064nm 0.3V for 1KW peak power at 1064nm System Specifications with USB PC Interface Frequency Measurement Accuracy ±0.01% Statistics Displayed Min, Max, Std Dev Maximum Data Acquisition Rate Sample to 15KHz, every pulse to 1000Hz Cooling convection fan water Weight Kg 0.6 1.2 1.4 Version V1 Part number 7Z02913 7Z02921 7Z02919 30A-P-RP FL250A-RP L1500W-LP1-RP 30A-P-RP L1500W-LP1-RP 1.2.4 Sensors FL250A-RP

Open the catalog to page 1

63 For latest updates please visit our website: www.ophir-spiricon.com 01.01.2010 Maximum Pluse Width Setting (ms) 0.01 0.1 1 10 100 10000 100000 10000 1000 100 10 Maximum Repetition Rate (Hz) Maximum Laser Repetition Rate for a Given Pulse Width Setting for RP Heads 1.2.4 Sensors
