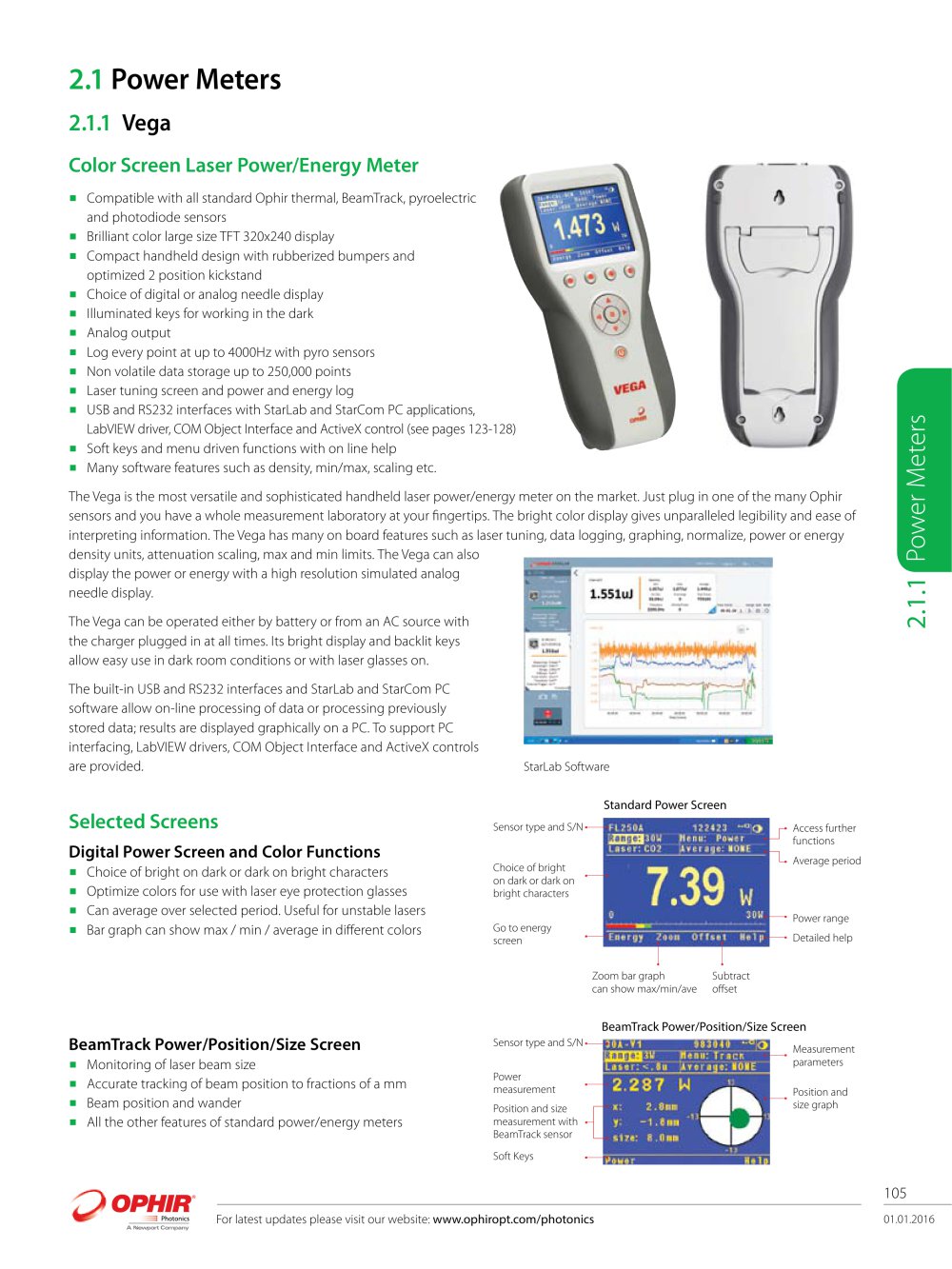

2.1 Power Meters 2.1.1 Vega ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ ֺ Compatible with all standard Ophir thermal, BeamTrack, pyroelectric and photodiode sensors Brilliant color large size TFT 320x240 display Compact handheld design with rubberized bumpers and optimized 2 position kickstand Choice of digital or analog needle display Illuminated keys for working in the dark Analog output Log every point at up to 4000Hz with pyro sensors Non volatile data storage up to 250,000 points Laser tuning screen and power and energy log USB and RS232 interfaces with StarLab and StarCom PC applications, LabVIEW driver, COM Object Interface and ActiveX control (see pages 123-128) Soft keys and menu driven functions with on line help Many software features such as density, min/max, scaling etc. The Vega is the most versatile and sophisticated handheld laser power/energy meter on the market. Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. The bright color display gives unparalleled legibility and ease of interpreting information. The Vega has many on board features such as laser tuning, data logging, graphing, normalize, power or energy density units, attenuation scaling, max and min limits. The Vega can also display the power or energy with a high resolution simulated analog needle display. The Vega can be operated either by battery or from an AC source with the charger plugged in at all times. Its bright display and backlit keys allow easy use in dark room conditions or with laser glasses on. The built-in USB and RS232 interfaces and StarLab and StarCom PC software allow on-line processing of data or processing previously stored data; results are displayed graphically on a PC. To support PC interfacing, LabVIEW drivers, COM Object Interface and ActiveX controls are provided. Selected Screens Digital Power Screen and Color Functions Choice of bright on dark or dark on bright characters Optimize colors for use with laser eye protection glasses Can average over selected period. Useful for unstable lasers Bar graph can show max / min / average in different colors Color Screen Laser Power/Energy Meter StarLab Software Standard Power Screen Sensor type and S/N Access further functions Average period Choice of bright on dark or dark on bright characters Power range Detailed help Zoom bar graph can show max/min/ave Subtract offset BeamTrack Power/Position/Size Screen BeamTrack Power/Position/Size Screen Monitoring of laser beam size Accurate tracking of beam position to fractions of a mm Beam position and wander All the other features of standard power/energy meters Sensor type and S/N Power measurement Position and size measurement with BeamTrack sensor Measurement parameters Position and size graph Soft Keys 105 For latest updates please visit our website: w

Open the catalog to page 1

Analog Power Screen ■ Perfect for adjusting and maximizing laser power ■ Persistent graphical display allows tracking of minimum maximum values measured ■ Large analog needle with small digital display as well Choiceof smaller display with range, average headers Energy/Limits Screen ■ Pulsed energy sensors (single or repetitive) and therma sensors (single shot only). ■ Freguency measurement with pulsed energy sensors. ■ Limits screen with bright colored warning Energy Logging Screen ■ Pyroelectric and thermal sensors ■ Continuous scroll with up to 100 points on screen ■ Store data onboard...

Open the catalog to page 2
