Overview of Orion Family of Handheld Laser Meters
The Orion series offers a cost-effective alternative for users who do not require the multifunctionality or single-shot energy capability of the Nova series. It includes three main models: Orion TH, Orion PE, and Orion PD, each designed for specific sensor types and measurement needs.

Orion TH

Compatible with over 50 Ophir thermal sensors, measuring power from microwatts to multi-kilowatts.
Features fast response power measurement with auto or manual ranging and laser tuning screen for power maximization.
Includes background offset adjustment and wavelength correction for major laser wavelengths.

Orion PE

Supports all Ophir pyroelectric sensors and the PD10 nanojoule meter.
Measures laser energy from nanojoules to 60 joules with frequencies up to 5 kHz.
Includes energy logging statistics and built-in wavelength correction.

Orion PD

Supports all Ophir photodiode sensors with a range of 200-1800 nm.
Features wavelength correction at 1 nm increments and dynamic background subtraction.
Measures power from picowatts to 3 watts, displaying results in Watts or dBm.

Specifications

High legibility 32 x 122 pixel graphics LCD with backlight.
RS232 and optional analog output, housed in a compact, high-impact plastic case.
Rechargeable battery with 22 hours of operating time per charge.
Data can be logged on board or transmitted to a PC at rates of over 10 points/s and ~50 points/s respectively.
Features include user-configurable startup settings, zeroing at the press of a button, and plug-and-play operation.

Ordering Information

Orion TH: Power meter for thermal sensors (P/N: 7Z01801).
Orion PD: Power meter for photodiode sensors (P/N: 7Z01803).
Orion PE: Power meter for pyroelectric sensors (P/N: 7Z01802).
Accessories include carrying cases, RS232 assemblies, and replacement battery packs.

Catalog excerpts

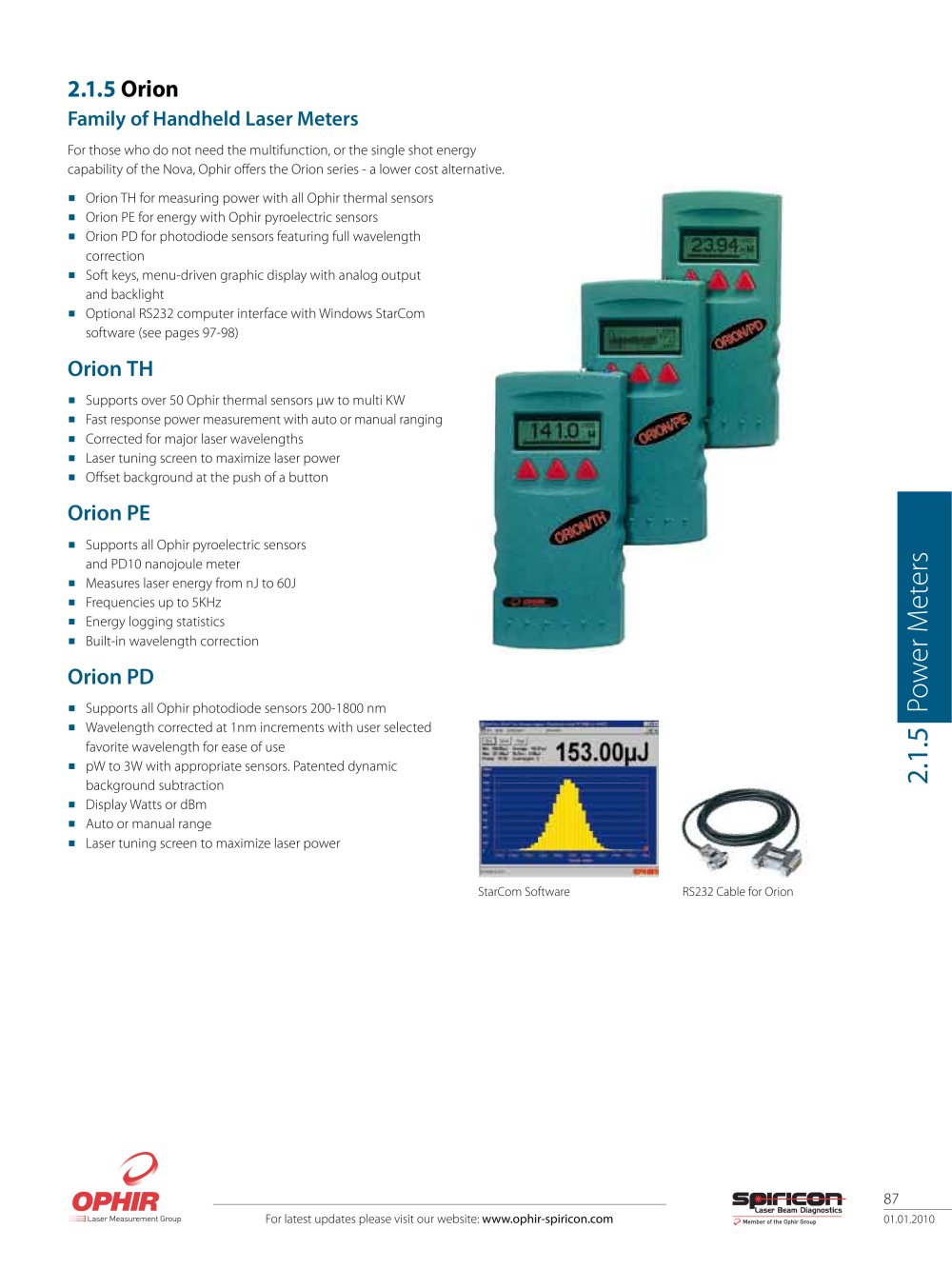

For latest updates please visit our website: www.ophir-spiricon.com 87 01.01.2010 2.1.5 Orion Family of Handheld Laser Meters For those who do not need the multifunction, or the single shot energy capability of the Nova, Ophir offers the Orion series - a lower cost alternative. Orion TH for measuring power with all Ophir thermal sensors Orion PE for energy with Ophir pyroelectric sensors Orion PD for photodiode sensors featuring full wavelength correction Soft keys, menu-driven graphic display with analog output and backlight Optional RS232 computer interface with Windows StarCom software (see pages 97-98) Orion TH Supports over 50 Ophir thermal sensors ìw to multi KW Fast response power measurement with auto or manual ranging Corrected for major laser wavelengths Laser tuning screen to maximize laser power Offset background at the push of a button Orion PE Supports all Ophir pyroelectric sensors and PD10 nanojoule meter Measures laser energy from nJ to 60J Frequencies up to 5KHz Energy logging statistics Built-in wavelength correction Orion PD Supports all Ophir photodiode sensors 200-1800 nm Wavelength corrected at 1nm increments with user selected favorite wavelength for ease of use pW to 3W with appropriate sensors. Patented dynamic background subtraction Display Watts or dBm Auto or manual range Laser tuning screen to maximize laser power Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê Ê 2.1.5 Power Meters StarCom Software RS232 Cable for Orion
