Product catalog summary

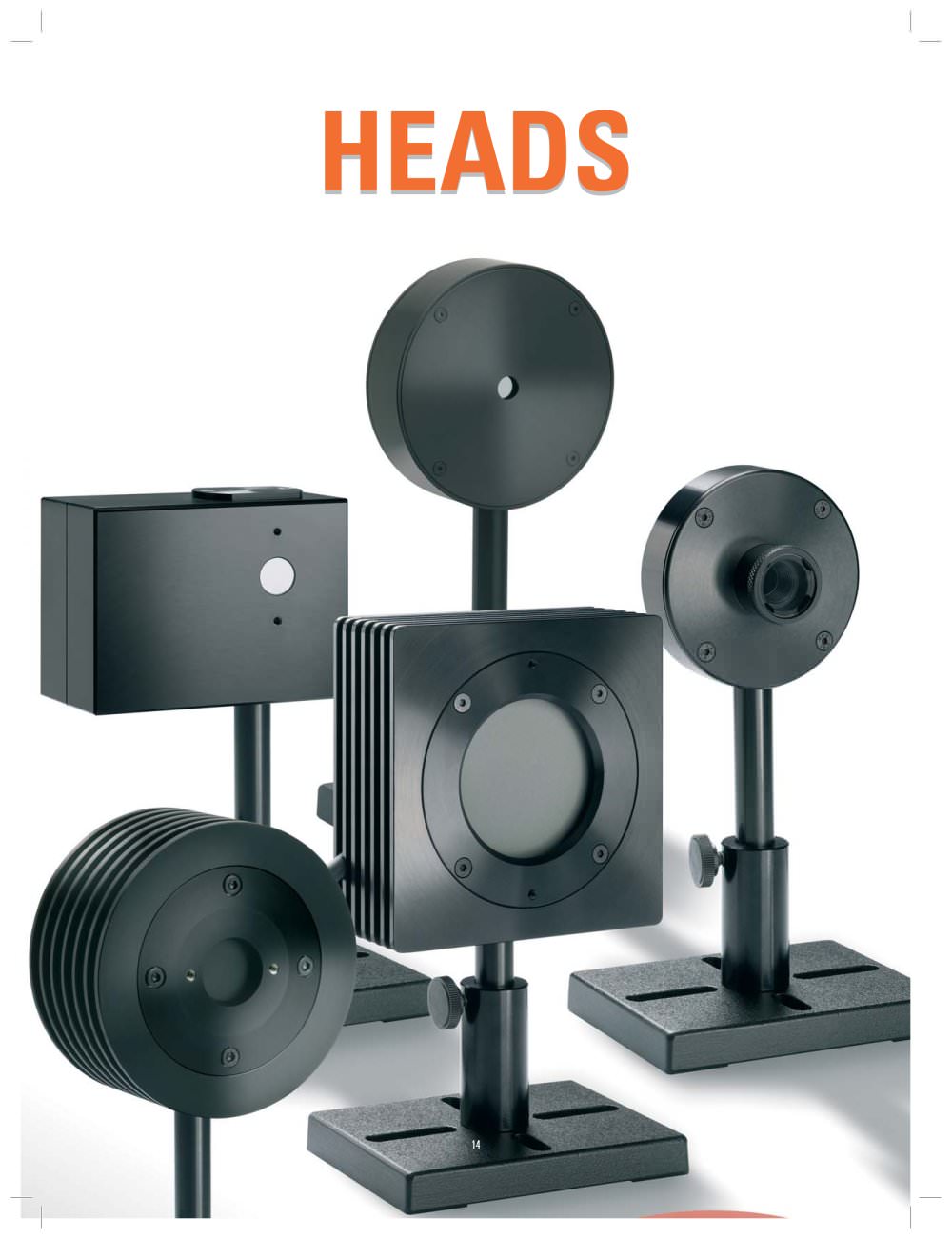

Overview: This document provides detailed specifications and descriptions of various laser power and energy measurement heads offered by Ophir. It includes photodiode heads, integrating spheres, thermal heads, pyroelectric heads, and RP heads for pulsed high power/energy lasers.

Photodiode Heads: These are designed for low power measurements ranging from 10pW to 3W. Key features include automatic background subtraction and a variety of spectral ranges and apertures. Models like PD300, PD300-IR, and PD300-UV cater to different spectral needs and power ranges.

Integrating Spheres: Used for measuring divergent beams, these spheres can handle power ranges from 1µW to 100W. Models such as 3A-IS and F100A-IS are highlighted for their specific spectral and power handling capabilities.

Thermal Heads: These are categorized into low, medium, and high power ranges. They cover average powers from 60µW to 10KW and single shot energies from 15µJ to 300J. The document details various models like 3A, 10A, and L50(300)A, each with specific features and applications.

Pyroelectric and Photodiode Heads: Designed for measuring repetitive pulses, these heads offer a wide dynamic range and high repetition rates. Models such as PD10 and PE50 are discussed, highlighting their energy range and maximum frequency capabilities.

RP Heads for Pulsed High Power/Energy Lasers: These heads are suitable for long pulse and high duty cycle applications, with average powers up to 1500W and pulse energies exceeding 50J. The document describes models like 30A-P-RP and L1500W-LP-RP, emphasizing their industrial applications.

Accessories: The document also mentions fiberoptic adapters and other accessories that complement the measurement heads, enhancing their functionality and application range.

Graphs: Spectral and absorption graphs are provided to illustrate the performance and damage thresholds of the various heads.

Catalog excerpts

HeadFeaturesApertureSpectral RangePower RangeEnergy RangePage 30(150)ACW to 30W, intermittent to 150W ֘ 17mm0.19-20 m50mW-150W20mJ-300J4030(150)A-LP1As above, high damage threshold for long pulses ՘ 17mm0.25-2.2 m50mW-150W20mJ-300J4030(150)A-HEHigh energy and average power, CW to 30W, intermittent to 150W ՘ 17mm0.19-0.625 m, 1.064 յ m, 2.1 m, 2.94 յ m50mW-150W50mJ-200J4030(150)A-HE1High energy and average power, CW to 30W, intermittent to 150W 17mm0.19-0.76 ص m, 2.9 m50mW-150W50mJ-200J40 30(150)A-HE-DIF For high energy Q switched pulses to 30W, intermittent to 150W ՘ 16mm0.19-3 m except for 625-900nm50mW-150W50mJ-30J4130(150)A-SVVery...
