Laser Power Meter - Pyroelectric Smart Heads

Laser Power Meter - Pyroelectric Smart Heads

Product catalog summary

Overview: The document outlines the specifications and features of pyroelectric, photodiode, and RP (Repetitive Pulse) heads used for precise energy measurements in pulsed lasers. These devices are designed for high accuracy and versatility.

Pyroelectric and Photodiode Heads: These heads employ patented technology for accurate measurements under various conditions. Key features include:

Accuracy: Independent of pulse rate, duration, or history, with built-in wavelength correction.
Performance: Capable of measuring pulse rates up to 20,000Hz and energy as low as 10pJ, with a high damage threshold and removable diffusers for high-energy lasers.
Versatility: Suitable for both long and short pulses, compatible with various displays, and capable of high-frequency data storage and transmission.

RP Heads: These heads integrate thermal and photodiode measurements for precise energy per pulse readings, providing comprehensive laser performance data. They can store up to 50,000 data points and display pulse shapes with high resolution.

Specific Models:

PD10: Measures pulse energy from 1nJ to 20µJ at up to 10,000Hz, ideal for low energies and high repetition rates.
PD10-pJ: Measures extremely low energies from 10pJ to 200nJ, with similar frequency capabilities as the PD10.
PE9/PE9-F: Designed for low energy measurements, with the PE9-F supporting higher repetition rates up to 20KHz.
PE10/PE10BB: Suitable for low energy lasers with a broad spectral range, offering different absorber options.
PE25/PE25BB: General use for medium aperture pulsed lasers, offering high sensitivity and a spectrally flat option.
PE50/PE50BB: Designed for large aperture pulsed lasers, with options for high sensitivity and long pulse measurements.
PE25BB-DIF/PE25-DIF: Features a diffuser for high damage threshold, suitable for high energy YAG lasers.
PE50BB-DIF/PE50DIF-ER: Offers removable diffusers for high energy and high repetition rate lasers, including Erbium lasers.
PE50-DIF-U: Specifically for Q-switched lasers in the UV range, with high damage threshold and repetition rate capabilities.

Specifications:

Wavelengths: 193nm, 248nm, 351-355nm, 532nm, 1064nm.
Damage Threshold: 300mJ/cm² for <400nm, 200mJ/cm² for >400nm.
Linearity: ±2% for >10% of full scale.
Maximum Average Power: 20W.
Aperture: Ø33mm.
Maximum Average Power Density: 25W/cm².
Uniformity: ±2% over the surface.
Cooling: Convection.

Procedures and Recommendations:

Recommended Use: High energy excimer lasers at 193nm.
Special Features: High damage threshold for 193nm radiation.
Spectral Response: HD type for 157nm 12μm, calibrated at 193nm.
Surface Reflectivity: ~10% in the UV.
Maximum Pulse Width: 10μs.
Maximum Pulse Rate: 100Hz.

Ordering Information:

PE50-DIF-U-V2: 33mm aperture pyroelectric head, P/N 1Z02875.
PE50HD: 46mm aperture pyroelectric head, P/N 1Z02863.
Beam Splitter: For PE and thermal heads, P/N 1Z17001.

Accessories:

Scope Adapter: Provides BNC output to scope, P/N 1Z11012.
Test Slides: Set of 3 for damage threshold testing, P/N 1E06031A/C.
Fiber Adapters: Various types for mounting fiber optics.

Performance and Calibration:

Calibration Accuracy: ±3% at 193nm.
Noise on Lowest Range: 20μJ.
Additional Error with Frequency: ±3%.

Graphical Data:

Spectral Absorption: Graphs show absorption rates for different heads.
Pulsed Laser Damage Threshold: Graphs indicate energy density thresholds for various pulse widths.

Catalog excerpts

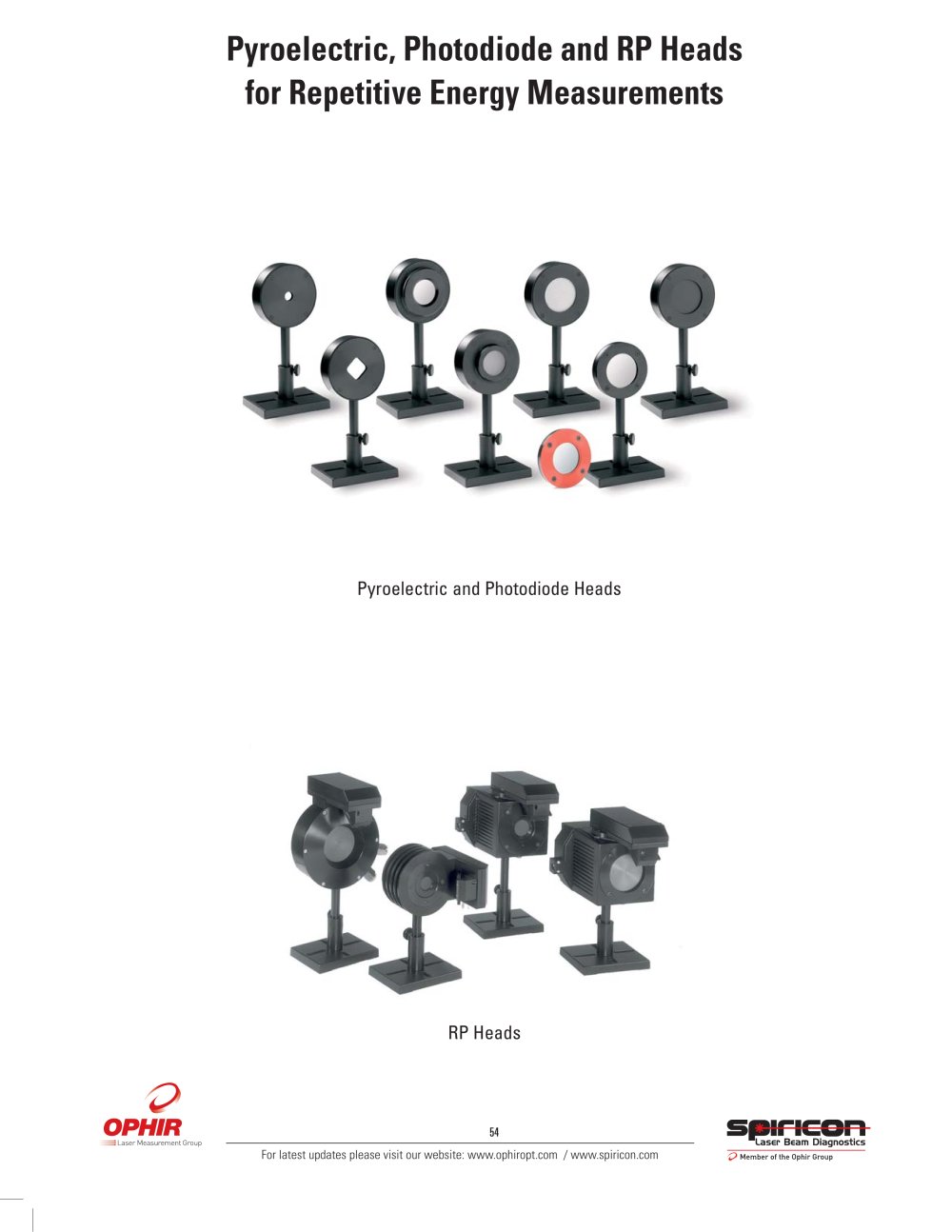

Laser Power Meter - Pyroelectric Smart Heads-1

54 For latest updates please visit our website: www.ophiropt.com / www.spiricon.com >

Open the catalog to page 1

Laser Power Meter - Pyroelectric Smart Heads-2

Ophir pyroelectric meters use innovative, patented technology which facilitates accurate and repeatable measurements over an extensive range of conditions. Ophirs pyroelectric meters exclusive features are: Accuracy Versatility Accuracy completely independent of pulse rate, duration or history. Measurements of very long and very short pulses (e.g. excimer and holmium) with same head. Built-in wavelength correction. Nova, Nova II and Laserstar displays with Smart Connector, compatible with all Ophir Thermopile and Photodiode heads. Measurement from nW to KW, ҵ J to 200J with appropriate heads...

Open the catalog to page 2

Laser Power Meter - Pyroelectric Smart Heads-16

Spectral Range:0.6 - 1.1 mAbsorber:LP high damage threshold absorberAperture: ՘ 50mmDigital Power Scales:1500W/300W Maximum Average Power Density:6KW/cm > 2 L1500W-LP-RP Power Noise Level:0.7W Power Accuracy:5%Stabilization Time:8sEnergy Scales:100J to1JEnergy Accuracy:ѱ5% for energies > 30% of full scaleMinimum Energy: 150mJ in repetitive mode, 500mJ in single shot Minimum Average Power:10WMaximum Pulse Width:200msMaximum Energy Densityand Repetition Rate: RP: Pulse width J/cm > 2 Max Repetition Rate <10 System / Display Specifications when used with Laserstar Display s 0.1 15KHz 0.5ms 20 1.4KHz...

Open the catalog to page 16

Laser Power Meter - Pyroelectric Smart Heads-18

EX Pyro BBPyro Metallic 2 ENERGY DENSITY IN J/CM -10 10 > -9 10 > -8 10 > -7 10 > -6 10 > -5 10 > -4 10 > -3 10 > -2 10 > -1 1 100K10K1K1001010.10.01 1ns1 յ s1ms1s PULSE WIDTH IN SECONDS > 71 For latest updates please visit our website: www.ophiropt.com / www.spiricon.com size="-1">

Open the catalog to page 18
