Introduction
Onvio LLC introduces the new Power Pulley reducer, a modular gearbox design integrated with AL value line gearing. This product is tailored for high dynamic linear motion systems such as linear actuators, gantry robots, and high-speed packaging machinery.

Flexibility
The Power Pulley offers flexibility with pulleys available for almost any pitch style, enhancing design options for machine designers. It is sealed to IP67 standards for washdown applications, and sprockets or wheel hubs can be requested.

Ratio Availability
The reducer is available in single and two-stage designs, offering ratio options from 4:1 to 99:1 with minimal change in package size.

Interchangeability
Designed for quick and easy installation onto linear actuators and gantry systems.

Increased Bearing Capacity
Features two angular contact bearings centered in the pulley, providing high bearing capacity for precision timing belts in a cost-effective package.

Universal Servo Interface
Adapts quickly to any servo or stepper motor.

Product Features

Precision: 12 arc minutes backlash, high shock load capacity, exceptional torsional stiffness, rigid bearing construction, smooth and quiet operation.
Intelligence: Fewer components lead to higher reliability and lower costs, adaptable to most linear actuators, supports a wide range of pulley pitch types, and offers single and two-stage reductions.
Dynamic Performance: Hardened, ground gears, low inertia, high safety factor, input speeds up to 6000 rpm, and high rigidity for greater dynamic response and shorter cycle times.

About Onvio
Onvio LLC is headquartered in Salem, NH, with a 45,000 square foot manufacturing facility. Additional manufacturing is located in Puebla, Mexico, with operations in Germany, ensuring global customer service and timely product delivery.

Catalog excerpts

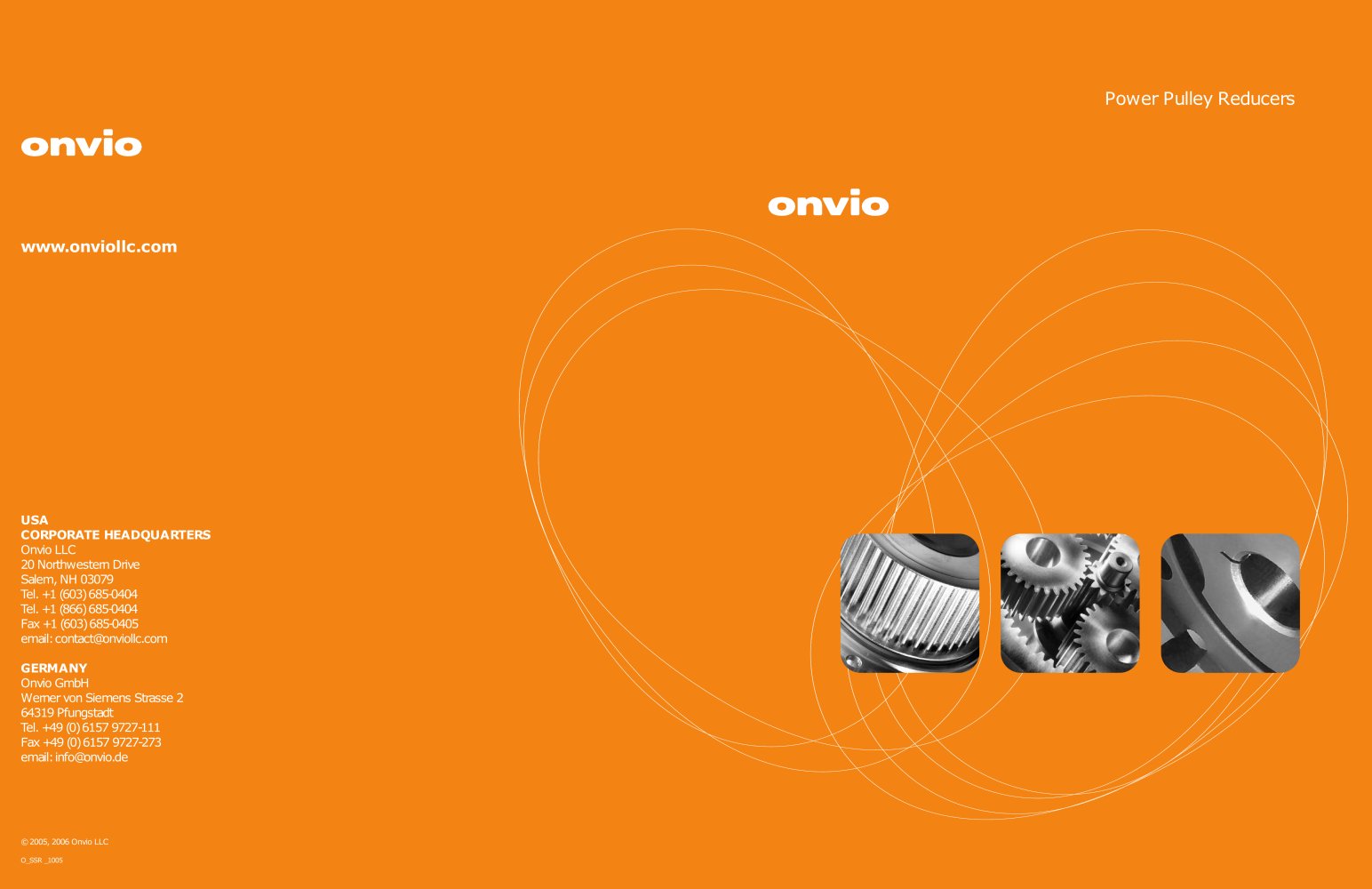

GERMANY Onvio GmbH Werner von Siemens Strasse 2 64319 Pfungstadt Tel. +49 (0) 6157 9727-111 Fax +49 (0) 6157 9727-273 email: [email protected] USACORPORATE HEADQUARTERS Onvio LLC 20Northwestern Drive Salem, NH 03079 Tel. +1 (603) 685-0404 Tel. +1 (866) 685-0404 Fax +1 (603) 685-0405 email: [email protected] > 2005, 2006 Onvio LLC O_SSR _1005 size="-2">

Open the catalog to page 1

? High Shock Load Capacity ? Exceptional Torsional Stiffness ? Rigid Bearing Construction > ? Smooth, Quiet Operation > ? Fewer Components Results inHigher Reliability and Lower Costs > ? Easily Adapts to Most Linear Actuators Supplied with Wide Range of Pulley Pitch Types > ? Internal and External Support of Belt Loads ? Single and Two Stage Reductions > ? Hardened, Ground Gears > ? Low Inertia ? High Safety Factor ? Input Speeds to 6000 rpm ? High Rigidity Results in Greater Dynamic Response and Shorter Cycle Times >

Open the catalog to page 2
