SE-2500

Product catalog summary

Overview: The document provides detailed specifications and functionalities of two gasoline engine tachometers, SE-2500 and HT-6100, designed for measuring engine rotations in gasoline and diesel engines, as well as other rotating objects.

Specifications:

Power Source: Both models use four AAA alkaline batteries or an optional AC adapter (PB-7080). SE-2500 offers at least 32 hours of battery life with the backlight off, while HT-6100 offers 16 hours.
Operating Conditions: Operating temperature range is 0 to 40°C, with storage temperatures from -10 to 50°C.
Dimensions and Weight: SE-2500 measures 198.5 x 47.5 x 66 mm and weighs approximately 300 g. HT-6100 measures 189.5 x 47.5 x 66 mm and weighs approximately 280 g.

Output Functions:

Both models provide analog, monitor, and pulse outputs for recording rotations, checking sensor waveforms, and outputting synchronization signals.
Output voltage ranges from 0 to 1 V, with a 10-bit D/A conversion and a linearity of ±1%/FS.

Measurement Capabilities:

SE-2500: Suitable for gasoline engines (2-cycle and 4-cycle) with a detection range of 10 to 200 mm. It features a 5-digit LCD display with backlight and can measure in r/min or r/s units.
HT-6100: Compatible with gasoline and diesel engines, as well as general rotating objects. It supports various detectors and measures in r/min, r/s, m/min, ms, and COUNT units.

Additional Features:

Both models include a memory function for storing up to 20 data points and an over-range alarm for values exceeding the display range.
SE-2500 includes a sensitivity adjustment dial, while HT-6100 features a trigger level adjustment dial.
Both models can be mounted on a tripod for continuous measurement.

Accessories and Options: Both tachometers come with AAA batteries and a carrying case. Optional accessories include various ignition detectors, an AC adapter, and a tripod.

Catalog excerpts

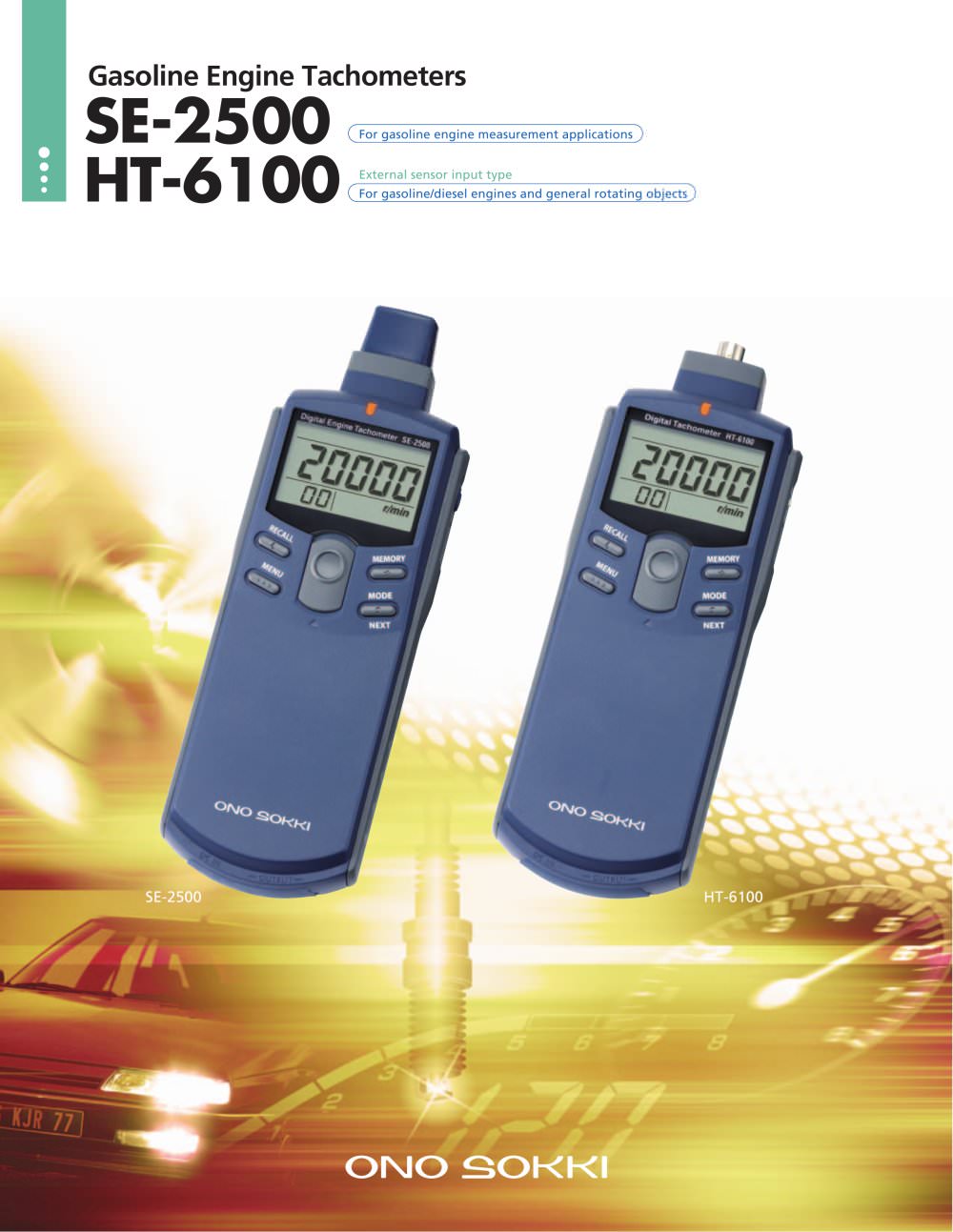

SE-2500 HT-6100 SE-2500 HT-6100 Gasoline Engine Tachometers For gasoline engine measurement applications For gasoline/diesel engines and general rotating objects External sensor input type

Open the catalog to page 1

Description of output function Output with respect to the displayed rotation values Power source Battery life Four AAA alkaline batteries or exclusive AC adapter (PB-7080, Option) At least 32 hours (when the backlight is OFF) At least 8 hours (when the backlight is ON) Low battery alarm indicator Operating temperature range A low battery alarm (LOW mark) is displayed when the battery voltage falls below 4.4 V. 0 to 40°C Storage temperature range Outer dimensions -10 to 50°C 198.5 (W) x 47.5 (H) x 66 (D) mm Weight (including batteries) Accessories Approx. 300 g Ignition detector (IP-2800) 1 AAA...

Open the catalog to page 2

Specifications Description of output function Output with respect to the displayed rotation values Power source Battery life Four AAA alkaline batteries or exclusive AC adapter (PB-7080, Option) At least 16 hours (when the backlight is OFF) At least 8 hours (when the backlight is ON) Low battery alarm indicator Operating temperature range A low battery alarm (LOW mark) is displayed when the battery voltage falls below 4.4 V. 0 to 40ºC Storage temperature range Outer dimensions -10 to 50ºC 189.5 (W) x 47.5 (H) x 66 (D) mm Weight (including batteries) Accessories Approx. 280 g AAA alkaline batteries...

Open the catalog to page 3

CAT. NO. 040913-01 Printed in Japan 061 (SK) 2K U.S.A. & CANADA Ono Sokki Technology Inc. 2171 Executive Drive, Suite 400 Addison, IL. 60101 U.S.A. Phone : 630-627-9700 Fax : 630-627-0004 URL : http://www.onosokki.net E-mail : [email protected] P.R.CHINA Ono Sokki Beijing Office Beijing Jing Guang Center 3510 Hu Jia Lou, Chao Yang Qu Beijing P.R.C. 100020 Phone : 010-6597-3113 Fax : 010-6597-3114 E-mail : [email protected] WORLDWIDE Ono Sokki Co., Ltd. 1-16-1 Hakusan, Midori-ku, Yokohama 226-8507, Japan Phone : 045-935-3976 Fax : 045-930-1906 E-mail : [email protected] URL: http://www.onosokki.co.jp/English/english.htm...

Open the catalog to page 4
