Catalog excerpts

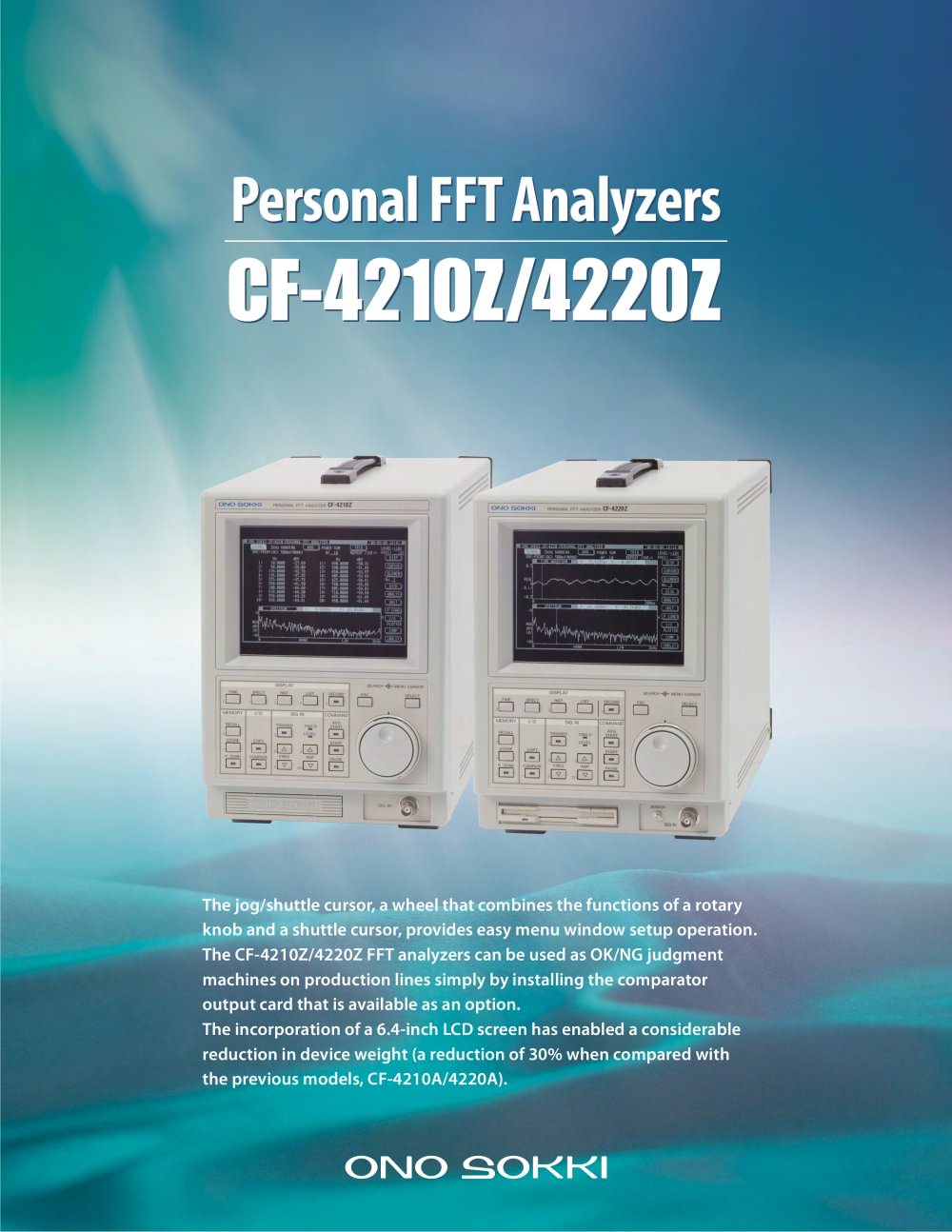

The jog/shuttle cursor, a wheel that combines the functions of a rotary knob and a shuttle cursor, provides easy menu window setup operation. The CF-4210Z/4220Z FFT analyzers can be used as OK/NG judgment machines on production lines simply by installing the comparator output card that is available as an option. The incorporation of a 6.4-inch LCD screen has enabled a considerable reduction in device weight (a reduction of 30% when compared with the previous models, CF-4210A/4220A). >

Open the catalog to page 1

Direct sensor input, floppy disk drive provided as standard > 16-bit A/D conversion, 85 dB (typ) dynamic range > 20 kHz real-time analysis function (CF-0430) provided as standard . > OK/NG judgment is performed with respect to the power spectrum, 1/1 and 1/3 octave calculation results. > Up to a maximum of 16 blocks can be specified as the judgment area. > T he comparison judgment method can be selected from five types: level, maximum value, area percentage, segment overall value and peak level. > The judgment results can be displayed on the LCD, or output using a relay contact. > Six types...

Open the catalog to page 2

CF-4210Z/4220Z LineupF eatures eatures > The comparator function demonstrates its power on production line OK/NG judgment applications. The comparator function is available as an option (CF-0460Z).A judgment block is specified for the amplitude level, and then contact output used to perform OK/NG judgment of products on a production line. The reference parameter used by the comparator is the rectangle defined by the upper and lower frequency and level limits (hereinafter referred to as "block"). Judgment is performed with respect to this block. The maximum number of blocks that can be...

Open the catalog to page 3

Model variations Display function > Display: 6.4-inch liquid crystal display Waveform display mode: Single frame, dual frame, two overlaid frames Processing functions > CF-4220Z (Direct sensor input function and floppy disk drive are provided.) > Display functions: Y-axis auto scaling, Y-axis manual scaling, maximum value display function, search function, cursor function, list display, label function, setup display, etc. Time-axis waveform, power spectrum, phase spectrum, 15 band 1/3 octave, 5 band 1/1 octave Probability density function, probability distribution function > Memory section...

Open the catalog to page 5

Outer appearance and specifications are subject to change without prior notice. URL: http://www.onosokki.co.jp/English/english.htm > Ono Sokki Technology Inc.2171 Executive Drive, Suite 400Addison, IL. 60101 U.S.A.Phone : 630-627-9700Fax : 630-627-0004URL Ono Sokki (Thailand) Co., Ltd. 29/67 Moo 5 Tivanon Road, Pakkred,Nonthaburi 11120, ThailandPhone : 02-964-3884Fax : 02-964-3887E-mail : osth_sales@onosokki.co.jp Ono Sokki Beijing Office Beijing Jing Guang Center 3510Hu Jia Lou, Chao Yang QuBeijing P.R.C. 100020Phone : 010-6597-3113Fax : 010-6597-3114E-mail : onosokki@public.bta.net.ch Ono...
