Overview: The document provides detailed specifications and functionalities of two gasoline engine tachometers, the SE-2500 and HT-6100, designed for measuring engine rotations in gasoline and diesel engines, as well as other rotating objects. Both models feature external sensor input types and offer various output functions.

Specifications:

Power Source: Both models use four AAA alkaline batteries or an optional AC adapter (PB-7080). The SE-2500 offers at least 32 hours of battery life with the backlight off, while the HT-6100 provides at least 16 hours.
Operating Conditions: Operating temperature ranges from 0 to 40°C, with storage temperatures between -10 to 50°C.
Dimensions and Weight: The SE-2500 measures 198.5 x 47.5 x 66 mm and weighs approximately 300 g, while the HT-6100 is slightly smaller at 189.5 x 47.5 x 66 mm and weighs 280 g.

Output Functions:

Analog Output: Both models provide a 0 to 1 V output with a 10-bit D/A conversion, suitable for monitoring purposes after waveform reshaping.
Monitor and Pulse Outputs: These outputs are standard, allowing for rotation synchronization signals and waveform checks.

Measurement Capabilities:

Applicable Engines: The SE-2500 is suitable for 2-cycle and 4-cycle gasoline engines, while the HT-6100 can measure gasoline and diesel engines and other rotating objects.
Measurement Ranges: Both models can measure rotations from 120 to 20,000 r/min, with the HT-6100 offering additional measurement units like m/min and ms.
Accuracy and Memory: Measurement accuracy is ±0.02% ±1 count, with a memory function capable of storing up to 20 data points.

Additional Features:

Display: Both models feature a 5-digit LCD with backlight for clear visibility.
Mounting Options: Both tachometers can be mounted on a tripod for continuous measurement.
Alarm Functions: Include low battery, over-range, and rotation upper limit alarms.

Accessories and Options: The document lists various optional accessories such as ignition detectors (IP-292, IP-296, IP-3000), electromagnetic detectors (OM-1200), and other mounting and signal output equipment.

Catalog excerpts

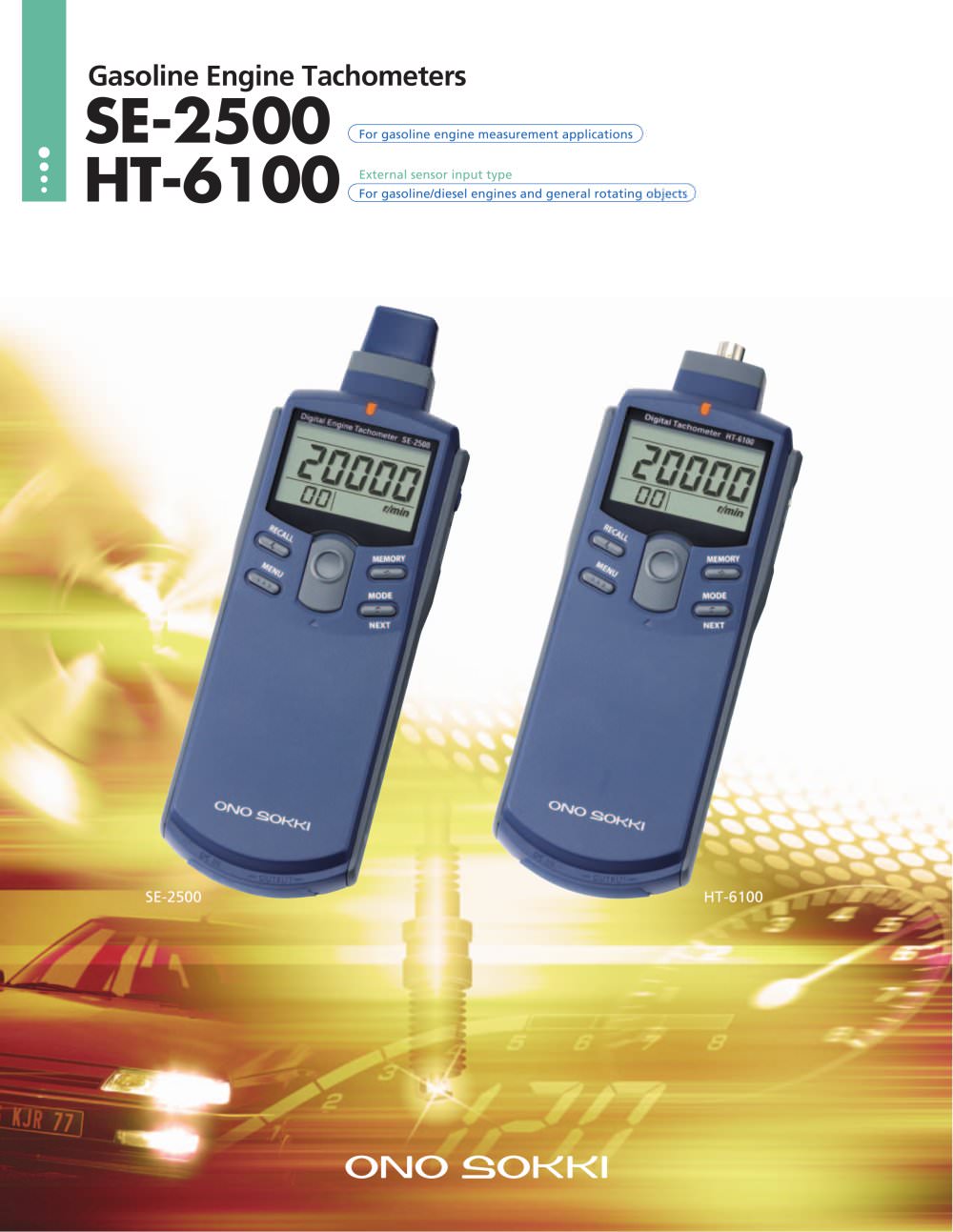

SE-2500 HT-6100 SE-2500 HT-6100 Gasoline Engine Tachometers For gasoline engine measurement applications For gasoline/diesel engines and general rotating objects External sensor input type

Open the catalog to page 1

Description of output function Output with respect to the displayed rotation values Power source Battery life Four AAA alkaline batteries or exclusive AC adapter (PB-7080, Option) At least 32 hours (when the backlight is OFF) At least 8 hours (when the backlight is ON) Low battery alarm indicator Operating temperature range A low battery alarm (LOW mark) is displayed when the battery voltage falls below 4.4 V. 0 to 40°C Storage temperature range Outer dimensions -10 to 50°C 198.5 (W) x 47.5 (H) x 66 (D) mm Weight (including batteries) Accessories Approx. 300 g Ignition detector (IP-2800) 1 AAA...

Open the catalog to page 2

Specifications Description of output function Output with respect to the displayed rotation values Power source Battery life Four AAA alkaline batteries or exclusive AC adapter (PB-7080, Option) At least 16 hours (when the backlight is OFF) At least 8 hours (when the backlight is ON) Low battery alarm indicator Operating temperature range A low battery alarm (LOW mark) is displayed when the battery voltage falls below 4.4 V. 0 to 40ºC Storage temperature range Outer dimensions -10 to 50ºC 189.5 (W) x 47.5 (H) x 66 (D) mm Weight (including batteries) Accessories Approx. 280 g AAA alkaline batteries...

Open the catalog to page 3

CAT. NO. 040913-01 Printed in Japan 061 (SK) 2K U.S.A. & CANADA Ono Sokki Technology Inc. 2171 Executive Drive, Suite 400 Addison, IL. 60101 U.S.A. Phone : 630-627-9700 Fax : 630-627-0004 URL : http://www.onosokki.net E-mail : [email protected] P.R.CHINA Ono Sokki Beijing Office Beijing Jing Guang Center 3510 Hu Jia Lou, Chao Yang Qu Beijing P.R.C. 100020 Phone : 010-6597-3113 Fax : 010-6597-3114 E-mail : [email protected] WORLDWIDE Ono Sokki Co., Ltd. 1-16-1 Hakusan, Midori-ku, Yokohama 226-8507, Japan Phone : 045-935-3976 Fax : 045-930-1906 E-mail : [email protected] URL: http://www.onosokki.co.jp/English/english.htm...
