High Resolution Linear Gauge Sensor & Counter | 2 pages

Product catalog summary

Overview: The document provides technical specifications and features of the HS-3412/3425 High Resolution Linear Gauge Sensor and the HG-4370 High Resolution Digital Gauge Counter. These devices are designed for precise positioning detection with high accuracy and resolution.

Specifications:

Accuracy and Resolution: High accuracy of ±0.5µm and resolution of ±0.05µm.
Environmental Resistance: Dust-proof structure with IP50 protection class.
Display: Large size LEDs with 14mm character height for easy data reading.
Functions: Includes offset, peak hold (MAX, MIN, RANGE), multiplying, and selectable resolution (0.05µm/0.1µm/0.5µm).
Measuring Range: 12 mm to 25 mm.
Power Supply: 5DVC with a maximum consumption current of 20 mA.
Operating Temperature: 0 to 40°C.
Weight: Approximately 200g to 220g.

Recommended Interface: The document suggests circuits for external signal inputs such as RESET, HOLD, COMPARATOR, and PEAK HOLD.

General Specifications for HG-4370:

Consumption Current: 1A Max. at 9VDC.
Dimensions: 144(W) x 72(H) x 180(D) mm.
Weight: Approximately 1.5 kg.
Accessories: Includes an exclusive AC power adaptor, stand foot, rubber foot, and socket for terminal.

Options: Various optional accessories such as gauge stand, exclusive digital printer, RS-232C cable, panel mount fixture, mechanical release, and air release are available.

Control and Interface:

External Signal Control: Supports voltage input with negative logic and non-contact input.
RS-232C Interface: For data printing and communication with a personal computer, supporting baud rates of 2400/4800/9600 bps.

Comparator Function: The comparator function evaluates measurement values against set upper and lower limits, displaying results as LOWER, OK, or UPPER.

Contact Information: The document provides contact details for Ono Sokki offices in the USA, Canada, China, and worldwide headquarters in Japan.

Note: Specifications and outer appearance are subject to change without prior notice.

Catalog excerpts

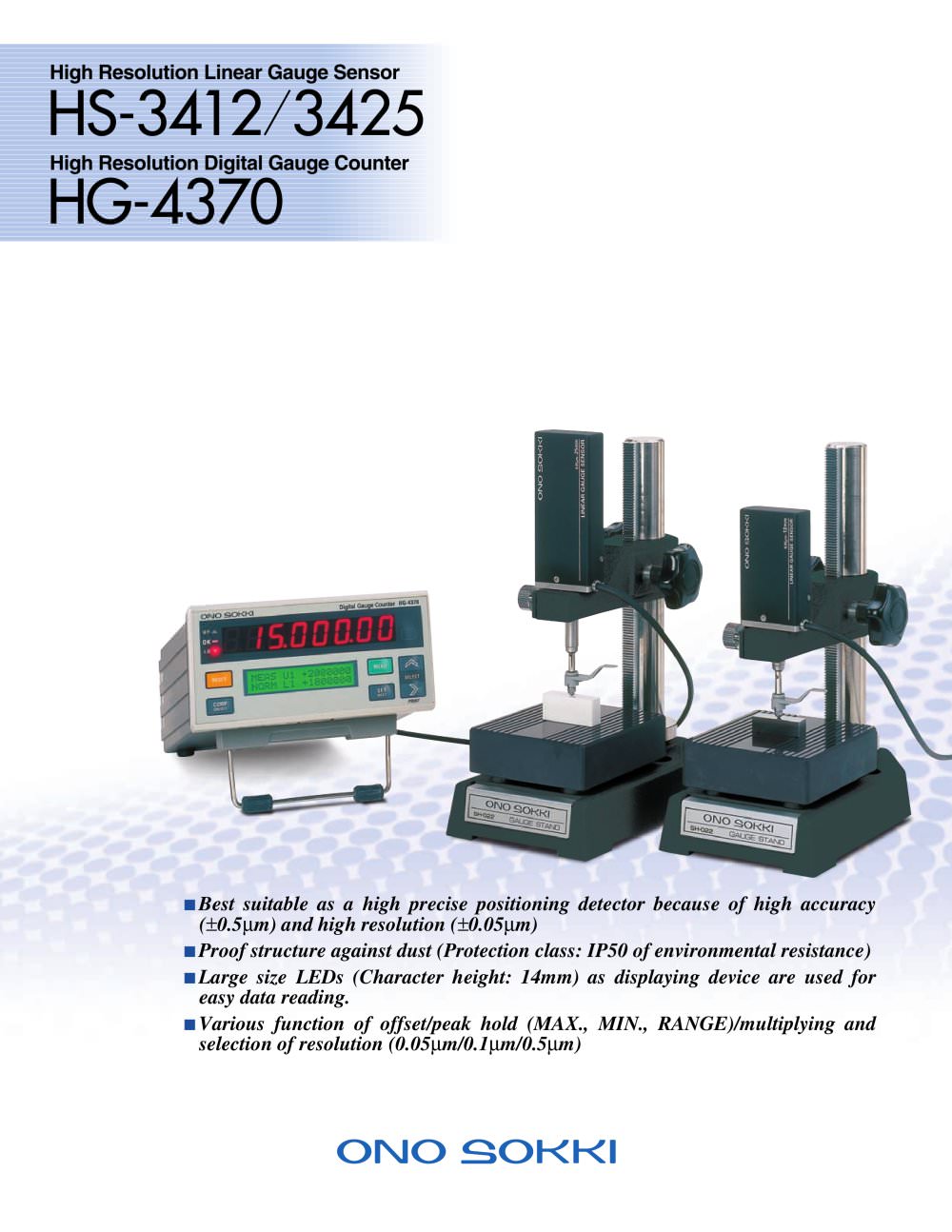

High Resolution Linear Gauge Sensor & Counter | 2 pages -1

High Resolution Linear Gauge Sensor > High Resolution Digital Gauge Counter > ■ Best suitable as a high precise positioning detector because of high accuracy ( 0.5 ѵ m) and high resolution ( 0.05 ѵ m) > ■ Proof structure against dust (Protection class: IP50 of environmental resistance) > ■ Large size LEDs (Character height: 14mm) as displaying device are used for easy data reading. > ■ Various function of offset/peak hold (MAX., MIN., RANGE)/multiplying and selection of resolution (0.05 m/0.1 յ m/0.5 m) >
