Overview
The document provides comprehensive information on high-precision fuel flow meters designed for advanced automobile development and testing. It details various series of detectors and display units, each tailored for specific automotive measurement needs.

Product Series

FP Series: Designed for volumetric flow measurement, suitable for continuous long-term flow rate measurement and can be mounted in vehicles for real-world testing.
FX Series: Utilizes gravity flow measurement, capable of measuring from zero flow with minimal pressure loss, ideal for high-accuracy performance tests.
FZ Series: Focuses on mass flow measurement, unaffected by temperature or pressure changes, and includes density measurement capabilities.
FM Series Display Units: Compatible with FP, FX, and FZ series detectors, providing calculation and display functionalities for various measurement modules.

Key Features

High precision and reliability in measuring fuel consumption, supporting energy conservation efforts in the automotive industry.
Wide measurement range and capability to compensate for errors due to pulsation or backflow.
Simultaneous measurement of temperature and pressure during flow rate measurement.

Technical Specifications

FP Series Detectors: Offer a wide range of flow rate measurements with high accuracy and low pressure loss, suitable for various fuel types including gasoline, light oil, and kerosene.
FX Series Detectors: Provide ultra-wide range measurements starting from zero flow, with a simple configuration that minimizes pressure loss.
FZ Series Detectors: Enable long-term continuous mass flow measurement, unaffected by environmental conditions.

Applications
The flow meters are applicable in bench tests, actual running tests, and high-accuracy performance tests, making them versatile tools for automotive testing and development.

Configuration and Compatibility
The document outlines various system configurations and compatibility options for combining detectors and measurement modules with display units, ensuring flexibility in meeting specific testing requirements.

Specifications
The document outlines the specifications for various flow meters and detectors, including the DF, FX, and FZ series. The DF series are compact, lightweight, vehicle-mounted flow meters designed for use with FP and MF series detectors. They measure instantaneous and cumulative flow rates, elapsed time, temperature, and pressure. The FX series flow detectors measure flow directly from fuel gravity, offering high accuracy and built-in air extraction to prevent air bubble interference. The FZ series uses Coriolis force for high-accuracy mass flow measurement, unaffected by temperature, pressure, or density changes.

Procedures
The document describes the operation of flow meters, including the use of solenoid valves for fluid level control and the measurement process for flow rates. It details how the FX series detectors manage fluid levels and measure flow rates based on differential pressure changes.

Norms and Standards
The document specifies accuracy standards for the flow meters, such as ±0.2% for the FX series and ±0.1% for the FZ series. It also outlines the operating temperature ranges and pressure limits for each series.

Recommendations
Recommendations include using the FX series for engine performance tests due to its high accuracy and the FZ series for continuous mass flow measurement in mode tests. The document suggests using protective heat-resistant mounting units for the DF series when mounted on vehicle dashboards.

Key Data from Tables and Figures
The document includes specifications for display units, such as the FM-2500/1500, which feature fluorescent display tubes and various measurement parameters. It also provides data on flow rate ranges, accuracy, and pressure limits for different models within each series.

Measurement Systems
The document describes the LPG Mass Flow Rate Detection System and Mass Flow Rate Measurement Systems, highlighting their applications for different fluids like gasoline, light oil, and kerosene. It emphasizes high accuracy and the ability to measure without being affected by temperature, pressure, or density.

Peripheral Devices
Several peripheral devices are mentioned, such as the MF-113 Pressure Increase & Reduction Unit and the MF-015 Automatic Air Extraction Tank. These devices are designed to enhance the functionality of the flow measurement systems by managing pressure and removing air bubbles.

Output Specifications
The document specifies output levels and transmission methods for the FM-2500 and FM-1500 models, including pulse and voltage outputs. It also details memory functions and command inputs for these units.

Installation and Compatibility
Information on compatible detectors and installation guidelines is provided, including dimensional diagrams and connector specifications. The document also includes details on panel mounting fixtures and remote controller options.

Additional Features
The systems offer features like automatic air extraction, bubble-free fuel supply, and continuous measurement capabilities. The document also mentions options for data transmission and storage, ensuring efficient operation and data management.

Catalog excerpts

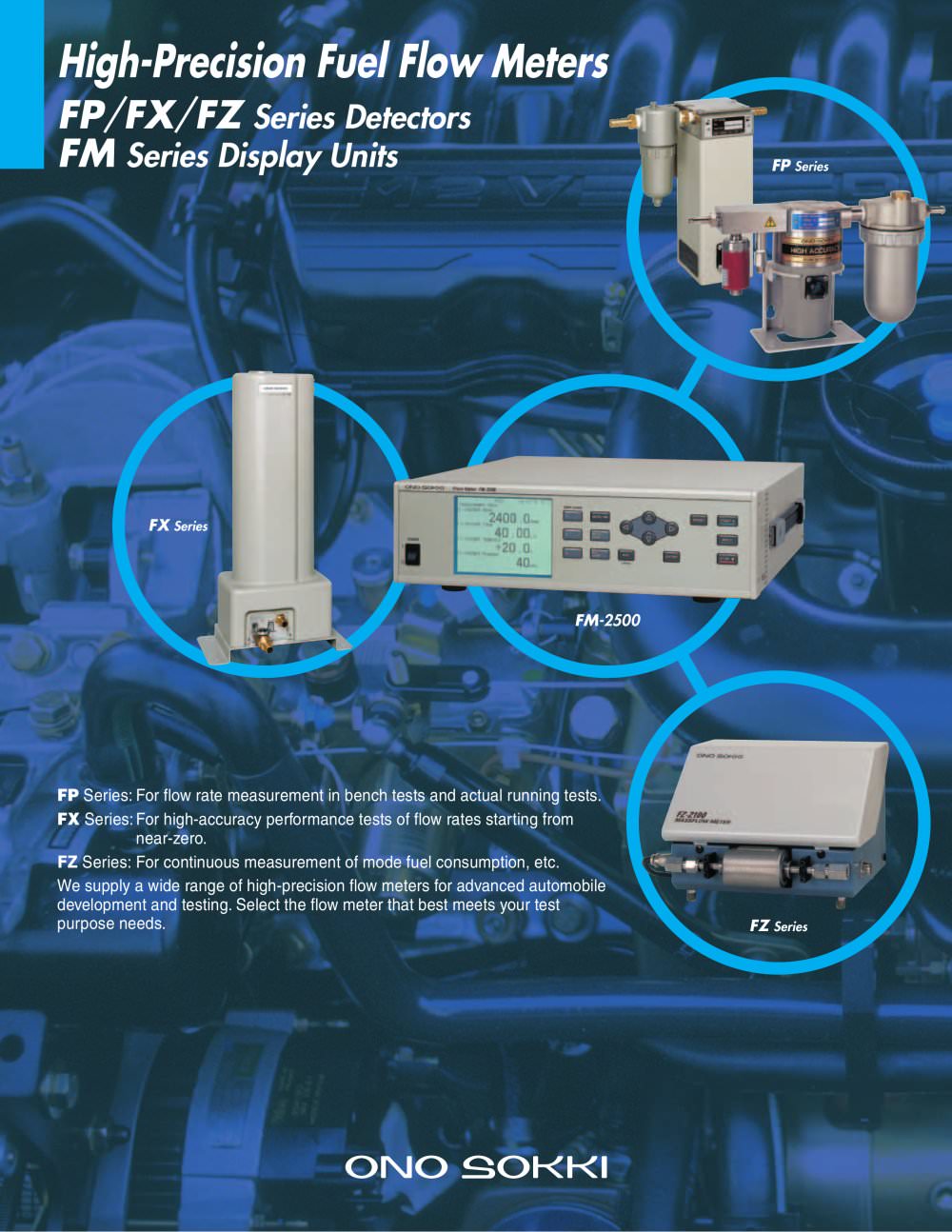

FP Series FX Series FM -2500 FP Series:For flow rate measurement in bench tests and actual running tests. FX Series:For high-accuracy performance tests of flow rates starting from near-zero. FZ Series:For continuous measurement of mode fuel consumption, etc.We supply a wide range of high-precision flow meters for advanced automobile development and testing. Select the flow meter that best meets your test purpose needs. > FZ Series size="-2">
