Digital Linear Gauge Sensor
Product catalog summary
Digital Gauge Counter DG-4140 Specifications:
- Compact design conforming to DIN 72 standard.
- Standard parallel BCD and comparator outputs.
- Operates on 100 to 240 VAC power supply.
Digital Gauge Counter DG-2310 Specifications:
- DIN case dimensions: 144 x 72 mm.
- 2-channel input with 0.5µm resolution.
- Supports addition and subtraction arithmetic functions.
- Includes peak hold function.
- Standard analog/RS-232C outputs, parallel BCD, and comparator outputs.
- Operates on 100 to 240 VAC power supply.
- Resolution: 1µm, Display accuracy: 2µm, Stroke: 10mm, Protection class: IP67.

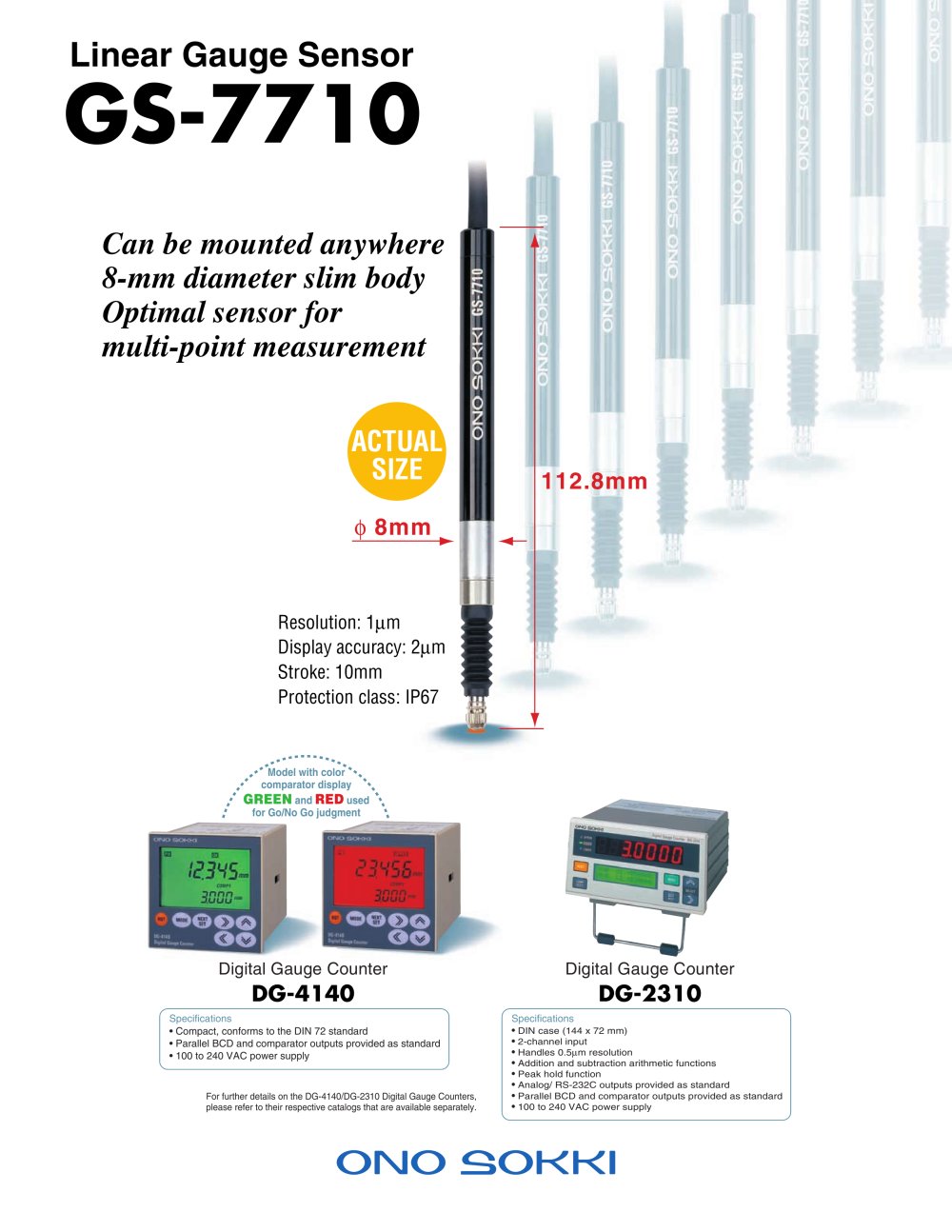

Linear Gauge Sensor GS-7710 Specifications:
- Dimensions: 112.8mm length, 8mm diameter.
- Designed for multi-point measurement with a slim body.
- Protection class: IP67, suitable for harsh environments.
- Measurement range: 10mm, Resolution: 1µm, Display accuracy: 2µm.
- Max response speed: 0.5m/s, Measuring force: 1.08N max.
- Power requirements: 5 VDC ±0.5 V, Power consumption: 60 mA max.
- Signal output: 2-phase rectangular wave, Operating temperature: -10 to +55°C.
- Weight: Approx. 140 g including cable.
Mounting and Usage Recommendations:
- Use Ono Sokki gauge stand or AA-2500 indicator bushing for mounting.
- Recommended tightening torque for M6 screw: max 0.5 Nm.
- Ensure spindle moves smoothly after fixing.
- For nut-mounted types, compatible plate thickness: 9.8 to 12.4 mm, Nut tightening torque: max 0.8 Nm.
Additional Information:
- Models include standard, low measuring force, nut-mounted, and nut-mounted low measuring force types.
- Contact information for Ono Sokki offices in the USA, Canada, China, and worldwide is provided.
- Specifications and appearance are subject to change without notice.
See more
Catalog excerpts
Addition and subtraction arithmetic functions > Peak hold function > Analog/ RS-232C outputs provided as standard > Parallel BCD and comparator outputs provided as standard >
