DG-4000 series

Product catalog summary

Overview: The DG-4000 series digital gauge counters are designed for precise measurement of dimension, thickness, and displacement, compatible with linear gauge sensors. The series includes models DG-4120, DG-4140, DG-4240, and DG-4280, each offering unique features for various applications.

Model Specifications:

DG-4120: Basic model with BCD signal output.
DG-4140: Displays comparator results on a backlit LCD with color indicators (Green for OK, Red for NG).
DG-4240: Uses LEDs to indicate comparator results (UPPER/OK/LOWER).
DG-4280: Features a 4-step preset function for comparators.

Applications: The series is suitable for step height difference measurement, material thickness measurement, golf ball rank differentiation, and hole depth measurement of molded products, among other applications.

Technical Terms Explained:

BCD (Binary-Coded Decimal): A binary representation of decimal numbers using four bits per digit.
Open Collector (BCD): A circuit configuration for power dissipation, often used with sequencer photocoupler inputs.
TTL (Transistor-Transistor Logic): Defines voltage levels for digital signals, with high and low states.
Positive/Negative Logic: Refers to the representation of digital signal levels, where positive logic uses '1' for high and '0' for low, and negative logic is the reverse.
Comparator: Compares measured values against set values, with contact and non-voltage contact output types.

Specifications: The digital gauge counters feature a display range of 0.000 to ±99.999 mm, various signal inputs, and outputs including BCD data and polarity. They operate within a temperature range of 0 to 40°C and have specific power supply requirements.

Peripheral Equipment: Optional accessories include BCD cables, power cables, and printing paper. The DG-2310 model offers additional features like dual-channel input, various output signals, and calculation functions for measuring height differences.

Contact Information: For further inquiries, contact Ono Sokki Technology Inc. in the USA or Ono Sokki Co., Ltd. in Japan. Contact details and URLs are provided for both locations.

Catalog excerpts

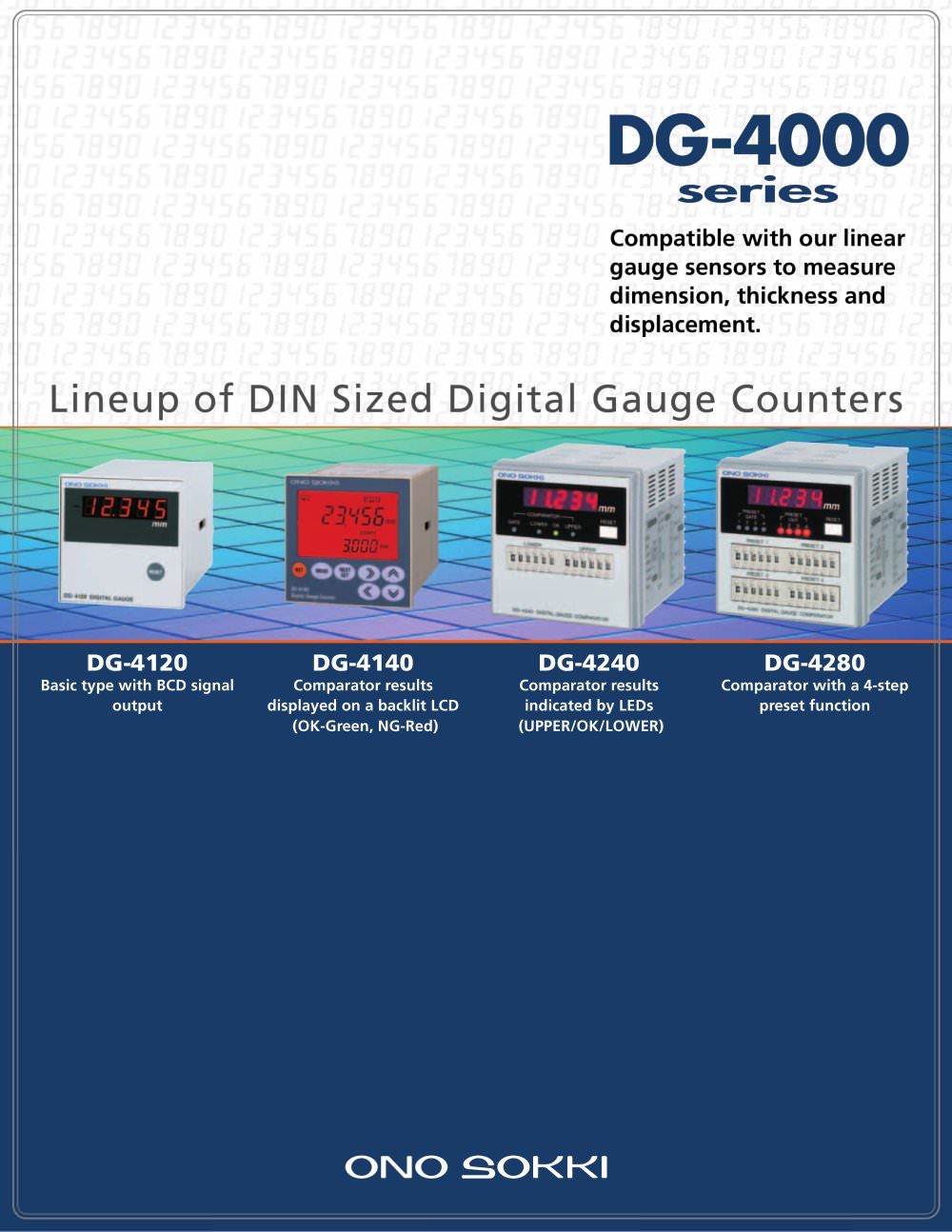

Compatible with our linear gauge sensors to measure dimension, thickness and displacement. > DG-4120 DG-4140 DG-4240 DG-4280 > Basic type with BCD signal output Comparator results displayed on a backlit LCD (OK-Green, NG-Red) Comparator results indicated by LEDs (UPPER/OK/LOWER) Comparator with a 4-step preset function size="-1">

Open the catalog to page 1

ABStep height difference measurement = A BBS/GS seriesNGOK BS/GS series Recommended digital gauge counter: DG-4140/4240/4280 (for selection) DG-2310 (for measuring the step height difference)Recommended digital gauge counter: DG-4000 series > AB 100Kg Thickness measurement = A + BWith a 1 kg load as the zero point, rank differentiation is performed for the amount of change when a 100 kg load is applied. BS/GS series Zero point at 1 kg Golf ball BS/GS series Recommended digital gauge counter: DG-2310 Recommended digital gauge counter: DG-4000 series > Short for Binary-Coded Decimal, a format for...

Open the catalog to page 2
