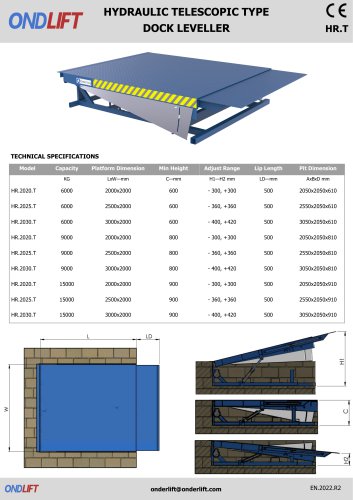

Technical Specifications
The document outlines the specifications for the Hydraulic Telescopic Type Dock Leveller by OndLift. The models vary in capacity, platform dimensions, minimum height, adjustment range, lip length, and pit dimensions. Capacities range from 6000 kg to 15000 kg, with platform dimensions from 2000x2000 mm to 3000x2000 mm. The adjustment range varies by model, with a lip length of 500 mm across all models.

Standard Specifications
The dock leveller operates on a 3 Phase—400V/50Hz, 1.1 KW power supply and is painted in Blue (5015). It features a non-slip pattern steel plate with a thickness of 6 mm and a telescopic lip length of 500 mm with a thickness of 12.7 mm. The dynamic load capacity is 6 tons, and the static load capacity is 13 tons. It includes a laminated dock bumper, electrostatic powder-coated paint, enclosed tubular hinge, two hydraulic cylinders, high-pressure steel wire braided hose, emergency stop function, maintenance support bar, and an IP55 wall-mounted control box with Schneider electrical components. The operation temperature ranges from -30 to +60°C.

Options / Accessories
Available options include painting in selected RAL colors, hot-dip galvanizing, door/leveller interlock, protective curtain under the telescopic lip, special lip dimensions, tapered telescopic lip, and connections for wheel chocks and traffic lights.

Contact Information
Factory: Organize Sanayi Bolgesi 2004 Cad. No: 4, Turgutlu/Manisa/TURKEY
Showroom: İmes San. Sit. C.302 Sk. No:13, Y.Dudullu/Umraniye/Istanbul/TURKEY
Tel: 0090 236 332 5050
Email: [email protected]

Note: Product specifications are subject to change without notice, and all productions comply with CE standards.
