Overview: This document provides comprehensive information on accessories for standard sensors, including photoelectric, inductive, and capacitive sensors. It details various types of cable connectors, extended wiring accessories, mounting brackets, and reflectors.

Cable Connectors:

Types: Includes general purpose, robot cable, detergent resistant, fire retardant, and spatter proof connectors.
Specifications: Available in M8 and M12 sizes with 3, 4, or 5 pins. Materials include brass, zinc diecast, and stainless steel, with cable options in PVC or PUR.
Features: Some models have LED indicators and are designed for specific sensor types.

General Purpose Cable Connectors (M8 / M12):

Model Number Legend: Explains the coding system for identifying connector types and specifications.
Ordering Information: Provides detailed descriptions and specifications for various connector models.

Detergent Resistant Models:

Specifications: Includes pin assignments, rated current and voltage, degree of protection (IP67), and ambient temperature range.

M12 Extended Wiring and Robot Cable Connectors:

Model Number Legend: Details coding for identifying connector types and specifications.
Specifications: Includes rated current, voltage, contact resistance, insulation resistance, dielectric strength, and degree of protection.

XS2 and XS3 Connectors:

Specifications: Includes rated current, voltage, contact resistance, insulation resistance, dielectric strength, and degree of protection.
Materials and Finish: Describes materials used for contacts and fixtures.

Precautions:

Correct Use: Guidelines for proper connection and disconnection of connectors.

Connector Handling and Installation Guidelines:

Ensure connectors are free from metal dust and power before connecting or disconnecting.
Hand-tighten thread brackets within a torque of 0.3 to 0.4 N·m.
Fully insert S8 snap-in models to maintain protection.

Degree of Protection:

Connectors are not fully watertight or oil-resistant.
Secure connectors in environments with vibration or shock.

Storage Recommendations:

Avoid storing connectors in dusty, humid, or gas-exposed environments.

Specifications and Features:

M12 I/O connector terminal boxes are available with 4, 6, or 8 contacts, rated at 4 A per port and 10 to 30 V DC, with IP67 protection.

Materials and Ratings:

Connectors are made from materials like brass, PBT resin, and rubber.

Accessories:

Various mounting brackets, protective covers, and adjustment aids are available.

Photoelectric Sensors and Accessories:

Specifications: Lists different models of photoelectric sensors and accessories, specifying housing materials and features.
Mounting Options: Describes various mounting types, including side and back wall mounting, surface mounting, and telescope mounting.
Accessories: Includes precision detection slit covers, polarizing filters, and adjustment aids.
Reflectors: Categorized by size and application, with specifications for general-purpose, high-precision, and harsh environment reflectors.

Conclusion: The document serves as a comprehensive guide for selecting and installing photoelectric sensors and their accessories, emphasizing the importance of choosing the right model and mounting type for specific applications.

Catalog excerpts

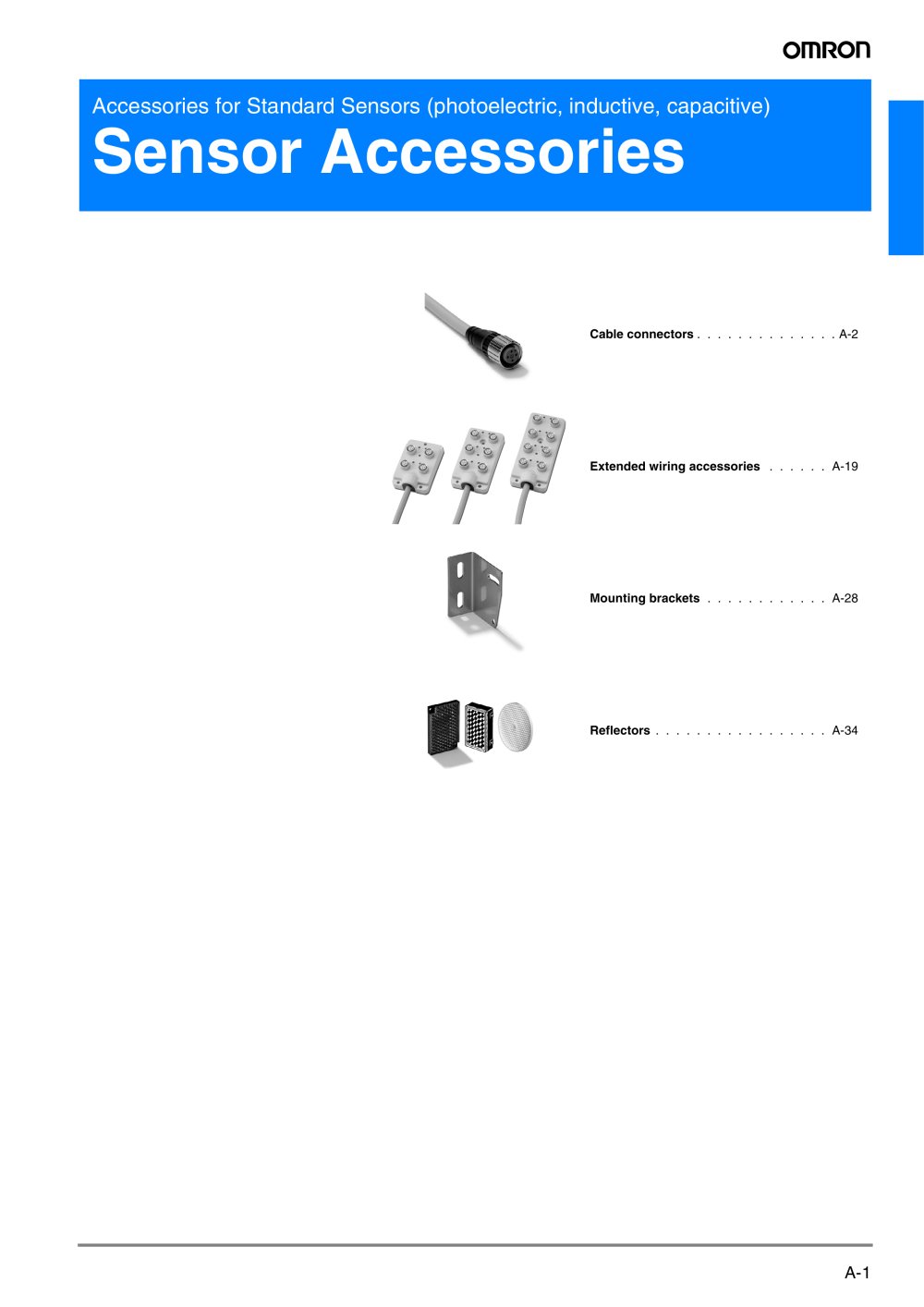

Cable connectors . . . . . . . . . . . . . . A-2 Extended wiring accessories . . . . . . A-19 Mounting brackets . . . . . . . . . . . . A-28 Reflectors . . . . . . . . . . . . . . . . . A-34 >

Open the catalog to page 1

Product group Cable Connectors Type General purpose (screw) General purpose (snap) General purpose - extended wiring small size (screw or snap) @ -M3, E2E small diameter, E2EL, E2C-EDAPhotoelectric: E3Z, E3G-L1/L3, E3C, E3XAll sensors with M8-junction connec- tors -M3J Order referenceY92E-M08Y92E-M12Y92E-MS08XS2F- @ -M5, E2A- @ -AXS3F- @ -A Inductive: E2A- @ -M3, E2E small diameter, E2EL, E2C-EDAPhotoelectric: E3Z, E3G-L1/L3, E3C, E3XSee Y92E-M12 plus AC 2-wire types: E2E- @ -M5, E2A- @ -M3, E2E small diameter, E2EL, E2C-EDAphotoelectric: E3Z, E3G-L1/L3, E3C, E3X All sensors with M8-junction...

Open the catalog to page 2

Y92E-M08 @ -L > *a O-Ring O-ring Y92E-M08 @ -LED-L > B Betriebsanzeige grn operation indicator greenF Funktionsanzeige gelb function indicator yellow*a O-Ring O-ring Y92E-M12 @ -L > *a O-Ring O-ring *b Schutzschlauchmontage hose mounting

Open the catalog to page 6

7.Connections Use this model number legend to identify products from their model number. When ordering, use a model number from the table in Ordering Information. A: Brown --- --- Blue (for DC)B:--- --- Brown Blue (for AC)C:Brown --- Blue Black8: Brown White Blue Black (for DC) 9: Brown White Blue Black (for AC) G: Brown White Blue Black Gray > 1.Type F: Connector connected to cable, socket on one cable end 8.Connectors on One End/Both Ends Pin No.1234Pin No.12345 2.AC/DC (Mating Section Form) 0: One end 3.Connector Poles A: For AC D: For DC 9.Cable Specifications 4: 4 poles5: 5 poles A: Standard...

Open the catalog to page 8

Standard cableVibration-proof robot cable Item XS2F- @ 42 @ - @@ 0-AXS2F- @ 42 @ - @@ 0-R > Two-core model Three-core modelFour-core model >

Open the catalog to page 11

M12 male screwXS2Z-11M12 XS2 M12 x 1.0 female screw (thread bracket)M12XS2Z-12 The Water-resistive Cover ensures IP67. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49Nm to tighten the Water-resistive Cover. > Suitable connector Model Minimum order Material Model Mounting portion XS2Z-1150Brass/nickel platedXS2RM12 male screwXS2Z-12XS2R/XS2F/XW3BM12 female screw (thread bracket) > Note:Orders are accepted in multiples of the minimum order. XS2Z-13 M12 male screw The Dust Cover is for dust prevention and does not ensure IP67 degree of...

Open the catalog to page 13

Rated current 1 A Rated voltage 125 VDC Contact resistance 40 M Ω max. (20 mV max., 10 mA max.) (See note 1.) Insulation resistance 1,000 M Ω min. (at 500 VDC) > XS3 Dielectric strength 1,000 VAC for 1 min (leakage current: 1mA max.) (See note 2.) Degree of protection IP67 (IEC529) Insertion tolerance 200 times Cable tensile strength 50 N/15 s) Ambient temperature Operating: -25 C to 70 а C > Note:1.The contact resistance of the connector.2.The dielectric strength of the connector. Pin Block PBT resin/light gray or black DC Contacts Brass/nickel base, 0.4- m gold plating Thread bracket (M8)Shell...

Open the catalog to page 15

Refer to Correct Use for precautions for individual products. > The M8/S8 Sensor I/O Connectors use the following lead wire col-ors. ՕThe XS3 and XS2 Sensor I/O Connectors cannot be connected toeach other.When using Sensors with Connectors or Limit Switches, use theSensor I/O Connectors specified in the catalog.ՕDo not connect M8 screw models and S8 snap-in models together,otherwise the proper degree of protection of the Connectors will not be maintained. Model Pin No. 1 2 3 4 DC8-mm-dia. DC4BrownWhiteBlueBlack > Do not impose external force continuously on the joints of pinblocks and covers,...

Open the catalog to page 18

The Dust Cover is for dust prevention and does not ensure IP67. When mounting the Dust Cover to a Connector, be sure to press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover. > Suitable connector Model Material Model Mounting portion XS3Z-13Polyvinyl chloride/redXS3FS8 socketXS3Z-15Polyvinyl chloride/redXS3FM8 socket >

Open the catalog to page 27

Shape Type Housing material Features Mounting type Order reference Applicable Sensors > Accessories General purpose mountingStainless steel (SUS304)3D rotationsurface, side and backwell mounting E39-EL4E3G, E3MC, E3S-A, E3S-C, E3Z E39-EL5E3S-LS, E3S-B, E3T, E3Z, E3CE39-EL6 Side protectioninclination angle adjustmentprotective side wall mountingE39-L118E3T-S >

Open the catalog to page 31

Cat. No. E26E-EN2-03 In the interest of product improvement, specifications are subject to change without notice. >

Open the catalog to page 38
