Fluoroloy® A49

Product catalog summary

Overview: The document is a material datasheet for Fluoroloy® A49, a proprietary custom PTFE material by Omniseal Solutions. It highlights the material's features, benefits, and typical properties.

Features & Benefits:

Gray color, non-abrasive material.
Superior wear and heat resistance.
Recommended for moderate to high-speed dynamic service against soft metals.
Working temperature range: -268°C to +316°C (-450°F to +600°F).

Physical Properties:

Specific Gravity: 2.13-2.18 (ASTM D792).
Hardness: 50-55 Shore D (ASTM D2240).

Mechanical Properties:

Tensile Strength: 22.1 MPa (3,200 psi) (ASTM D1708).
Elongation: 280% (ASTM D1708).
Tensile Modulus: 800 MPa (116,000 psi) (ASTM D638).
Compressive Stress @ 1% Strain: 4.83 MPa (700 psi) (ASTM D695).
Compressive Modulus: 600 MPa (87,000 psi) (ASTM D695).
Deformation under load, 2000 psi & RT: 9.8% (ASTM D621).

Thermal Properties:

Linear Coefficient of Thermal Expansion (Mold Direction): 11.0x10^-5 mm/mm/°C (6.11x10^-5 in/in/°F) (ASTM D696).
Linear Coefficient of Thermal Expansion (Cross Direction): 10.3x10^-5 mm/mm/°C (5.72x10^-5 in/in/°F) (ASTM D696).

Tribological Properties:

Coefficient of Friction: 0.13 (ASTM D3702).

Notes:

All testing is performed at room temperature unless otherwise specified.
Compression Strength was measured at 1% Strain.
Deformation Under Load was tested at 13.8 MPa (2,000 psi) for 24 hours.
The values are intended for reference only and should not be used as a basis for design specifications or quality control.

Trademark: Fluoroloy® is a registered trademark of Omniseal Solutions.

Catalog excerpts

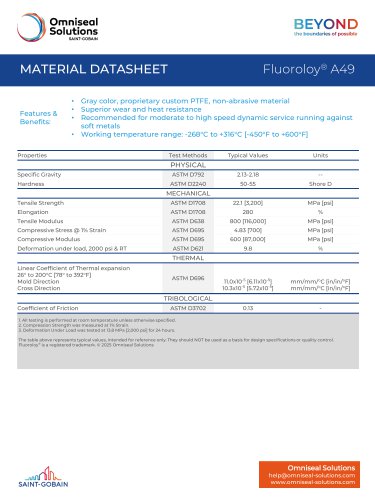

OmnisealSolutions SAINT-GO BAIN BEYOND the boundaries of possible MATERIAL DATASHEET Fluoroloy® A49 Features & Benefits: Gray color, proprietary custom PTFE, non-abrasive material Superior wear and heat resistance Recommended for moderate to high speed dynamic service running against soft metals Working temperature range: -268°C to +316°C [-450°F to +600°F] Omniseal Solutions
