Product catalog summary

Overview

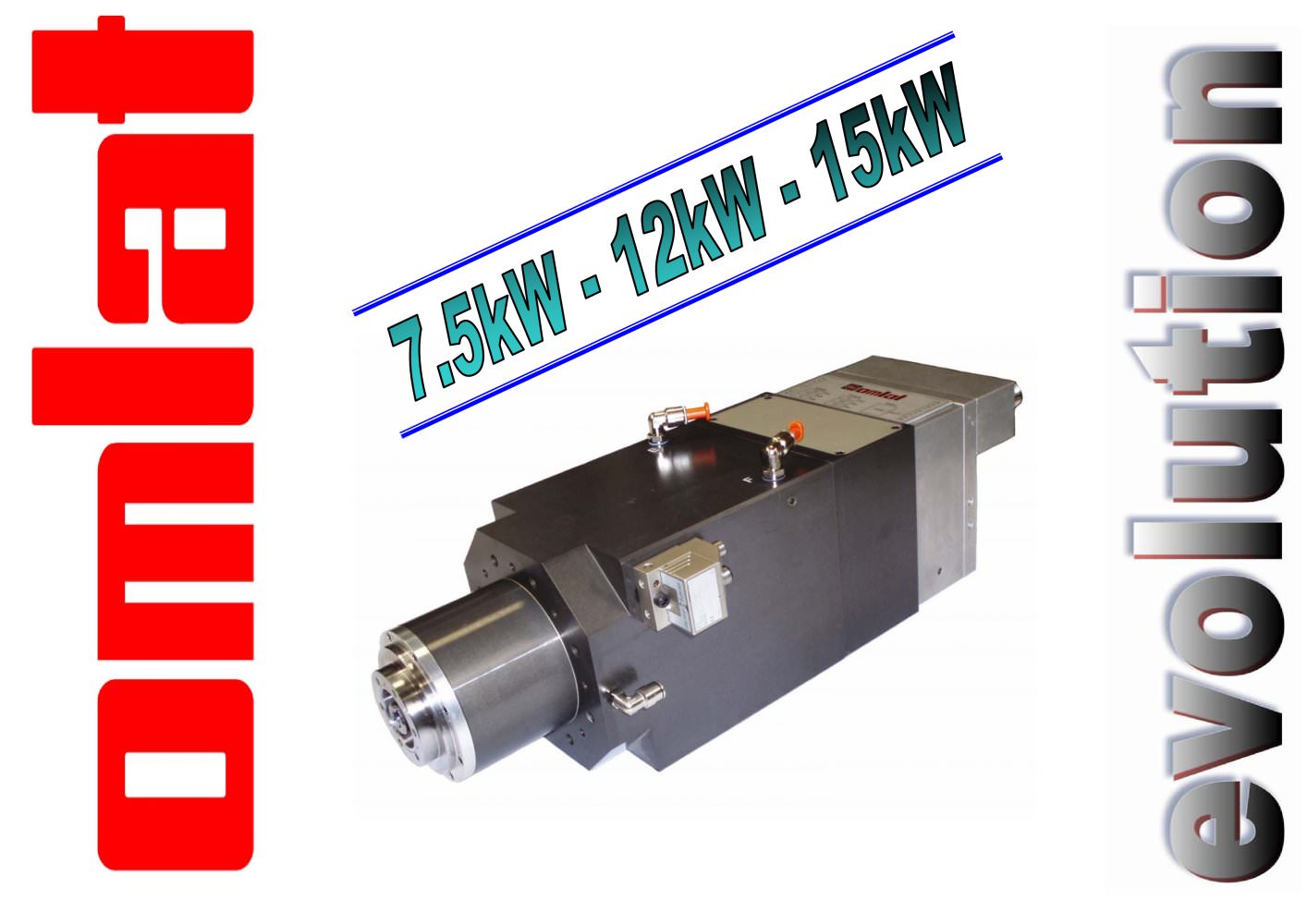

This document provides technical specifications for electrospindles with three different power options: 7.5 kW, 12 kW, and 15 kW. It includes details on tool interfaces, lubrication, motor cooling, and optional features.

Specifications

Tool Interface: HSK F-63 or ISO 30
Lubrication: Grease
Motor Coolant: Liquid
Optional Encoder: Available

Models

EVOLUTION 24:
- Max Torque: 8 Nm, 12.7 Nm, 12 Nm
- Max Speed: 24000 min^-1
EVOLUTION 30:
- Max Torque: 6 Nm, 9.5 Nm, 12 Nm
- Max Speed: 30000 min^-1

Power and Torque Diagrams
The document includes diagrams illustrating the power and torque characteristics for different speeds and frequencies.

Contact Information

OMLAT Italy: Via Carmagnola, 24 - 12040 Ceresole d'Alba (CN), Tel: +39 (0) 0172 575000
OMLAT USA: 2911 Old Higgins Road – Elk Grove Village, Illinois 60007, Tel: +1 – 847-545-9265

Catalog excerpts

33 TTAAGGLLIIEE DDII PPOOTTEENNZZAA IINN UUNN EELLEETTTTRROOMMAANNDDRRIINNOO // 33 DDIIFFF FEERREENNTT PPOOWWEERRSS IINN OONNEE EELLEECCTTRROOSSPPIINNDDLLEE >

Open the catalog to page 3

AATTTTAACCCCHHII UUTTEENNSSIILLII // TTOOOOLL IINNTTEERRFFAACCEE HHSSKK--FF 6633 oorr IISSOO 3300 >

Open the catalog to page 4

Potenza / Power 7.5 kW 12 kW 15 kW Momento Max / Max Torque 8 Nm 12.7 Nm 12 Nm Velocit Max / Max Speed 24000 min > -1 Lubrificazione / Lubrication GRASSO / GREASE Raffreddam. motore/ Motor CoolantLIQUIDO / LIQUID Attacco utensile / Tool interface HSK F-63 or ISO 30 Misuratore angolare / Encoder OPTIONAL > Potenza / Power 7.5 kW 12 kW 15 kW Momento Max / Max Torque 6 Nm 9.5 Nm 12 Nm Velocit Max / Max Speed 30000 min > -1 Lubrificazione / Lubrication GRASSO / GREASE Raffreddam. motore/ Motor CoolantLIQUIDO / LIQUID Attacco utensile / Tool interface HSK F-63 Misuratore angolare / Encoder OPTIONAL...

Open the catalog to page 6

AASSSSEE ӓCCԔ // ӓCCԔ AAXXIISS >

Open the catalog to page 9

OMLAT ITALY > Via Carmagnola, 24 - 12040 Ceresole d'Alba (CN) Tel +39 (0) 0172 575000 - Fax +39 (0) 0172 575003 E-mail: [email protected] OMLAT USA > 2911 Old Higgins Road Elk Grove Village, Illinois 60007 Tel +1 ֖ 847-545-9265 - Fax +1 847-545-9267 E-mail: [email protected] size="-1">

Open the catalog to page 12
