Product catalog summary

Introduction

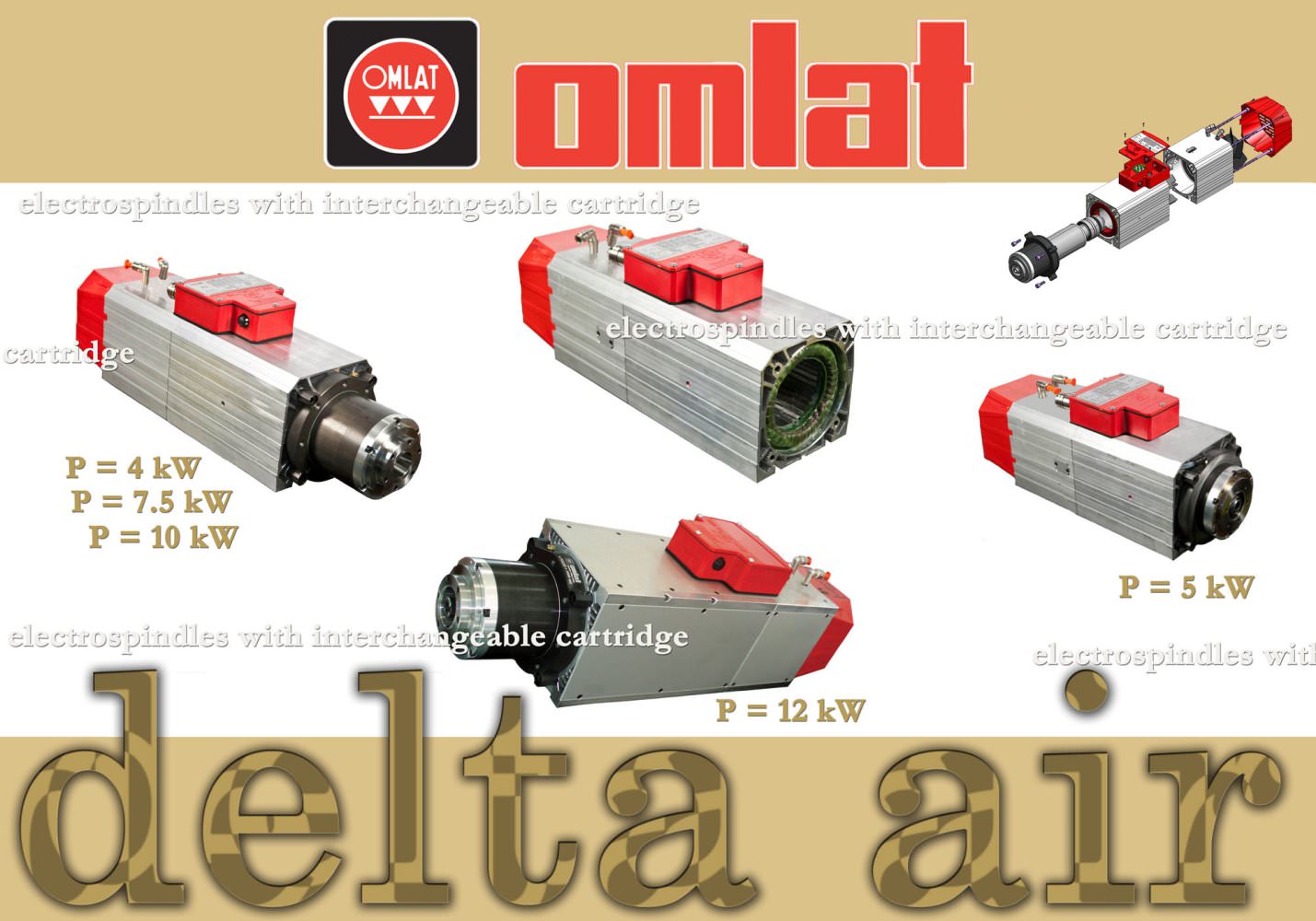

OMLAT has developed a new series of air-cooled electrospindles called DELTA AIR, following the success of their liquid-cooled models for woodworking machines. The DELTA AIR series is designed to reduce costs and simplify maintenance for customers.

Key Features

Cooling System: Air-cooled via an integrated fan, reducing maintenance costs.
Cartridge Replacement: The cartridge, consisting of the nose, shaft, and bearings, can be replaced in just 3 minutes by a maintenance operator without needing an OMLAT technician.
Specifications:
- Electrospindle Nose: Available in long (LN) or short (SN) versions.
- Tool Attachment: Compatible with HSK or ISO standards.
- Power Options: 4kW, 5kW, 7.5kW, 10kW, or 12kW.
- Speed Options: 18,000 rpm or 24,000 rpm.
- Voltage Options: 220V or 380V.
- Poles: 2 or 4.

Optional Features

Long or short nose options.
"C" Axis Flange and Pressurization.
Encoder and "S5" Piston Back Sensor.

Technical Data
The document includes detailed technical data and drawings for various power and configuration options, highlighting the versatility and adaptability of the DELTA AIR series.

Contact Information
OMLAT provides contact details for their offices in Italy and the USA for further inquiries and support.

Catalog excerpts

Dopo aver progettato con ottimi risultati una linea di elettromandrini dedicati alle macchine per la lavorazione del legno, OMLAT ha sviluppato elettromandrini DELTA AIR. Questo nuovo prodotto è raffreddato ad aria tramite una motore proprio. La riduzione dei costi è notevole dell’elettromandrino da parte del cliente sarà molto semplificata. Un’altra peculiarità risiede nella possibilità di poter cartuccia (costituita da naso + albero + cuscinetti anteriori soli 3 minuti. L’operazione di sostituzione può manutentore senza richiedere l’intervento di un Le caratteristiche dell’elettromandrino seguito...

Open the catalog to page 2

For many years OMLAT Spa has been successfully manufacturing electrospindles for wood-working. Today Omlat, thanks to new developed a new series of electrospindles called DELTA AIR. DELTA AIR is cooled by an electro-fan fitted on the electrospindle maintenance costs. The peculiarity however is its design which allows the cartridge (nose, shaft complete with front & back bearings) in only 3 minutes. This process can be done by an operator without Omlat engineer intervention. DELTA AIR main characteristics: -Electrospindle nose (LN – long nose or SN – short nose) -Tool attachment (HSK or ISO) -Power...

Open the catalog to page 3

HSK-F63 LONG NOSE HSK-F63 SHORT NOSE ISO 30 LONG NOSE

Open the catalog to page 12

FRONT BODY REAR BODY NOSE

Open the catalog to page 14

POWER 4kW 5kW 7.5kW 10kW HSK-F 63 ISO 2 poles 4 poles 2 poles 18000 rpm 24000 rpm 18000 rpm 24000 rpm 18000 rpm 24000 rpm LN SN LN SN LN SN LN SN LN SN LN SN Optional : LN - NASO LUNGO / NOSE LONG NASO / NOSE SN - NASO CORTO / NOSE SHORT FLANGIA ASSE “C” / “C” AXIS FLANGE ASSE “C” / “C” AXIS SOLO PER NASO LUNGO / ONLY FOR LONG NOSE PRESSURIZZAZIONE / PRESSURIZATION ENCODER SENSORE “S5” PISTONE INDIETRO / SENSOR “S5” PISTON BACK

Open the catalog to page 17
