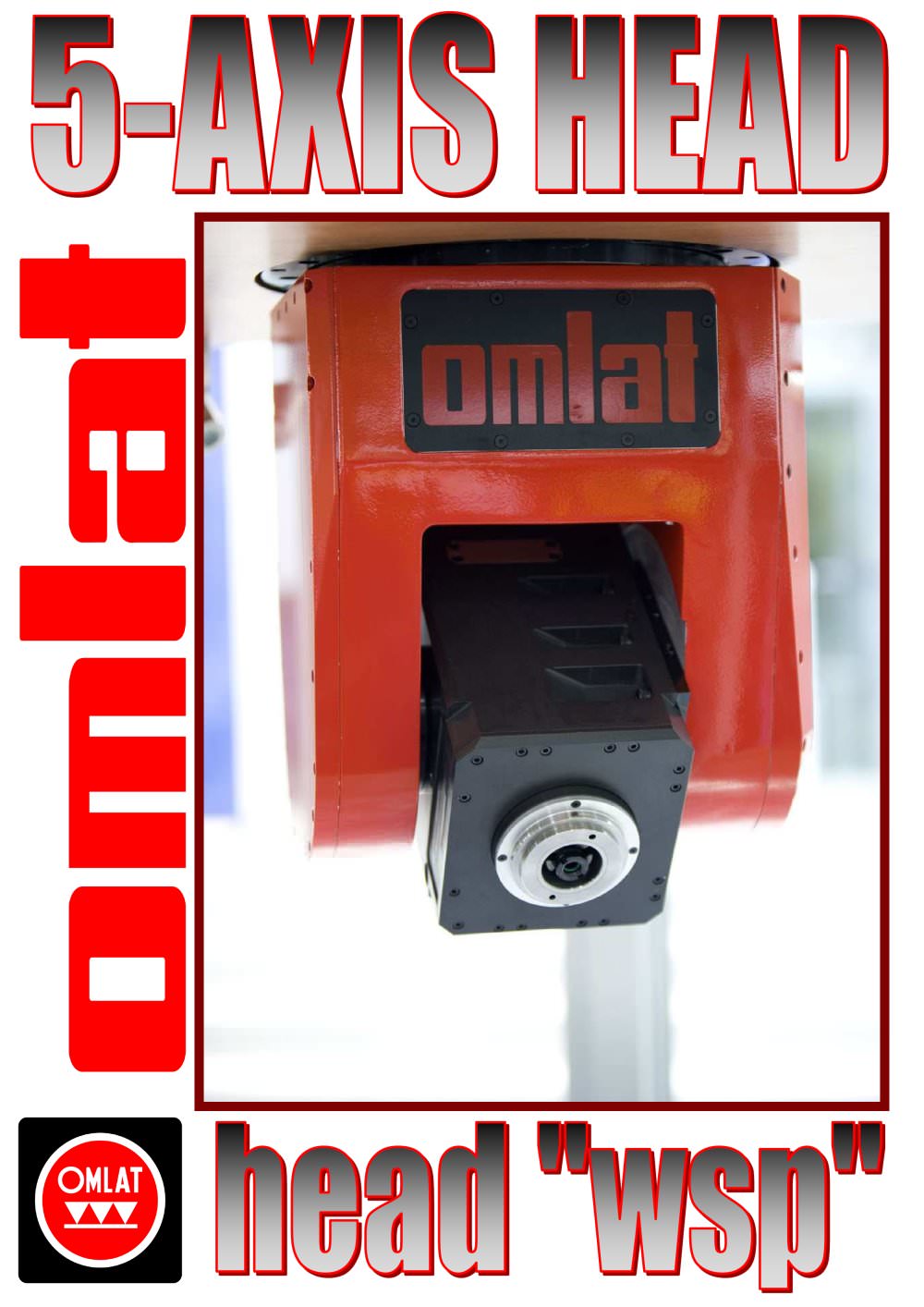

5-axis head

Product catalog summary

Technical Specifications Summary

Head "C" Axis and Axis "A" Specifications:

Axis Rotation: Head "C" axis rotation ranges from ± 185° to ± 220°, while Axis "A" ranges from ± 100° to ± 190°.
Rated Torque: The rated torque for rotation varies, with Head "C" offering 490 Nm to 588 Nm, and Axis "A" providing 200 Nm to 265 Nm.
Position Speed (Continuous): Both axes generally maintain a continuous speed of 90°/sec, with slight variations for specific configurations.
Position Speed (Positioning): Positioning speeds range from 150°/sec to 180°/sec, depending on the axis and configuration.

Electrospindle Specifications:

Power: Electrospindle power options include 12 kW, 15 kW, 16 kW, and 22 kW.
Torque: Torque values range from 9.5 Nm to 26 Nm.
Max Speed: Maximum speeds vary from 18,000 rpm to 28,000 rpm.
Tool Taper: The tool taper is consistently HSK F63 across configurations.
Cooling: The cooling system utilizes liquid cooling for the motor.

Contact Information:

OMLAT Italy: Via Carmagnola, 24 - 12040 Ceresole d'Alba (CN), Tel: +39 (0) 0172 575000, Email: [email protected], Website: www.omlat.com

OMLAT USA: 2911 Old Higgins Road – Elk Grove Village, Illinois 60007, Tel: +1 – 847-545-9265, Email: [email protected], Website: www.omlatusa.com

Catalog excerpts

TESTA - head “C” ASSE axis “A” ASSE axis ROTAZIONE ASSE axis rotation ± 220° ± 190° COPPIA NOMINALE IN ROTAZIONE rated torque into rotation 588 Nm 230 Nm VELOCITÁ MAX (LAVORO) position speed (continous) 90°/sec 90°/sec VELOCITÁ MAX (POSIZIONAMENTO) position speed (positioning) 180°/sec 150°/sec ELETTROMANDRINO electrospindle POTENZA power 16 kW COPPIA torque 17 Nm VELOCITÁ MAX max speed 24000 rpm ATTACCO UTENSILE tool taper HSK F63 RAFFREDDAMENTO cooling motor LIQUIDO liquid

Open the catalog to page 8

TESTA - head “C” ASSE axis “A” ASSE axis ROTAZIONE ASSE axis rotation ± 220° ± 100° COPPIA NOMINALE IN ROTAZIONE rated torque into rotation 588 Nm 200 Nm VELOCITÁ MAX (LAVORO) position speed (continous) 90°/sec 90°/sec VELOCITÁ MAX (POSIZIONAMENTO) position speed (positioning) 180°/sec 180°/sec ELETTROMANDRINO electrospindle POTENZA [kW] power 12 15 22 COPPIA [Nm] torque 9,5 12 26 VELOCITÁ MAX [rpm] max speed 18000 24000 24000 28000 18000 ATTACCO UTENSILE tool taper HSK F63 RAFFREDDAMENTO cooling motor LIQUIDO liquid

Open the catalog to page 14

TESTA - head “C” ASSE axis “A” ASSE axis ROTAZIONE ASSE axis rotation ± 185° ± 110° COPPIA NOMINALE IN ROTAZIONE rated torque into rotation 490 Nm 265 Nm VELOCITÁ MAX (LAVORO) position speed (continous) 95°/sec 90°/sec VELOCITÁ MAX (POSIZIONAMENTO) position speed (positioning) 175°/sec 175°/sec ELETTROMANDRINO electrospindle POTENZA power 16 kW COPPIA torque 17 Nm VELOCITÁ MAX max speed 18000 rpm 24000 rpm ATTACCO UTENSILE tool taper HSK F63 RAFFREDDAMENTO cooling motor LIQUIDO liquid

Open the catalog to page 19

OMLAT ITALY Via Carmagnola, 24 - 12040 Ceresole d'Alba (CN) Tel +39 (0) 0172 575000 - Fax +39 (0) 0172 575003 E-mail: [email protected] www.omlat.com www.directindustry.it/tab/omlat.html OMLAT USA 2911 Old Higgins Road – Elk Grove Village, Illinois 60007 Tel +1 – 847-545-9265 - Fax +1 – 847-545-9267 E-mail: [email protected] www.omlatusa.com

Open the catalog to page 20
