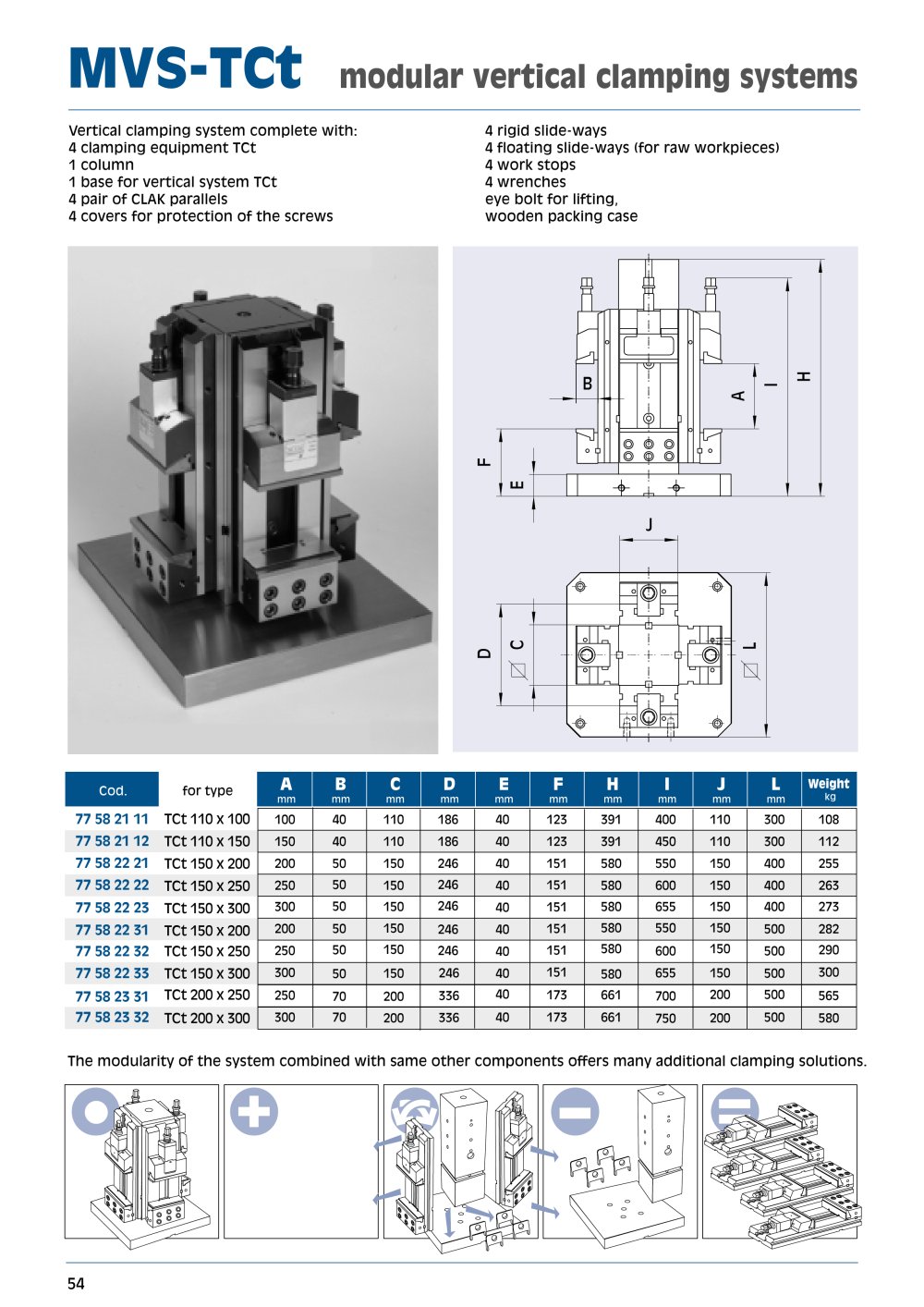

Technical Specifications of Modular Vertical Clamping Systems (MVS-TCt)

Product Codes and Dimensions

The document lists various product codes corresponding to different sizes of the TCt clamping systems, including TCt 110 x 100, TCt 110 x 150, TCt 150 x 200, TCt 150 x 250, TCt 150 x 300, TCt 200 x 250, and TCt 200 x 300.

Each product is characterized by multiple dimensional parameters (in millimeters) labeled A, B, C, D, E, F, H, I, J, and L, which define the physical size and geometry of the clamping components. For example, dimension A ranges from 40 mm to 70 mm depending on the model, while dimension F varies from 391 mm to 661 mm.

Weight and Size Parameters

The weights of the clamping systems are indicated in kilograms, with specific codes associated with each weight. The dimensions and weights vary according to the size and type of the clamping system, reflecting their suitability for different applications.

Components of the Vertical Clamping System

The vertical clamping system is delivered as a complete set including:

• 4 clamping equipment units (TCt type)
• 1 column
• 1 base for the vertical system (TCt)
• 4 pairs of CLAK parallels
• 4 covers for screw protection
• 4 rigid slide-ways
• 4 floating slide-ways designed for raw workpieces
• 4 work stops
• 4 wrenches
• 1 eye bolt for lifting
• Wooden packing case for transport and protection

Modularity and Additional Solutions

The system is modular, allowing combination with other components to create various clamping solutions tailored to specific machining or assembly needs. This modularity enhances flexibility and adaptability in vertical clamping applications.

Summary of Key Parameters

Critical Information and Best Practices

• Ensure correct selection of clamping system size based on dimensional requirements of the workpiece.
• Use the provided covers to protect screws and maintain system integrity.
• Floating slide-ways are recommended for raw workpieces to accommodate irregularities.
• Modularity allows customization; combine with other components for optimized clamping solutions.
• Use the eye bolt for safe lifting and handling of the system.
