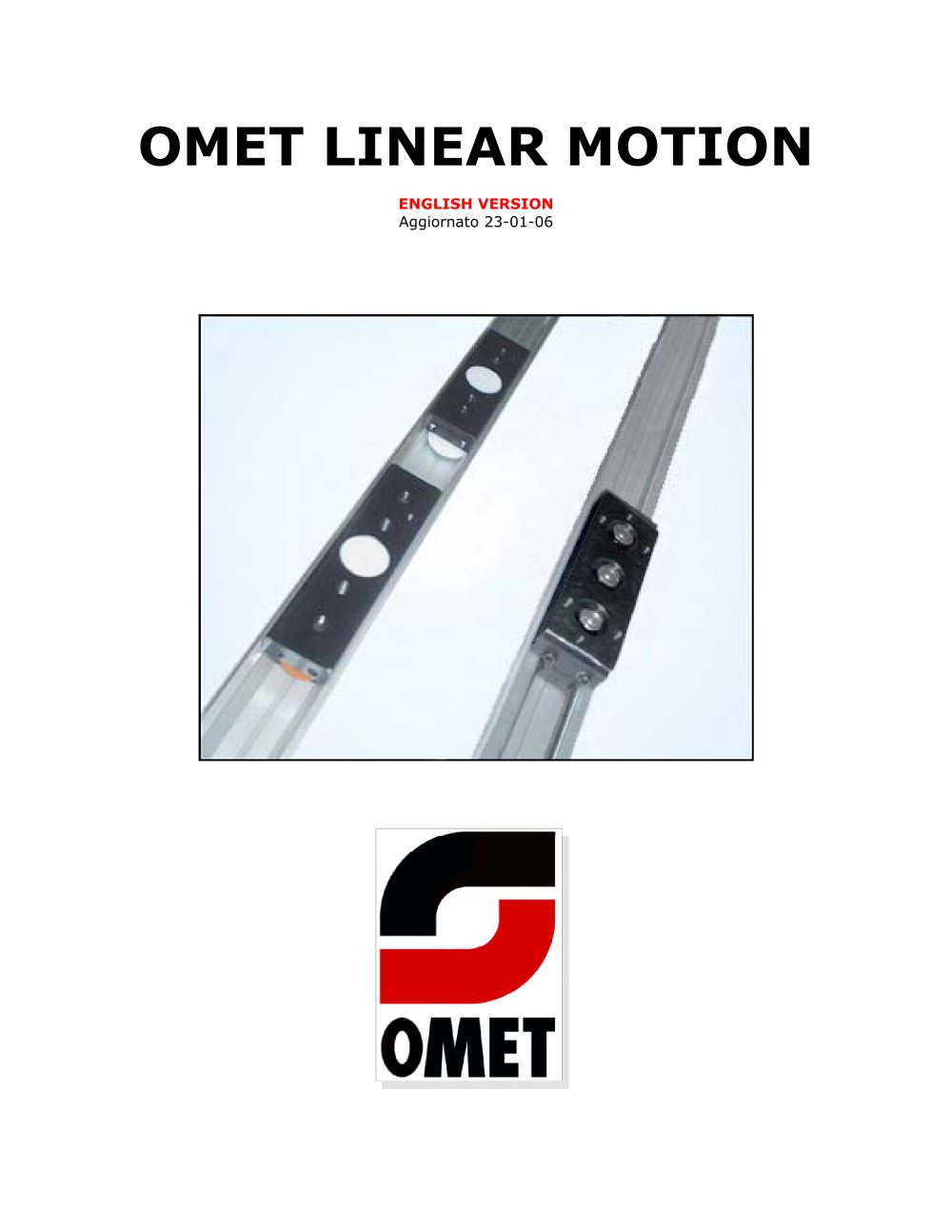

Omet Linear Motion
14Pages

ENGLISH VERSION Aggiornato 23-01-06 >

OMET proposes three ranges of complete modules aiming at satisfying the most varied needs in the field of linear motion. From the most economic to the most performing one, everything is to be evaluated according to the application. The system is composed of a pivot-pin cursor (adjustable central pin) sliding inside a C-shaped rail with inner sliding rails. The prominent features common to all ranges are: ? ASSEMBLY SIMPLICITY All the rails are provided with fastening holes so that the assembler does not have to make any further operation. If the application requires supplementary holes on...

LINEAR SYSTEM COMPOSED OF: ŢȒ Aluminum rail − Cursor with 3 plastic-coated bearings with one ball crown APPLICATIONS Anywhere problems connected with low-speed motions shall be solved economically and where no motion precision is required Example: manual motion in general, light casings, accident-prevention guards, doors, > LINEAR SYSTEM COMPOSED OF: − Aluminum rail − Cursor with 3 plastic-coated bearings with double ball crown APPLICATIONS Motions with higher speeds and precisions Example: light casings, small automations, > LINEAR SYSTEM COMPOSED OF: − Aluminum rail coupled with steel...

POS.DESCRIPTION MATERIAL TREATMENTS > Cursor body Aluminum alloy Black anodizing > Central eccentric pin Steel Burnishing > Screws Steel Burnishing > Spacer Steel Burnishing > Washer Steel Burnishing > Coating Modified polyamide - >

ORDER CODE LENGTHCOUPLING WITH CURSOR T,6001,104B 1036 T,6001,200B 1996 T,6001,296B 2956T,5001 > NOTE: Observe the orientation of the recognition sign with reference to the load F (on the same side where the loads works) > An optimal working is obtained using 4 cursors (see CODE Fr (N) > customized loading tests ). It is not advisable to use the system on applications with axial loads. >

POS.DESCRIPTION MATERIAL TREATMENTS > Cursor body Aluminum alloy Black anodizing > Eccentric central pin Steel Burnishing > Side pins Steel Burnishing > Spacer Steel Burnishing > Washer Steel Burnishing > Bearing 2RS Steel 100Cr6 Hardened ground >

ORDER CODE LENGTH COUPLING WITH CURSOR T,6001,104B 1036 T,6001,200B 1996 T,6001,296B 2956 T,5001 > NOTE: Observe the orientation of the recognition sign with reference to the load F (on the same side where the loads works) > An optimal working is obtained using 4 cursors (see CODE Fr (N) Fa (N) > customized loading tests ). It is advisable to assemble the system so that the loads working on the cursor is of radial type (Fr). >

POS.DESCRIPTION MATERIAL TREATMENTS > Cursor body Aluminum alloy Black anodizing > Eccentric central pin Steel Burnishing > Side pins Steel Burnishing > Washer Steel Burnishing > Knurled lock washer Steel Burnishing > Bearing 2RS double ball crown Steel 100Cr6 Hardening + grinding > Race-cleaners Steel core over-pressed in polyurethane - > Screws Steel Burnishing >

OLM-C 30 mm OLM-C 40 mm Type ORDER CODE Length L1 B H H1 H2 Ib dB Dimensions (mm) Coupling with cursor Pit > ch

POS.DESCRIPTION MATERIAL TREATMENTS > Outer ring Steel 100Cr6 Hardening + grinding > Balls Steel 100Cr6 Hardening + grinding > Inner ring Steel 100Cr6 Hardening + grinding > Dust cover double shielding Plastic or iron > Eccentric or Concentric pin Steel > DIMENSIONS (mm) dA dB Dc De Di A B L L > 1 L > 2 L > 3 L > 4 M Coupling with BEARING CODE: T,0248,AAGG >

? CONSTRUCTION PRINCIPLE OF THE CURSORS > The cursors are provided with 3 pivot-pins. The two side pins are fixed and work on a side of the rail, the central one is eccentric and therefore adjustable. It works on the opposite side of the rail. IMPORTANT > ARRANGE THE CURSOR SO THAT THE SIDE PINS LIE ON THE RAIL SIDE WHERE THE LOAD WORKS! ? SETUP OF THE CURSOR-RAIL CLEARANCE > The eccentricity of the central pin allows adjusting the pre-load and the cursor-rail clearance. PAY THE MAXIMUM ATTENTION DURING THE SETUP PHASE: TOO HEAVY PRE-LOADS DRASTICALLY REDUCE THE LIFE OF THE LINEAR SYSTEM!...

The bearings are life-long lubricated and shielded on both sides. > As to the rail type OLM-A and OLM-B (completely in aluminum) no kind of lubrication is required, since the occurring contact is plastic (bearing coating) on aluminum. For the rails type OLM-C (aluminum rail with steel insertions) it is necessary to have a lubricating film on the bars to avoid a direct contact between the metallic surfaces and protect from corrosion. The lubrication interval depends on a lot of factors among which temperature, speed and use conditions (loads, assembly of the rail so that the cursor slides...

OMET Practical TestӔ laboratory is able to carry out customized tests. The final applications of the cursor-rail system are infinite and very different from one another. − HORIZONTAL, VERTICAL AND OBLIQUE MOTIONS − TYPE OF LOADS (axial, radial, moments) − ACCELERATIONS (taking to dynamic loads due to inertia forces and creating instantaneous very heavy loads) − RAIL ARRANGEMENT, NUMBER OF CURSORS, ŢȒ USE CONDITIONS The above mentioned are only some of the features defining a linear system. Noticeably in a laboratory it is not possible to recreate all these variables; there are testing...

OLM-A SYSTEM RAIL T,6001,. CURSOR T,5001,03AF > Application on casings sliding horizontally. Line-end protection of an automatic machine. OLM-B SYSTEM RAIL T,6001,Ņ. CURSOR T,5001,03AE > Slide of a pneumatic follow-up link for rotary table. OLM-C SYSTEM RAIL T,6002,. CURSOR T,5002,03AB > Application on a large-dimension bulkhead. The closing-opening cycle is frequent and on three shifts. The motion is entrusted to a shaftless cylinder. size="-1">
