Thermowells FTW
1 /1Page
Thermowells FTW
1 /1Page
Catalog excerpts

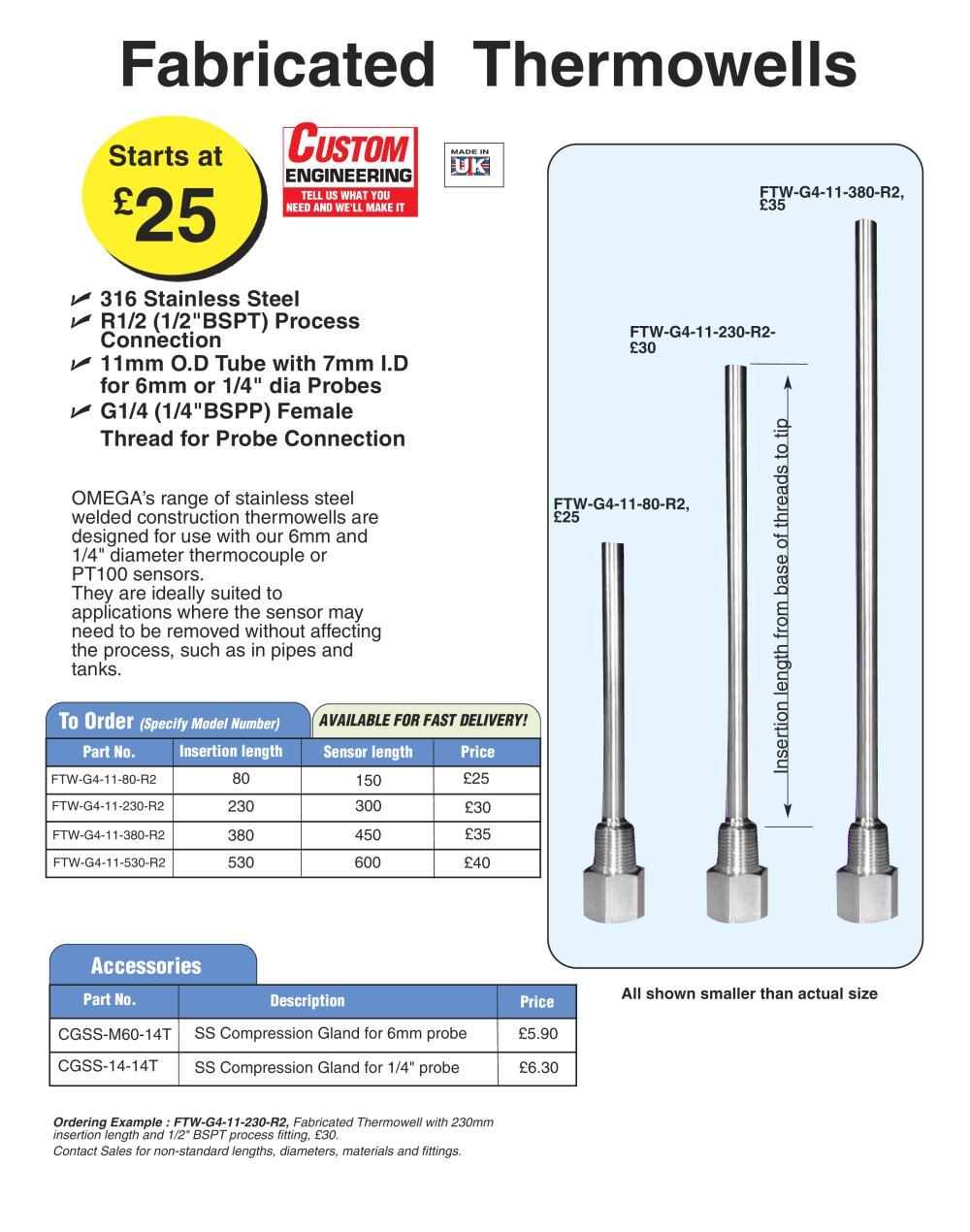

316 Stainless Steel R1/2 (1/2"BSPT) Process Connection 11mm O.D Tube with 7mm I.D for 6mm or 1/4" dia Probes G1/4 (1/4"BSPP) Female Thread for Probe Connection OMEGA’s range of stainless steel welded construction thermowells are designed for use with our 6mm and 1/4" diameter thermocouple or PT100 sensors. They are ideally suited to applications where the sensor may need to be removed without affecting the process, such as in pipes and tanks. FTW-G4-11-80-R2, £25 Fabricated Thermowells UK UK £25 Starts at Ordering Example : FTW-G4-11-230-R2, Fabricated Thermowell with 230mm insertion length and 1/2" BSPT process fitting, £30. Contact Sales for non-standard lengths, diameters, materials and fittings. FTW-G4-11-380-R2, £35 FTW-G4-11-230-R2- £30 All shown smaller than actual size Accessories Part No. Description Price CGSS-M60-14T SS Compression Gland for 6mm probe SS Compression Gland for 1/4" probe £5.90 £6.30 Insertion length from base of threads to tip To Order (Specify Model Number) AVAILABLE FOR FAST DELIVERY! Part No. Insertion length Sensor length Price FTW-G4-11-80-R2 FTW-G4-11-230-R2 FTW-G4-11-380-R2 FTW-G4-11-530-R2 80 230 380 530 150 300 450 600 £25 £30 £35 £40 CGSS-14-14T
