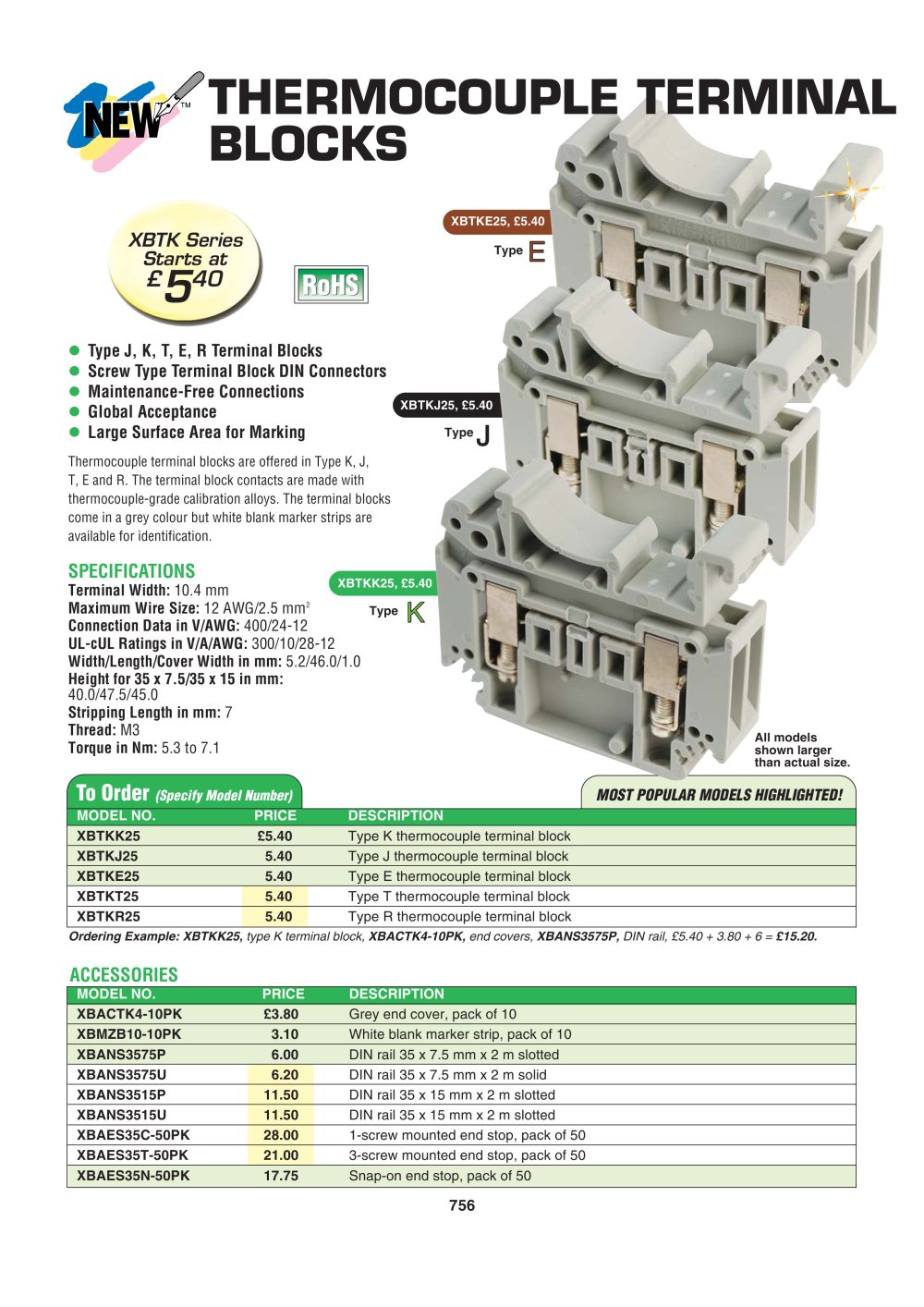

XBTKE25, £5.40 Type THERMOCOUPLE TERMINAL BLOCKS 756 To Order (Specify Model Number) MOST POPULAR MODELS HIGHLIGHTED! Type J, K, T, E, R Terminal Blocks Screw Type Terminal Block DIN Connectors Maintenance-Free Connections Global Acceptance Large Surface Area for Marking XBTK Series Starts at £540 Thermocouple terminal blocks are offered in Type K, J, T, E and R. The terminal block contacts are made with thermocouple-grade calibration alloys. The terminal blocks come in a grey colour but white blank marker strips are available for identification. SPECIFICATIONS Terminal Width: 10.4 mm Maximum Wire Size: 12 AWG/2.5 mm2 Connection Data in V/AWG: 400/24-12 UL-cUL Ratings in V/A/AWG: 300/10/28-12 Width/Length/Cover Width in mm: 5.2/46.0/1.0 Height for 35 x 7.5/35 x 15 in mm: 40.0/47.5/45.0 Stripping Length in mm: 7 Thread: M3 Torque in Nm: 5.3 to 7.1 MODEL NO. PRICE DESCRIPTION XBTKK25 £5.40 Type K thermocouple terminal block XBTKJ25 5.40 Type J thermocouple terminal block XBTKE25 5.40 Type E thermocouple terminal block XBTKT25 5.40 Type T thermocouple terminal block XBTKR25 5.40 Type R thermocouple terminal block MODEL NO. PRICE DESCRIPTION XBACTK4-10PK £3.80 Grey end cover, pack of 10 XBMZB10-10PK 3.10 White blank marker strip, pack of 10 XBANS3575P 6.00 DIN rail 35 x 7.5 mm x 2 m slotted XBANS3575U 6.20 DIN rail 35 x 7.5 mm x 2 m solid XBANS3515P 11.50 DIN rail 35 x 15 mm x 2 m slotted XBANS3515U 11.50 DIN rail 35 x 15 mm x 2 m slotted XBAES35C-50PK 28.00 1-screw mounted end stop, pack of 50 XBAES35T-50PK 21.00 3-screw mounted end stop, pack of 50 XBAES35N-50PK 17.75 Snap-on end stop, pack of 50 Ordering Example: XBTKK25, type K terminal block, XBACTK4-10PK, end covers, XBANS3575P, DIN rail, £5.40 + 3.80 + 6 = £15.20. ACCESSORIES All models shown larger than actual size. XBTKK25, £5.40 XBTKJ25, £5.40 Type Type

Open the catalog to page 1

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
