Thermocouple Probes XTA, XMO, XPA, XIN Series - 1

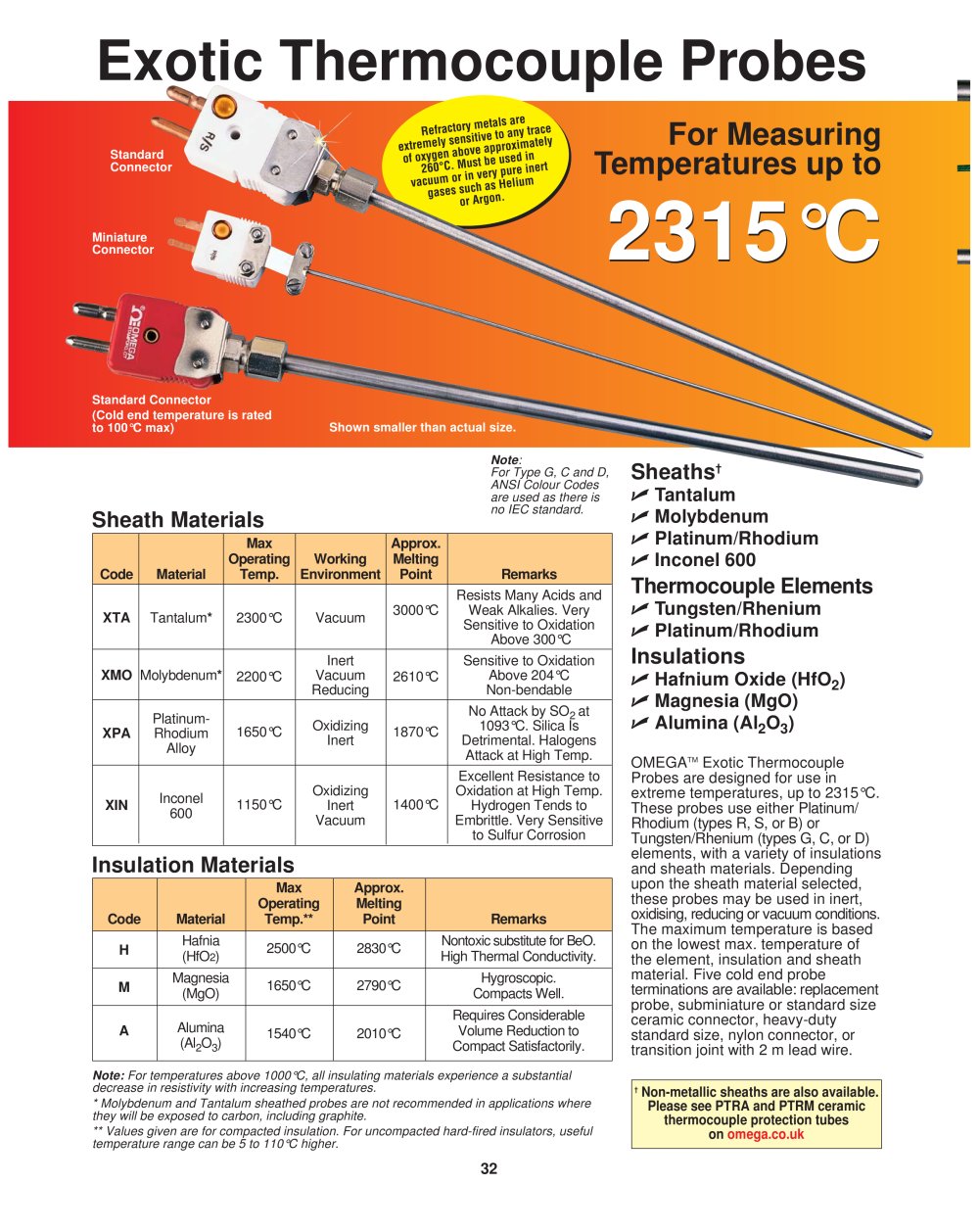

32 Exotic Thermocouple Probes OMEGATM Exotic Thermocouple Probes are designed for use in extreme temperatures, up to 2315°C. These probes use either Platinum/ Rhodium (types R, S, or B) or Tungsten/Rhenium (types G, C, or D) elements, with a variety of insulations and sheath materials. Depending upon the sheath material selected, these probes may be used in inert, oxidising, reducing or vacuum conditions. The maximum temperature is based on the lowest max. temperature of the element, insulation and sheath material. Five cold end probe terminations are available: replacement probe, subminiature or standard size ceramic connector, heavy-duty standard size, nylon connector, or transition joint with 2 m lead wire. Sheaths† Tantalum Molybdenum Platinum/Rhodium Inconel 600 Thermocouple Elements Tungsten/Rhenium Platinum/Rhodium Insulations Hafnium Oxide (HfO2) Magnesia (MgO) Alumina (Al2O3) Max Approx. Operating Working Melting Code Material Temp. Environment Point Remarks Resists Many Acids and XTA Tantalum* 2300°C Vacuum 3000°C Weak Alkalies. Very Sensitive to Oxidation Above 300°C Inert Sensitive to Oxidation XMO Molybdenum* 2200°C Vacuum 2610°C Above 204°C Reducing Non-bendable Platinum- No Attack by SO2 at XPA Rhodium 1650°C Oxidizing 1870°C 1093°C. Silica Is Alloy Inert Detrimental. Halogens Attack at High Temp. Excellent Resistance to Inconel 1150°C Oxidizing 1400°C Oxidation at High Temp. XIN 600 Inert Hydrogen Tends to Vacuum Embrittle. Very Sensitive to Sulfur Corrosion Max Approx. Operating Melting Code Material Temp.** Point Remarks H Hafnia 2500°C 2830°C Nontoxic substitute for BeO. (HfO2) High Thermal Conductivity. M Magnesia 1650°C 2790°C Hygroscopic. (MgO) Compacts Well. A Alumina Requires Considerable (Al2O3) 1540°C 2010°C Volume Reduction to Compact Satisfactorily. Sheath Materials Insulation Materials Note: For temperatures above 1000°C, all insulating materials experience a substantial decrease in resistivity with increasing temperatures. * Molybdenum and Tantalum sheathed probes are not recommended in applications where they will be exposed to carbon, including graphite. ** Values given are for compacted insulation. For uncompacted hard-fired insulators, useful temperature range can be 5 to 110°C higher. Standard Connector Standard Connector (Cold end temperature is rated to 100°C max) Shown smaller than actual size. Miniature Connector † Non-metallic sheaths are also available. Please see PTRA and PTRM ceramic thermocouple protection tubes on omega.co.uk Note: For Type G, C and D, ANSI Colour Codes are used as there is no IEC standard. Refractory metals are extremely sensitive to any trace of oxygen above approximately 260°C. Must be used in vacuum or in very pure inert gases such as Helium or Argon. For Measuring Temperatures up to 2315°C

Open the catalog to page 1

Thermocouple Probes XTA, XMO, XPA, XIN Series - 2

33 To Order (Specify Model Number) Base Price1 Price/ Atmosphere2 150 mm Add’l Calibration Max Temp3 Model Number Length Inch C V. XTA-W5R26-U-062-30-H-*-** £149.00 £18.00 W-5% Re 2300°C XTA-W5R26-U-125-30-H-*-** 211.00 27.00 vs. W-26% Re XTA-W5R26-U-125-24-H-*-** 242.00 31.00 R† V. XTA-P13R-U-062-30-M-*-** CONSULT FACTORY Pt-13% Rh 1475°C XTA-P13R-U-125-24-M-*-** CONSULT FACTORY vs. Pt XTA-P13R-U-062-30-H-*-** CONSULT FACTORY XTA-P13R-U-125-24-H-*-** CONSULT FACTORY C I.V.R. W-5% Re 2200°C XMO-W5R26-U-125-30-H-*-** £163.00 £20.00 vs. W-26% Re XMO-W5R26-U-250-30-H-*-** 178.00 23.50 C I.V.R....
