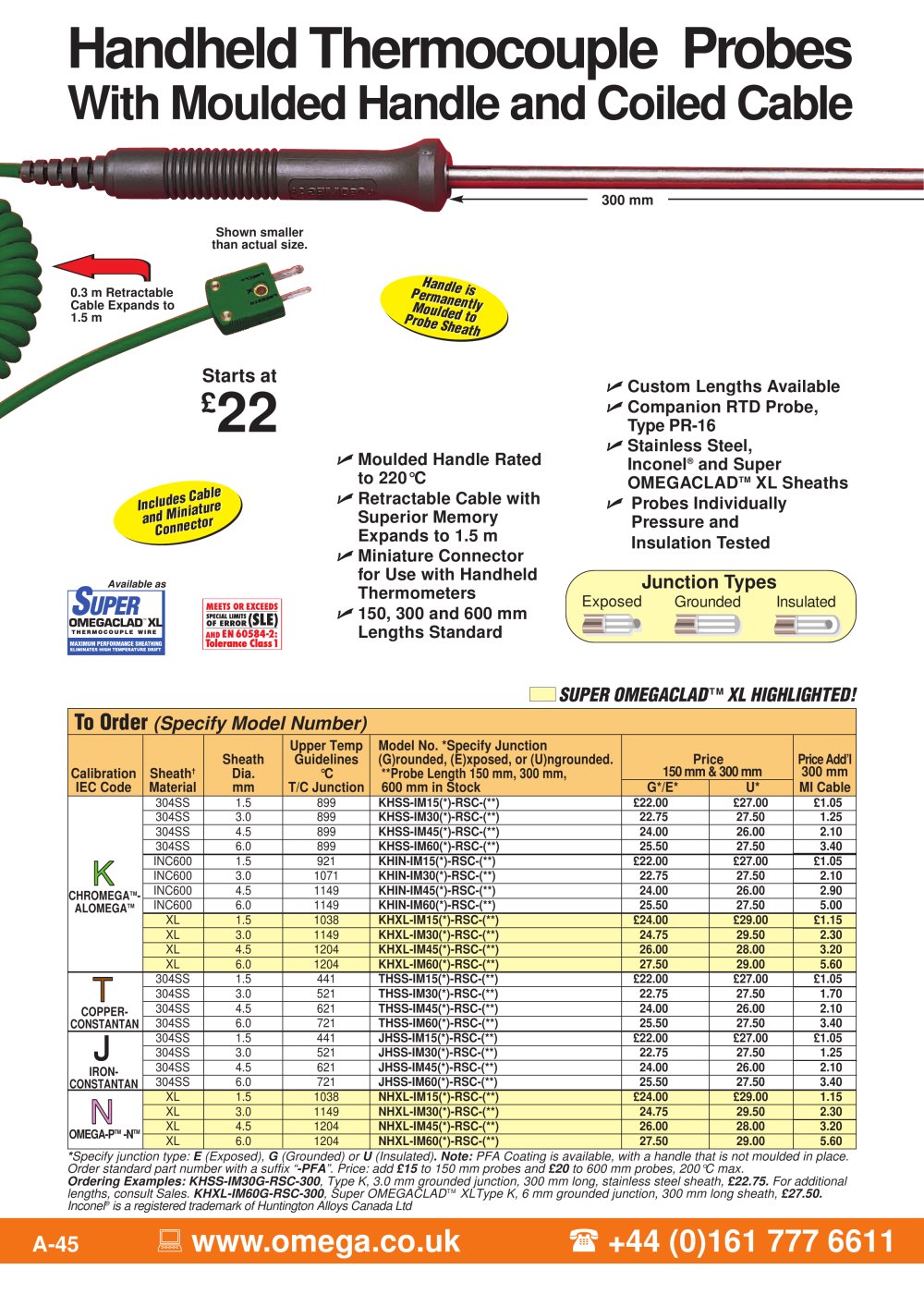

Thermocouple Probes (*)HIN & (*)HSS Series - 1

A-45 :www.omega.co.uk (+44 (0)161 777 6611 *Specify junction type: E (Exposed), G (Grounded) or U (Insulated). Note: PFA Coating is available, with a handle that is not moulded in place. Order standard part number with a suffix “-PFA”. Price: add £15 to 150 mm probes and £20 to 600 mm probes, 200°C max. Ordering Examples: KHSS-IM30G-RSC-300, Type K, 3.0 mm grounded junction, 300 mm long, stainless steel sheath, £22.75. For additional lengths, consult Sales. KHXL-IM60G-RSC-300, Super OMEGACLADTM XLType K, 6 mm grounded junction, 300 mm long sheath, £27.50. Inconel® is a registered trademark of Huntington Alloys Canada Ltd 0.3 m Retractable Cable Expands to 1.5 m Shown smaller than actual size. Starts at £22 Handheld Thermocouple Probes With Moulded Handle and Coiled Cable UMoulded Handle Rated to 220°C URetractable Cable with Superior Memory Expands to 1.5 m UMiniature Connector for Use with Handheld Thermometers U150, 300 and 600 mm Lengths Standard UCustom Lengths Available UCompanion RTD Probe, Type PR-16 UStainless Steel, Inconel® and Super OMEGACLADTM XL Sheaths U Probes Individually Pressure and Insulation Tested 300 mm . TM Available as SUPER OMEGACLADTM XL HIGHLIGHTED! PROBE TIPS CUT AWAY AR Grounded Exposed Ungrounded PROBE TIPS CUT AWAY AR T Grounded Exposed Ungrounded PROBE TIPS CUT AWAY AR T EGxrpouondseed d GrEoxpuonsedded InUnsguroluandteedd Junction Types Includes Cable and Miniature Connector Handle is Permanently Moulded to Probe Sheath To Order (Specify Model Number) Upper Temp Model No. *Specify Junction Sheath Guidelines (G)rounded, (E)xposed, or (U)ngrounded. Price Price Add’l Calibration Sheath† Dia. °C **Probe Length 150 mm, 300 mm, 150 mm & 300 mm 300 mm IEC Code Material mm T/C Junction 600 mm in Stock G*/E* U* MI Cable 304SS 1.5 899 KHSS-IM15(*)-RSC-(**) £22.00 £27.00 £1.05 304SS 3.0 899 KHSS-IM30(*)-RSC-(**) 22.75 27.50 1.25 304SS 4.5 899 KHSS-IM45(*)-RSC-(**) 24.00 26.00 2.10 304SS 6.0 899 KHSS-IM60(*)-RSC-(**) 25.50 27.50 3.40 INC600 1.5 921 KHIN-IM15(*)-RSC-(**) £22.00 £27.00 £1.05 INC600 3.0 1071 KHIN-IM30(*)-RSC-(**) 22.75 27.50 2.10 INC600 4.5 1149 KHIN-IM45(*)-RSC-(**) 24.00 26.00 2.90 INC600 6.0 1149 KHIN-IM60(*)-RSC-(**) 25.50 27.50 5.00 XL 1.5 1038 KHXL-IM15(*)-RSC-(**) £24.00 £29.00 £1.15 XL 3.0 1149 KHXL-IM30(*)-RSC-(**) 24.75 29.50 2.30 XL 4.5 1204 KHXL-IM45(*)-RSC-(**) 26.00 28.00 3.20 XL 6.0 1204 KHXL-IM60(*)-RSC-(**) 27.50 29.00 5.60 304SS 1.5 441 THSS-IM15(*)-RSC-(**) £22.00 £27.00 £1.05 304SS 3.0 521 THSS-IM30(*)-RSC-(**) 22.75 27.50 1.70 304SS 4.5 621 THSS-IM45(*)-RSC-(**) 24.00 26.00 2.10 304SS 6.0 721 THSS-IM60(*)-RSC-(**) 25.50 27.50 3.40 304SS 1.5 441 JHSS-IM15(*)-RSC-(**) £22.00 £27.00 £1.05 304SS 3.0 521 JHSS-IM30(*)-RSC-(**) 22.75 27.50 1.25 304SS 4.5 621 JHSS-IM45(*)-RSC-(**) 24.00 26.00 2.10 304SS 6.0 721 JHSS-IM60(*)-RSC-(**) 25.50 27.50 3.40 XL 1.5 1038 NHXL-IM15(*)-RSC-(**) £24.00 £29.00 1.15 XL 3.0 1149 NHXL-IM30(*)-RSC-(**) 24.75 29.50 2.30 XL 4.5 1204 NHXL-IM45(*)-RSC-(**) 26.00 28.00 3.20 XL 6.0 1204 NHXL-IM60(*)-RSC-(**) 27.50 29.00 5.60 COPPERCONSTANTAN IRONCONSTANTAN CHROMEGATMALOMEGATM OMEGA-PTM -NTM

Open the catalog to page 1

Thermocouple Probes (*)HIN & (*)HSS Series - 2

Economical Off-the-Shelf Special Tip Probes* *Temperature ratings depend on thermocouple type, sheath diameter and environment. Air Probe Exposed element allows airflow for fast response. Rated to 870°C. Available with 4.5 mm diameter and exposed junction only. To order, add suffix “-AP” to model number and add £16.75 to price. Ordering Example: KHSS-IM45E-RSC-300-AP, 300 mm long handle probe, Type K, 4.5 mm OD, stainless steel sheath, exposed junction, air probe tip, £40.75. Penetration Probe (Very Popular) Conical tip, for insertion into soft and semi-frozen material. Available with 4.5...
