Thermocouple Data Logger/Thermometer HH806

Thermocouple Data Logger/Thermometer HH806
3Pages

Catalog excerpts

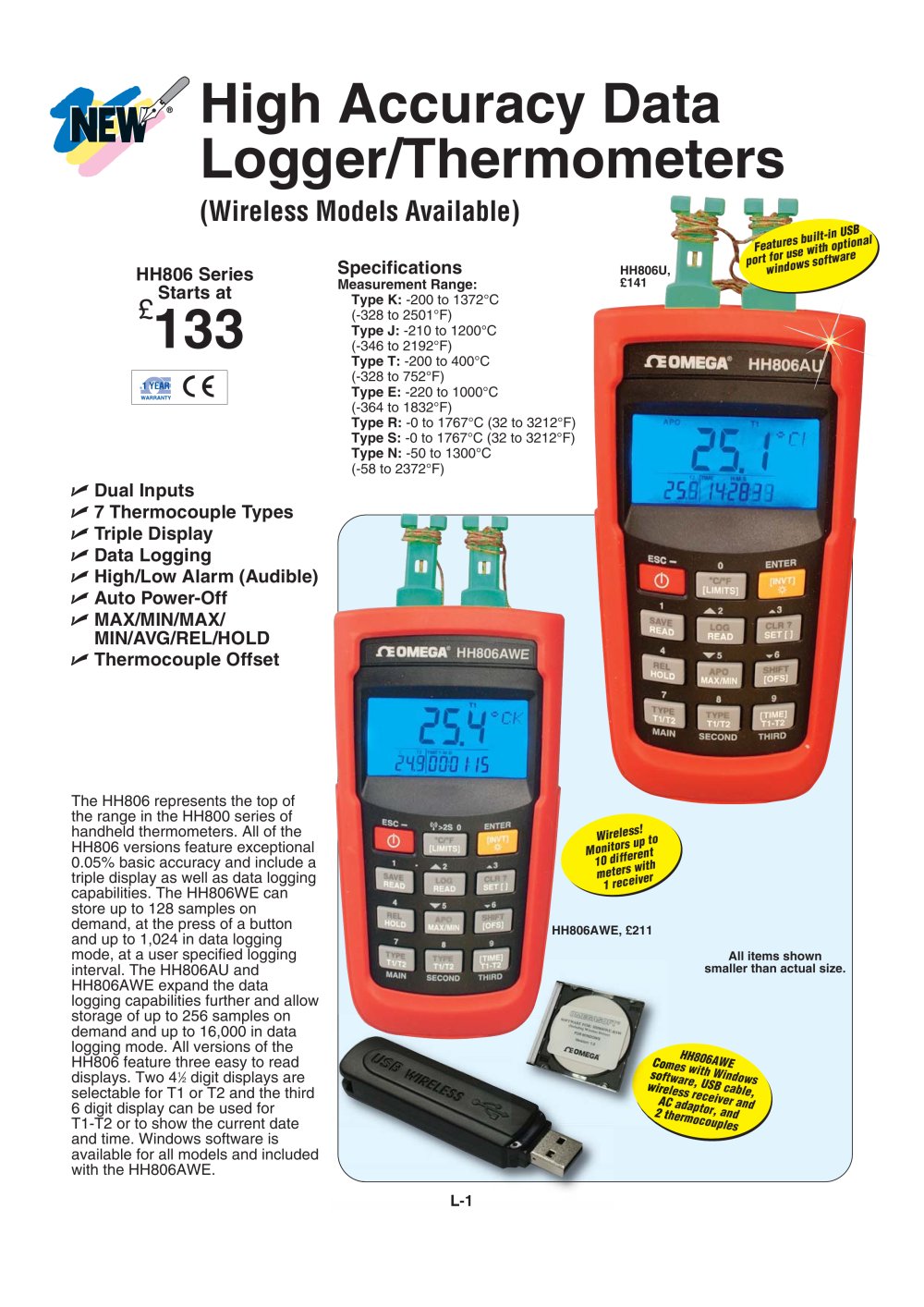

Thermocouple Data Logger/Thermometer HH806 - 1

L-1 High Accuracy Data Logger/Thermometers (Wireless Models Available) HH806 Series Starts at 133 The HH806 represents the top of the range in the HH800 series of handheld thermometers. All of the HH806 versions feature exceptional 0.05% basic accuracy and include a triple display as well as data logging capabilities. The HH806WE can store up to 128 samples on demand, at the press of a button and up to 1,024 in data logging mode, at a user specified logging interval. The HH806AU and HH806AWE expand the data logging capabilities further and allow storage of up to 256 samples on demand and up to 16,000 in data logging mode. All versions of the HH806 feature three easy to read displays. Two 412 digit displays are selectable for T1 or T2 and the third 6 digit display can be used for T1-T2 or to show the current date and time. Windows software is available for all models and included with the HH806AWE. Dual Inputs 7 Thermocouple Types Triple Display Data Logging High/Low Alarm (Audible) Auto Power-Off MAX/MIN/MAX/ MIN/AVG/REL/HOLD Thermocouple Offset HH806AWE, £211 All items shown smaller than actual size. HH806U, £141 Features built-in USB port for use with optional windows software Specifications Measurement Range: Type K: -200 to 1372°C (-328 to 2501°F) Type J: -210 to 1200°C (-346 to 2192°F) Type T: -200 to 400°C (-328 to 752°F) Type E: -220 to 1000°C (-364 to 1832°F) Type R: -0 to 1767°C (32 to 3212°F) Type S: -0 to 1767°C (32 to 3212°F) Type N: -50 to 1300°C (-58 to 2372°F) Wireless! Monitors up to 10 different meters with 1 receiver HH806AWE Comes with Windows software, USB cable, wireless receiver and AC adaptor, and 2 thermocouples £

Open the catalog to page 1

Thermocouple Data Logger/Thermometer HH806 - 2

L-2 L Accuracy: Stated accuracy at 23°C ±5°C, <75% RH Type K/J/T/E: ±(0.05% rdg+0.3°C) -50 to 1372°C ±(0.05% rdg+0.7°C) -50 to -210°C ±(0.05% rdg+0.6°F) -58 to 2501°F ±(0.05% rdg+1.4°F) -58 to -346°F Type N: ±(0.05% rdg+0.8°C) -50 to 0°C ±(0.05% rdg+0.4°C) 0 to 1300°C ±(0.05% rdg+1.6°F) -58 to 32°F ±(0.05% rdg+0.8°F) 32 to 2372°F Type R/S: ±(0.05% rdg+2 0°C to 1767°C ±(0.05% rdg+4 32°F to 3212°F Operating Environment: 0 to 50°C at <70% RH Storage Temperature: -20 to 60°C, 0 to 80% RH with battery removed Battery: 4 x 1.5V “AAA” (included) Dimensions: 160 H x 83 W x 38 mm D (6.3 x 3.3 x...

Open the catalog to page 2

Thermocouple Data Logger/Thermometer HH806 - 3

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
