Thermocouple Connector SMPW-CC Series

Thermocouple Connector SMPW-CC Series
3Pages

Catalog excerpts

Thermocouple Connector SMPW-CC Series - 1

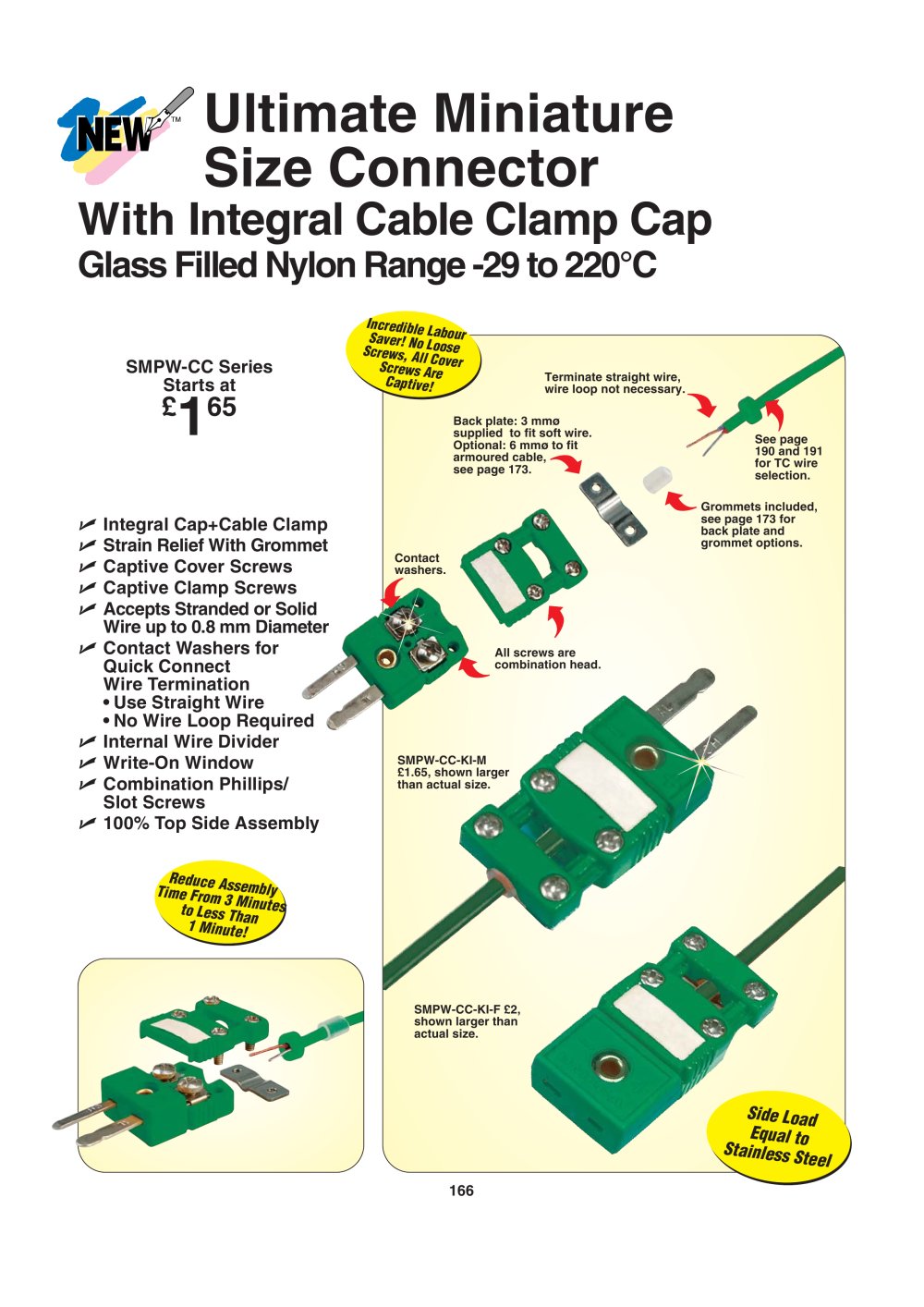

Ultimate Miniature Size Connector With Integral Cable Clamp Cap Glass Filled Nylon Range -29 to 220°C 166 SMPW-CC Series Starts at £165 Integral Cap+Cable Clamp Strain Relief With Grommet Captive Cover Screws Captive Clamp Screws Accepts Stranded or Solid Wire up to 0.8 mm Diameter Contact Washers for Quick Connect Wire Termination • Use Straight Wire • No Wire Loop Required Internal Wire Divider Write-On Window Combination Phillips/ Slot Screws 100% Top Side Assembly Grommets included, see page 173 for back plate and grommet options. All screws are combination head. Terminate straight wire, wire loop not necessary. Incredible Labour Saver! No Loose Screws, All Cover Screws Are Captive! SMPW-CC-KI-F £2, shown larger than actual size. Reduce Assembly Time From 3 Minutes to Less Than 1 Minute! Side Load Equal to Stainless Steel Contact washers. See page 190 and 191 for TC wire selection. SMPW-CC-KI-M £1.65, shown larger than actual size. Back plate: 3 mmø supplied to fit soft wire. Optional: 6 mmø to fit armoured cable, see page 173.

Open the catalog to page 1

Thermocouple Connector SMPW-CC Series - 2

ø2.5 Male Connector Female Connector 12.7 29.57 20.6 2.4 8 3.17 WILL CLAMP FROM 0.08 DIA. WIRE UP TO 5.5 DIA. SOFT OR ARMOURED CABLE 4.8 34.11 25.4 7.1 ø4.9 WIRE ACCESS IN CONNECTOR BODY 8 17 3.17 0.8 167 To Order (Specify Model Number) Compensating Alloy IEC Price Alloy Used in Connector Colour Glass-Filled Nylon Model Number Pair Female Male Code (+) (-) Code Male** Uni-Female (MF)* (F) (M)** CHROMEGATM ALOMEGATM Green SMPW-CC-KI-M SMPW-CC-KI-F £3.65 £2.00 £1.65 Copper Constantan Brown SMPW-CC-TI-M SMPW-CC-TI-F 3.65 2.00 1.65 Iron Constantan Black SMPW-CC-J-M SMPW-CC-J-F 3.65 2.00 1.65...
