Thermistor Probe TJ36-44004 Series
1Pages

{{requestButtons}}

Catalog excerpts

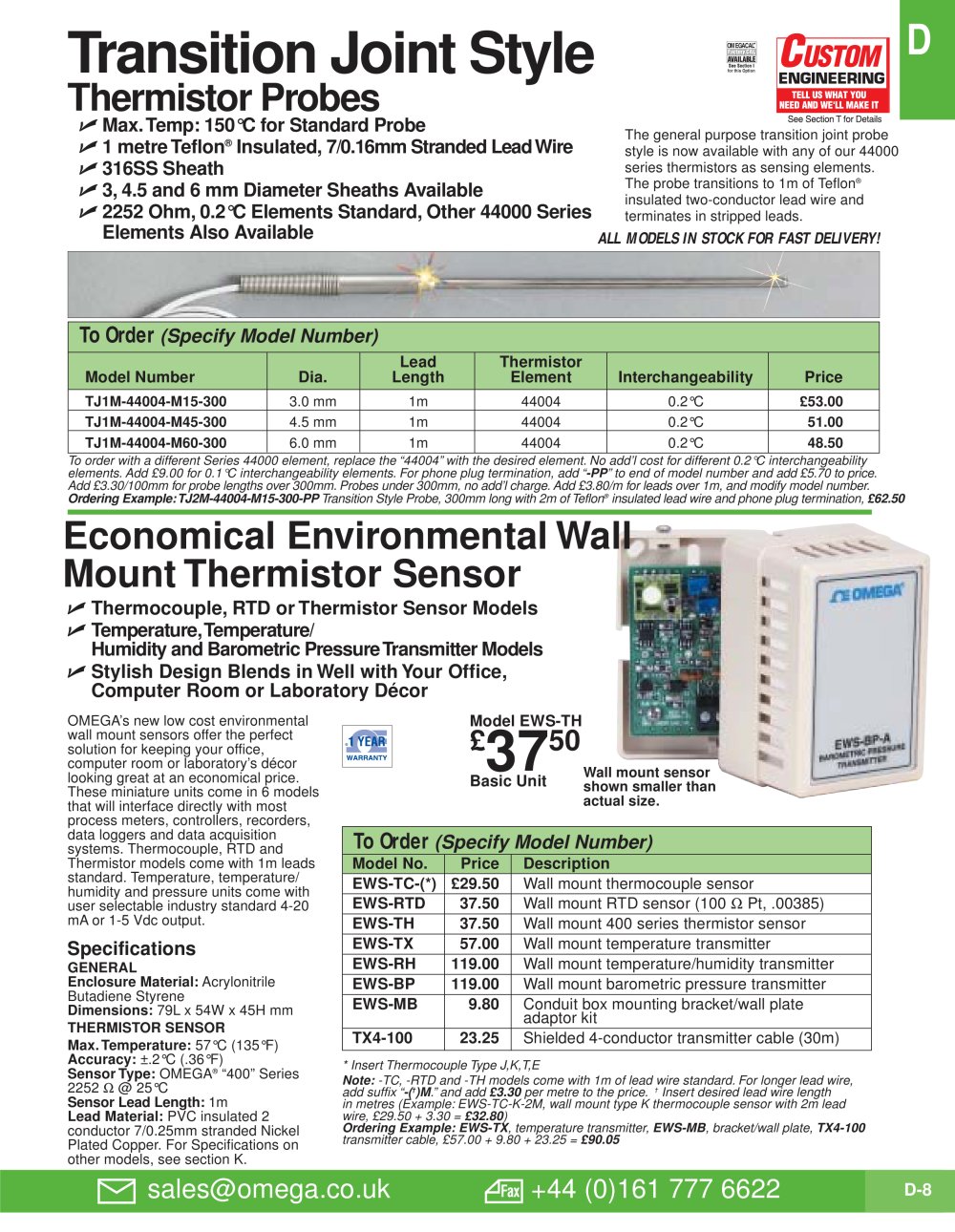

Thermistor Probe  TJ36-44004 Series - 1

OMEGA’s new low cost environmental wall mount sensors offer the perfect solution for keeping your office, computer room or laboratory’s décor looking great at an economical price. These miniature units come in 6 models that will interface directly with most process meters, controllers, recorders, data loggers and data acquisition systems. Thermocouple, RTD and Thermistor models come with 1m leads standard. Temperature, temperature/ humidity and pressure units come with user selectable industry standard 4-20 mA or 1-5 Vdc output. Specifications GENERAL Enclosure Material: Acrylonitrile Butadiene Styrene Dimensions: 79L x 54W x 45H mm THERMISTOR SENSOR Max.Temperature: 57°C (135°F) Accuracy: ±.2°C (.36°F) Sensor Type: OMEGA® “400” Series 2252 Ù @ 25°C Sensor Lead Length: 1m Lead Material: PVC insulated 2 conductor 7/0.25mm stranded Nickel Plated Copper. For Specifications on other models, see section K. * Insert Thermocouple Type J,K,T,E Note: -TC, -RTD and -TH models come with 1m of lead wire standard. For longer lead wire, add suffix “-(†)M.” and add £3.30 per metre to the price. † Insert desired lead wire length in metres (Example: EWS-TC-K-2M, wall mount type K thermocouple sensor with 2m lead wire, £29.50 + 3.30 = £32.80) Ordering Example: EWS-TX, temperature transmitter, EWS-MB, bracket/wall plate, TX4-100 transmitter cable, £57.00 + 9.80 + 23.25 = £90.05 D-8 D sales@omega.co.uk +44 (0)161 777 6622 To Order (Specify Model Number) Model No. Price Description EWS-TC-(*) £29.50 Wall mount thermocouple sensor EWS-RTD 37.50 Wall mount RTD sensor (100 Ù Pt, .00385) EWS-TH 37.50 Wall mount 400 series thermistor sensor EWS-TX 57.00 Wall mount temperature transmitter EWS-RH 119.00 Wall mount temperature/humidity transmitter EWS-BP 119.00 Wall mount barometric pressure transmitter EWS-MB 9.80 Conduit box mounting bracket/wall plate adaptor kit TX4-100 23.25 Shielded 4-conductor transmitter cable (30m) To Order (Specify Model Number) Lead Thermistor Model Number Dia. Length Element Interchangeability Price TJ1M-44004-M15-300 3.0 mm 1m 44004 0.2°C £53.00 TJ1M-44004-M45-300 4.5 mm 1m 44004 0.2°C 51.00 TJ1M-44004-M60-300 6.0 mm 1m 44004 0.2°C 48.50 Transition Joint Style Thermistor Probes Thermocouple, RTD or Thermistor Sensor Models Temperature,Temperature/ Humidity and Barometric Pressure Transmitter Models Stylish Design Blends in Well with Your Office, Computer Room or Laboratory Décor Economical Environmental Wall Mount Thermistor Sensor Wall mount sensor shown smaller than actual size. The general purpose transition joint probe style is now available with any of our 44000 series thermistors as sensing elements. The probe transitions to 1m of Teflon® insulated two-conductor lead wire and terminates in stripped leads. Max.Temp: 150°C for Standard Probe 1 metre Teflon® Insulated, 7/0.16mm Stranded Lead Wire 316SS Sheath 3, 4.5 and 6 mm Diameter Sheaths Available 2252 Ohm, 0.2°C Elements Standard, Other 44000 Series Elements Also Available OMEGACAL L M L for this Option ALL MODELS IN STOCK FOR FAST DELIVERY! Model EWS-TH £3750 Basic Unit To order with a different Series 44000 element, replace the “44004” with the desired element. No add’l cost for different 0.2°C interchangeability elements. Add £9.00 for 0.1°C interchangeability elements. For phone plug termination, add “-PP” to end of model number and add £5.70 to price. Add £3.30/100mm for probe lengths over 300mm. Probes under 300mm, no add’l charge. Add £3.80/m for leads over 1m, and modify model number. Ordering Example:TJ2M-44004-M15-300-PP Transition Style Probe, 300mm long with 2m of Teflon® insulated lead wire and phone plug termination, £62.50

Open the catalog to page 1
