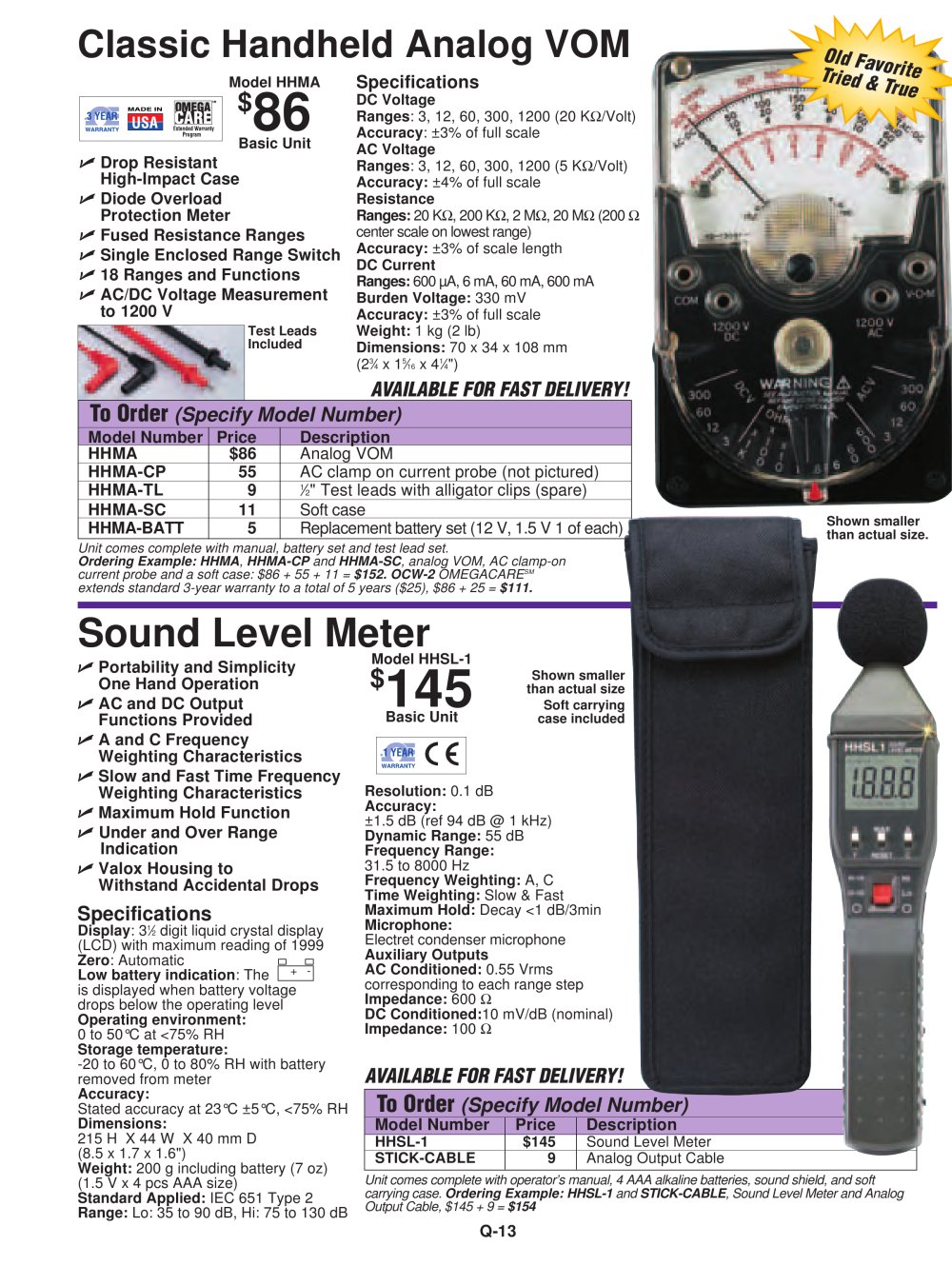

Q-13 Classic Handheld Analog VOM To Order (Specify Model Number) Model Number Price Description HHMA $86 Analog VOM HHMA-CP 55 AC clamp on current probe (not pictured) HHMA-TL 9 12" Test leads with alligator clips (spare) HHMA-SC 11 Soft case HHMA-BATT 5 Replacement battery set (12 V, 1.5 V 1 of each) Model HHMA $86 Basic Unit Specifications DC Voltage Ranges: 3, 12, 60, 300, 1200 (20 KÙ/Volt) Accuracy: ±3% of full scale AC Voltage Ranges: 3, 12, 60, 300, 1200 (5 KÙ/Volt) Accuracy: ±4% of full scale Resistance Ranges: 20 KÙ, 200 KÙ, 2 MÙ, 20 MÙ(200 Ù center scale on lowest range) Accuracy: ±3% of scale length DC Current Ranges: 600 ìA, 6 mA, 60 mA, 600 mA Burden Voltage: 330 mV Accuracy: ±3% of full scale Weight: 1 kg (2 lb) Dimensions: 70 x 34 x 108 mm (234 x 1516 x 414") Sound Level Meter Portability and Simplicity One Hand Operation AC and DC Output Functions Provided A and C Frequency Weighting Characteristics Slow and Fast Time Frequency Weighting Characteristics Maximum Hold Function Under and Over Range Indication Valox Housing to Withstand Accidental Drops Specifications Display: 312 digit liquid crystal display (LCD) with maximum reading of 1999 Zero: Automatic Low battery indication: The is displayed when battery voltage drops below the operating level Operating environment: 0 to 50°C at <75% RH Storage temperature: -20 to 60°C, 0 to 80% RH with battery removed from meter Accuracy: Stated accuracy at 23°C ±5°C, <75% RH Dimensions: 215 H X 44 W X 40 mm D (8.5 x 1.7 x 1.6") Weight: 200 g including battery (7 oz) (1.5 V x 4 pcs AAA size) Standard Applied: IEC 651 Type 2 Range: Lo: 35 to 90 dB, Hi: 75 to 130 dB Resolution: 0.1 dB Accuracy: ±1.5 dB (ref 94 dB @ 1 kHz) Dynamic Range: 55 dB Frequency Range: 31.5 to 8000 Hz Frequency Weighting: A, C Time Weighting: Slow & Fast Maximum Hold: Decay <1 dB/3min Microphone: Electret condenser microphone Auxiliary Outputs AC Conditioned: 0.55 Vrms corresponding to each range step Impedance: 600 Ù DC Conditioned:10 mV/dB (nominal) Impedance: 100 Ù Unit comes complete with manual, battery set and test lead set. Ordering Example: HHMA, HHMA-CP and HHMA-SC, analog VOM, AC clamp-on current probe and a soft case: $86 + 55 + 11 = $152. OCW-2 OMEGACARESM extends standard 3-year warranty to a total of 5 years ($25), $86 + 25 = $111. Unit comes complete with operator’s manual, 4 AAA alkaline batteries, sound shield, and soft carrying case. Ordering Example: HHSL-1 and STICK-CABLE, Sound Level Meter and Analog Output Cable, $145 + 9 = $154 To Order (Specify Model Number) Model Number Price Description HHSL-1 $145 Sound Level Meter STICK-CABLE 9 Analog Output Cable + - Model HHSL-1 $145 Basic Unit Shown smaller than actual size Soft carrying case included Shown smaller than actual size. Test Leads Included AVAILABLE FOR FAST DELIVERY! AVAILABLE FOR FAST DELIVERY! Drop Resistant High-Impact Case Diode Overload Protection Meter Fused Resistance Ranges Single Enclosed Range Switch 18 Ranges and Functions AC/DC Voltage Measurement to 1200 V Old Favorite Tried & True
