Round Terminal Blocks - 1

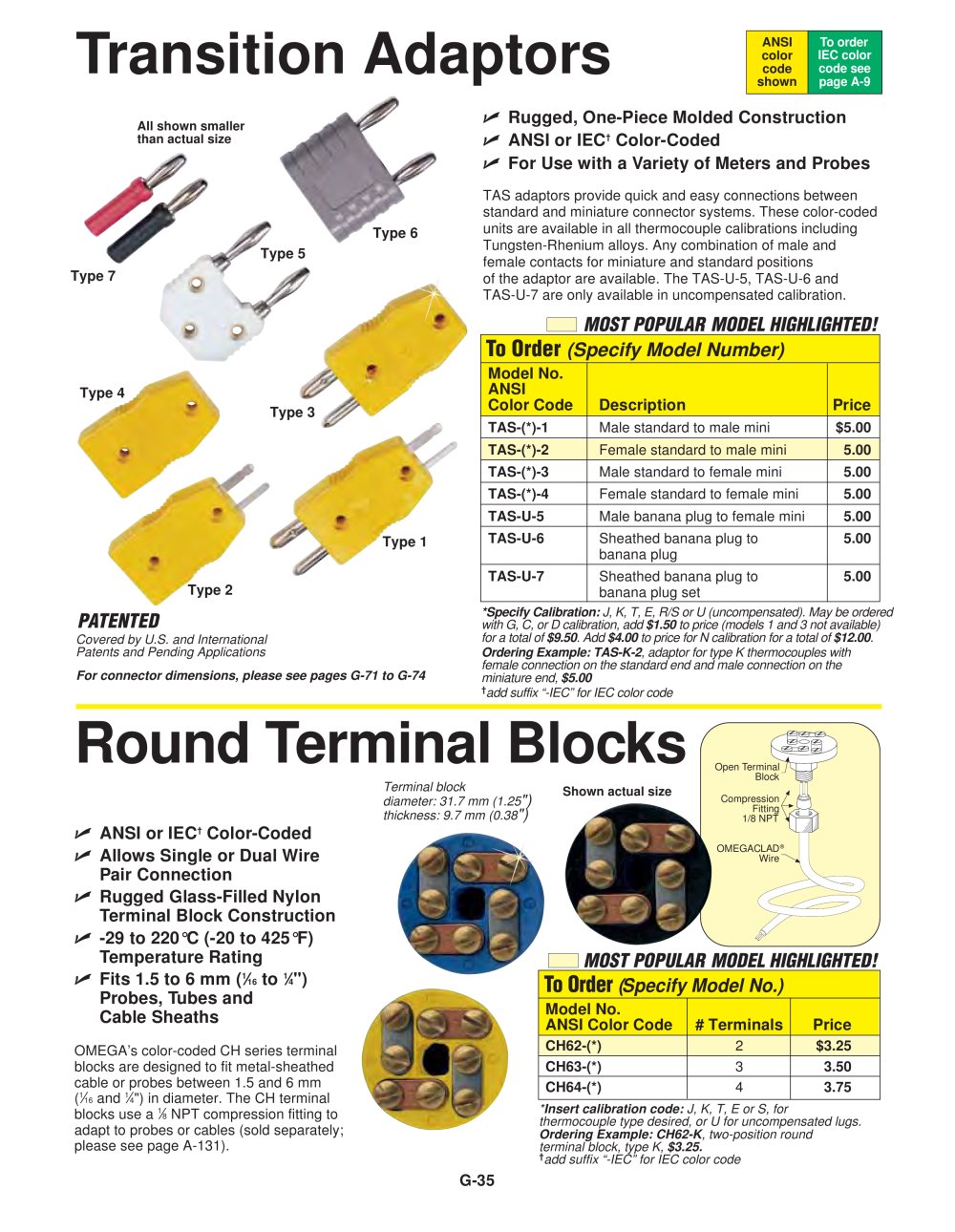

G-35 To Order (Specify Model Number) Model No. ANSI Color Code Description Price TAS-(*)-1 Male standard to male mini $5.00 TAS-(*)-2 Female standard to male mini 5.00 TAS-(*)-3 Male standard to female mini 5.00 TAS-(*)-4 Female standard to female mini 5.00 TAS-U-5 Male banana plug to female mini 5.00 TAS-U-6 Sheathed banana plug to 5.00 banana plug TAS-U-7 Sheathed banana plug to 5.00 banana plug set Transition Adaptors OMEGA’s color-coded CH series terminal blocks are designed to fit metal-sheathed cable or probes between 1.5 and 6 mm (116 and 14") in diameter. The CH terminal blocks use a 18 NPT compression fitting to adapt to probes or cables (sold separately; please see page A-131). *Insert calibration code: J, K, T, E or S, for thermocouple type desired, or U for uncompensated lugs. Ordering Example: CH62-K, two-position round terminal block, type K, $3.25. †add suffix “-IEC” for IEC color code Rugged, One-Piece Molded Construction ANSI or IEC† Color-Coded For Use with a Variety of Meters and Probes TAS adaptors provide quick and easy connections between standard and miniature connector systems. These color-coded units are available in all thermocouple calibrations including Tungsten-Rhenium alloys. Any combination of male and female contacts for miniature and standard positions of the adaptor are available. The TAS-U-5, TAS-U-6 and TAS-U-7 are only available in uncompensated calibration. *Specify Calibration: J, K, T, E, R/S or U (uncompensated). May be ordered with G, C, or D calibration, add $1.50 to price (models 1 and 3 not available) for a total of $9.50. Add $4.00 to price for N calibration for a total of $12.00. Ordering Example: TAS-K-2, adaptor for type K thermocouples with female connection on the standard end and male connection on the miniature end, $5.00 †add suffix “-IEC” for IEC color code To Order (Specify Model No.) Model No. ANSI Color Code # Terminals Price CH62-(*) 2 $3.25 CH63-(*) 3 3.50 CH64-(*) 4 3.75 Open Terminal Block Compression Fitting 1/8 NPT OMEGACLAD Wire ® ANSI or IEC† Color-Coded Allows Single or Dual Wire Pair Connection Rugged Glass-Filled Nylon Terminal Block Construction -29 to 220°C (-20 to 425°F) Temperature Rating Fits 1.5 to 6 mm (116 to 14") Probes, Tubes and Cable Sheaths Round Terminal Blocks Shown actual size Covered by U.S. and International Patents and Pending Applications All shown smaller than actual size Type 7 Type 6 Type 5 Type 4 Type 3 Type 1 Type 2 Terminal block diameter: 31.7 mm (1.25") thickness: 9.7 mm (0.38") For connector dimensions, please see pages G-71 to G-74 ANSI color code shown To order IEC color code see page A-9 PATENTED MOST POPULAR MODEL HIGHLIGHTED! MOST POPULAR MODEL HIGHLIGHTED!
