RH/Temp Humidity Transmitters HX93A/HX93DA Series
3Pages

{{requestButtons}}

Catalog excerpts

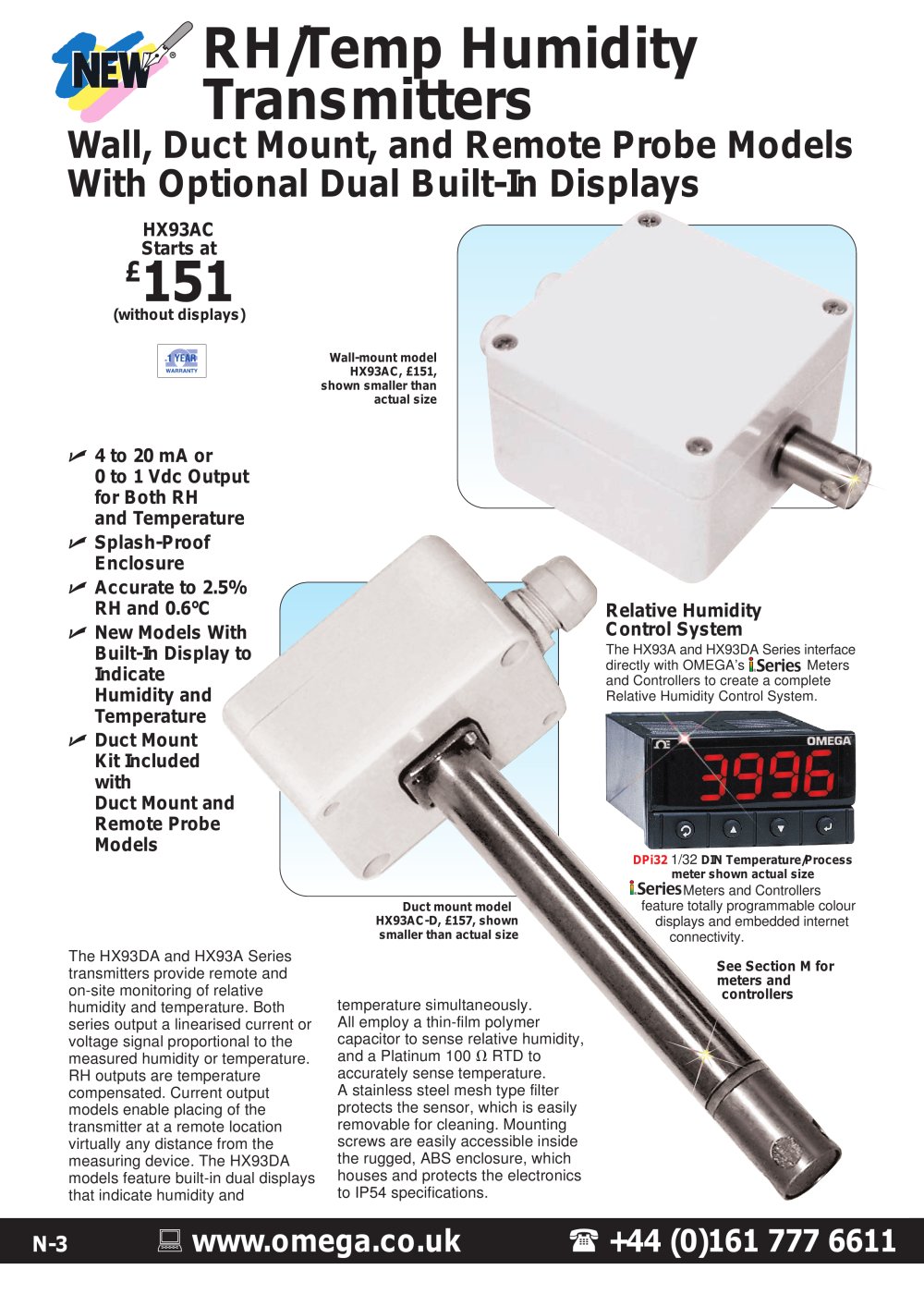

RH/Temp Humidity Transmitters  HX93A/HX93DA Series - 1

N-3 :www.omega.co.uk (+44 (0)161 777 6611 HX93AC Starts at £151 (without displays) Meters and Controllers feature totally programmable colour displays and embedded internet connectivity. U 4 to 20 mA or 0 to 1 Vdc Output for Both RH and Temperature U Splash-Proof Enclosure U Accurate to 2.5% RH and 0.6°C U New Models With Built-In Display to Indicate Humidity and Temperature U Duct Mount Kit Included with Duct Mount and Remote Probe Models Duct mount model HX93AC-D, £157, shown smaller than actual size RH/Temp Humidity Transmitters Wall, Duct Mount, and Remote Probe Models With Optional Dual Built-In Displays The HX93DA and HX93A Series transmitters provide remote and on-site monitoring of relative humidity and temperature. Both series output a linearised current or voltage signal proportional to the measured humidity or temperature. RH outputs are temperature compensated. Current output models enable placing of the transmitter at a remote location virtually any distance from the measuring device. The HX93DA models feature built-in dual displays that indicate humidity and Wall-mount model HX93AC, £151, shown smaller than actual size temperature simultaneously. All employ a thin-film polymer capacitor to sense relative humidity, and a Platinum 100 V RTD to accurately sense temperature. A stainless steel mesh type filter protects the sensor, which is easily removable for cleaning. Mounting screws are easily accessible inside the rugged, ABS enclosure, which houses and protects the electronics to IP54 specifications. Relative Humidity Control System The HX93A and HX93DA Series interface directly with OMEGA’s Meters and Controllers to create a complete Relative Humidity Control System. DPi32 1/32 DIN Temperature/Process meter shown actual size See Section M for meters and controllers

Open the catalog to page 1
RH/Temp Humidity Transmitters  HX93A/HX93DA Series - 2

Remote probe model HX93A(*)-RPI humidity transmitter is supplied with a 1 m cable attached to a 124.5 mm stainless steel probe Specifications Input Voltage Range: 24 Vdc nominal HX93A Series: 6 to 30 Vdc HX93DA Series: 12 to 30 Vdc MEASURING RANGE RH: 3 to 95% Temperature: -20 to 75°C ACCURACY RH: ±2.5% RH from 20 to 80%RH; ±3.1% RH below 20 and above 80% RH @ 25°C with temp coefficient of ±0.1% RH/°F Temperature: ±0.6°C OUTPUT HX93AC or HX93DAC: 4 to 20 mA for 0 to 100% RH and -20 to 75°C HX93AV: 0 to 1 Vdc for 0 to 100% RH and -20 to 75°C RH Temperature Compensation: -20 to 75°C Displays...

Open the catalog to page 2
RH/Temp Humidity Transmitters  HX93A/HX93DA Series - 3

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 3
