PRS-CB Series Sanitary RTD Sensors
3Pages

{{requestButtons}}

Catalog excerpts

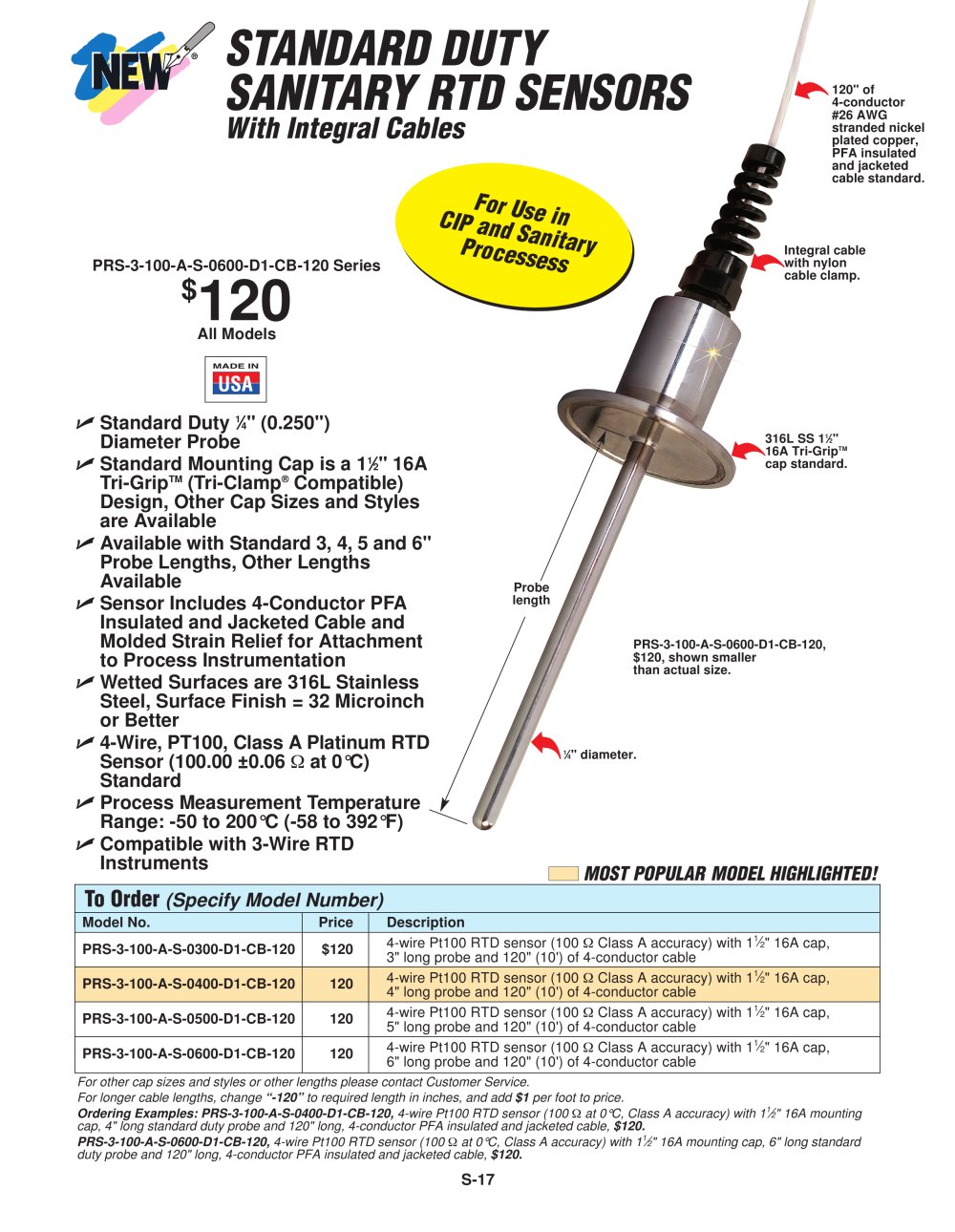

PRS-CB Series Sanitary RTD Sensors - 1

To Order (Specify Model Number) Model No. Price Description PRS-3-100-A-S-0300-D1-CB-120 $120 4-wire Pt100 RTD sensor (100 Ù Class A accuracy) with 112" 16A cap, 3" long probe and 120" (10') of 4-conductor cable PRS-3-100-A-S-0400-D1-CB-120 120 4-wire Pt100 RTD sensor (100 Ù Class A accuracy) with 112" 16A cap, 4" long probe and 120" (10') of 4-conductor cable PRS-3-100-A-S-0500-D1-CB-120 120 4-wire Pt100 RTD sensor (100 Ù Class A accuracy) with 112" 16A cap, 5" long probe and 120" (10') of 4-conductor cable PRS-3-100-A-S-0600-D1-CB-120 120 4-wire Pt100 RTD sensor (100 Ù Class A accuracy) with 112" 16A cap, 6" long probe and 120" (10') of 4-conductor cable MOST POPULAR MODEL HIGHLIGHTED! STANDARD DUTY SANITARY RTD SENSORS With Integral Cables S-17 For other cap sizes and styles or other lengths please contact Customer Service. For longer cable lengths, change “-120” to required length in inches, and add $1 per foot to price. Ordering Examples: PRS-3-100-A-S-0400-D1-CB-120, 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) with 112" 16A mounting cap, 4" long standard duty probe and 120" long, 4-conductor PFA insulated and jacketed cable, $120. PRS-3-100-A-S-0600-D1-CB-120, 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) with 112" 16A mounting cap, 6" long standard duty probe and 120" long, 4-conductor PFA insulated and jacketed cable, $120. PRS-3-100-A-S-0600-D1-CB-120 Series $120 All Models Standard Duty 14" (0.250") Diameter Probe Standard Mounting Cap is a 112" 16A Tri-GripTM (Tri-Clamp® Compatible) Design, Other Cap Sizes and Styles are Available Available with Standard 3, 4, 5 and 6" Probe Lengths, Other Lengths Available Sensor Includes 4-Conductor PFA Insulated and Jacketed Cable and Molded Strain Relief for Attachment to Process Instrumentation Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better 4-Wire, PT100, Class A Platinum RTD Sensor (100.00 ±0.06 Ù at 0°C) Standard Process Measurement Temperature Range: -50 to 200°C (-58 to 392°F) Compatible with 3-Wire RTD Instruments PRS-3-100-A-S-0600-D1-CB-120, $120, shown smaller than actual size. For Use in CIP and Sanitary Processess 316L SS 112" 16A Tri-GripTM cap standard. Integral cable with nylon cable clamp. 120" of 4-conductor #26 AWG stranded nickel plated copper, PFA insulated and jacketed cable standard. 14" diameter. Probe length

Open the catalog to page 1
PRS-CB Series Sanitary RTD Sensors - 2

HEAVY-DUTY SANITARY RTD SENSORS With Integral Cables S-18 S For other cap sizes and styles or probe lengths please contact Customer Service. For longer cable lengths, change “-120” to required length in inches, and add $1 per foot to the price. Ordering Examples: PRS-3-100-A-H-0400-CB-120, 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) with 112" 16A mounting cap, 4" long heavy-duty probe and 120" long, 4-conductor PFA insulated and jacketed cable, $150. PRS-3-100-A-H-0600-CB-120, 4-wire Pt100 RTD sensor (100 Ù at 0°C, Class A accuracy) with 112" 16A mounting cap, 6" long...

Open the catalog to page 2
