Programmable Signal Conditioners/Transmitters iDRN/iDRX Series
9Pages

{{requestButtons}}

Catalog excerpts

Programmable Signal Conditioners/Transmitters iDRN/iDRX Series - 1

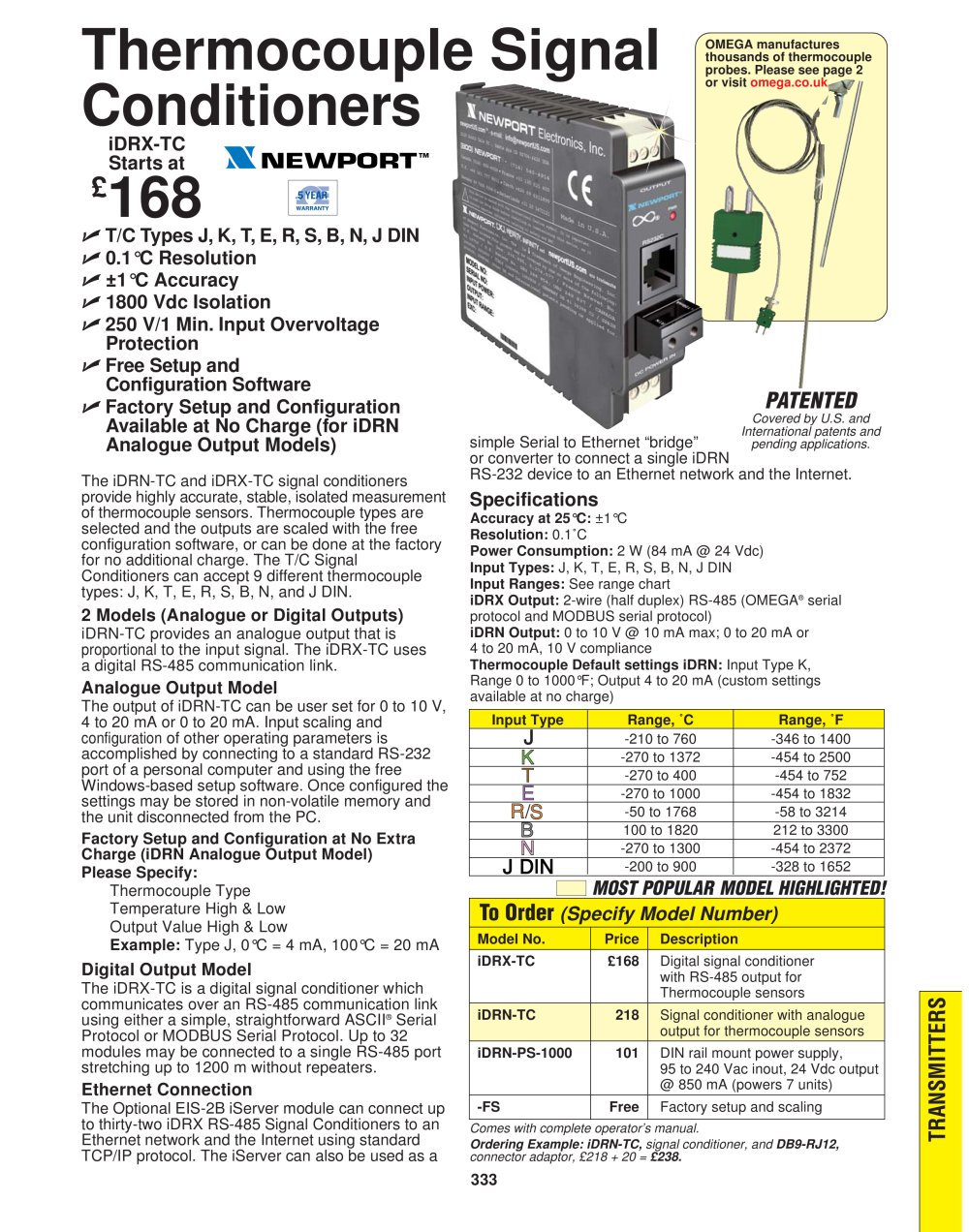

333 Input Type Range, °C Range, °F -210 to 760 -346 to 1400 -270 to 1372 -454 to 2500 -270 to 400 -454 to 752 -270 to 1000 -454 to 1832 / -50 to 1768 -58 to 3214 100 to 1820 212 to 3300 -270 to 1300 -454 to 2372 -200 to 900 -328 to 1652 Comes with complete operator’s manual. Ordering Example: iDRN-TC, signal conditioner, and DB9-RJ12, connector adaptor, £218 + 20 = £238. The iDRN-TC and iDRX-TC signal conditioners provide highly accurate, stable, isolated measurement of thermocouple sensors. Thermocouple types are selected and the outputs are scaled with the free configuration software, or can be done at the factory for no additional charge. The T/C Signal Conditioners can accept 9 different thermocouple types: J, K, T, E, R, S, B, N, and J DIN. 2 Models (Analogue or Digital Outputs) iDRN-TC provides an analogue output that is proportional to the input signal. The iDRX-TC uses a digital RS-485 communication link. Analogue Output Model The output of iDRN-TC can be user set for 0 to 10 V, 4 to 20 mA or 0 to 20 mA. Input scaling and configuration of other operating parameters is accomplished by connecting to a standard RS-232 port of a personal computer and using the free Windows-based setup software. Once configured the settings may be stored in non-volatile memory and the unit disconnected from the PC. Factory Setup and Configuration at No Extra Charge (iDRN Analogue Output Model) Please Specify: Thermocouple Type Temperature High & Low Output Value High & Low Example: Type J, 0°C = 4 mA, 100°C = 20 mA Digital Output Model The iDRX-TC is a digital signal conditioner which communicates over an RS-485 communication link using either a simple, straightforward ASCII® Serial Protocol or MODBUS Serial Protocol. Up to 32 modules may be connected to a single RS-485 port stretching up to 1200 m without repeaters. Ethernet Connection The Optional EIS-2B iServer module can connect up to thirty-two iDRX RS-485 Signal Conditioners to an Ethernet network and the Internet using standard TCP/IP protocol. The iServer can also be used as a To Order (Specify Model Number) Model No. Price Description iDRX-TC £168 Digital signal conditioner with RS-485 output for Thermocouple sensors iDRN-TC 218 Signal conditioner with analogue output for thermocouple sensors iDRN-PS-1000 101 DIN rail mount power supply, 95 to 240 Vac inout, 24 Vdc output @ 850 mA (powers 7 units) -FS Free Factory setup and scaling T/C Types J, K, T, E, R, S, B, N, J DIN 0.1°C Resolution ±1°C Accuracy 1800 Vdc Isolation 250 V/1 Min. Input Overvoltage Protection Free Setup and Configuration Software Factory Setup and Configuration Available at No Charge (for iDRN Analogue Output Models) OMEGA manufactures thousands of thermocouple probes. Please see page 2 or visit omega.co.uk Thermocouple Signal Conditioners iDRX-TC Starts at £168 Covered by U.S. and International patents and pending applications. PATENTED MOST POPULAR MODEL HIGHLIGHTED! NEWPORTTM simple Serial to Ethernet “bridge” or converter to connect a single iDRN RS-232 device to an Ethernet network and the Internet. Specifications Accuracy at 25°C: ±1°C Resolution: 0.1°C Power Consumption: 2 W (84 mA @ 24 Vdc) Input Types: J, K, T, E, R, S, B, N, J DIN Input Ranges: See range chart iDRX Output: 2-wire (half duplex) RS-485 (OMEGA® serial protocol and MODBUS serial protocol) iDRN Output: 0 to 10 V @ 10 mA max; 0 to 20 mA or 4 to 20 mA, 10 V compliance Thermocouple Default settings iDRN: Input Type K, Range 0 to 1000°F; Output 4 to 20 mA (custom settings available at no charge) TRANSMITTERS

Open the catalog to page 1
Programmable Signal Conditioners/Transmitters iDRN/iDRX Series - 2

SERIAL I/O 334 100Ù Pt, 500Ù Pt, 1000Ù Pt 0.1°C Resolution ±0.5°C Accuracy 1800 Vdc Isolation Free Setup and Configuration Software Factory Setup and Configuration Available at No Charge (for iDRN Analogue Output models) The iDRN-RTD and iDRX-RTD signal conditioners provide highly accurate, stable, isolated measurement of RTD temperature sensors. Both models can accept 2, 3, or 4 wire 100Ù PT, 500Ù PT and 1000Ù PT RTDs. 2 Models (Analogue or Digital Outputs) The iDRN-RTD provides a fully scalable analogue output that is proportional to the input signal. The iDRX-RTD uses digital RS-485...

Open the catalog to page 2
Programmable Signal Conditioners/Transmitters iDRN/iDRX Series - 3

335 To Order (Specify Model Number) Model No. Price Description iDRX-ST £201 Digital signal conditioner for strain gauges and bridge transducers with RS-485 output iDRN-ST 231 Signal conditioner for strain gauges and bridge transducers with analogue output iDRN-PS-1000 101 DIN rail mount power supply, 95 to 240 Vac inout, 24 Vdc output @ 850 mA (powers 7 units) -FS Free Factory setup and scaling Unipolar/Bipolar 30 mV to 100 mV 13-Bit Resolution 10 Vdc Excitation 0.2% FS Accuracy 1800 Vdc Isolation 250 Vac/1 Min. Input Overvoltage Protection Free Setup and Configuration Software Factory...

Open the catalog to page 3
Programmable Signal Conditioners/Transmitters iDRN/iDRX Series - 4

336 To Order (Specify Model Number) Model No. Price Description iDRX-PR £184 Digital signal conditioner with RS-485 output for process signals iDRN-PR 218 Signal conditioner with analogue output for process signals iDRN-PS-1000 101 DIN rail mount power supply, 95 to 240 Vac inout, 24 Vdc output @ 850 mA (powers 7 units) -FS Free Factory setup and scaling Process Inputs Signal Conditioners Unipolar/Bipolar 400 mV to 10 Vdc, 0 to 20 mA dc 11 to 14-Bit Resolution ±0.1% FS Accuracy 14 Vdc Excitation 1800 Vdc Isolation 250 Vac/1 Min. Input Overvoltage Protection (Voltage Input Only) Free Setup...

Open the catalog to page 4
Programmable Signal Conditioners/Transmitters iDRN/iDRX Series - 5

337 The iDRN-FP and iDRX-FP signal conditioners provide accurate, stable, isolated measurement of frequency and pulse signals. Both models measure frequency signals up to 50 KHz and can count up to two million pulses. The iDRX-FP and iDRN-FP are compatible with a wide variety of transducers including proximity, switch, magnetic pickup, NAMUR, contact closure and open collector transducers. 2 Models (Analogue or Digital Outputs) The iDRN-FP provides an analogue output that is proportional to the input signal. The iDRX-FP uses digital RS-485 Serial Communication. To Order (Specify Model...

Open the catalog to page 5
