Process-Signal-to-Speech Converter UV1000

Process-Signal-to-Speech Converter UV1000
3Pages

Catalog excerpts

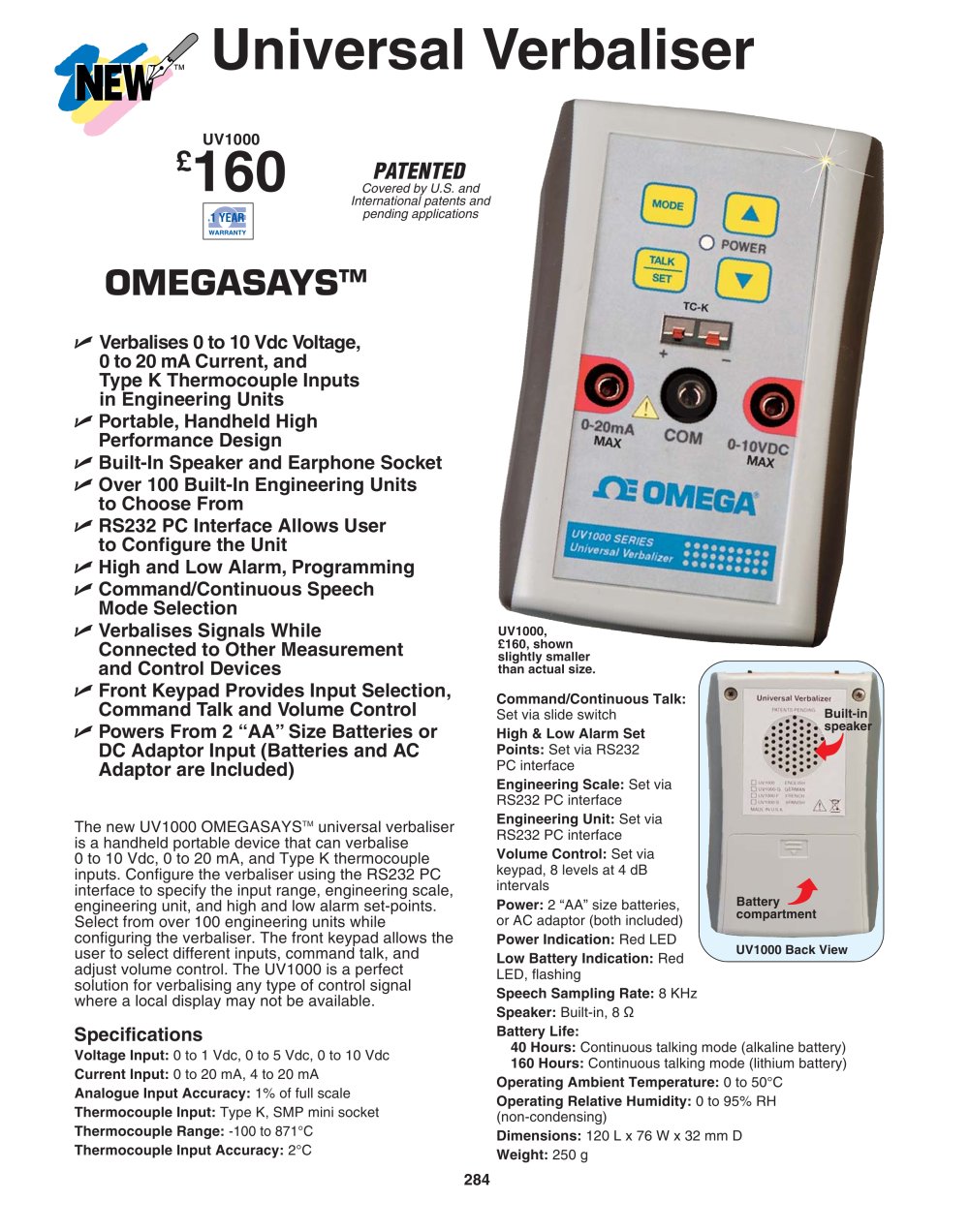

Process-Signal-to-Speech Converter UV1000 - 1

284 Universal Verbaliser UV1000, £160, shown slightly smaller than actual size. Verbalises 0 to 10 Vdc Voltage, 0 to 20 mA Current, and Type K Thermocouple Inputs in Engineering Units Portable, Handheld High Performance Design Built-In Speaker and Earphone Socket Over 100 Built-In Engineering Units to Choose From RS232 PC Interface Allows User to Configure the Unit High and Low Alarm, Programming Command/Continuous Speech Mode Selection Verbalises Signals While Connected to Other Measurement and Control Devices Front Keypad Provides Input Selection, Command Talk and Volume Control Powers From 2 “AA” Size Batteries or DC Adaptor Input (Batteries and AC Adaptor are Included) The new UV1000 OMEGASAYSTM universal verbaliser is a handheld portable device that can verbalise 0 to 10 Vdc, 0 to 20 mA, and Type K thermocouple inputs. Configure the verbaliser using the RS232 PC interface to specify the input range, engineering scale, engineering unit, and high and low alarm set-points. Select from over 100 engineering units while configuring the verbaliser. The front keypad allows the user to select different inputs, command talk, and adjust volume control. The UV1000 is a perfect solution for verbalising any type of control signal where a local display may not be available. Command/Continuous Talk: Set via slide switch High & Low Alarm Set Points: Set via RS232 PC interface Engineering Scale: Set via RS232 PC interface Engineering Unit: Set via RS232 PC interface Volume Control: Set via keypad, 8 levels at 4 dB intervals Power: 2 “AA” size batteries, or AC adaptor (both included) Power Indication: Red LED Low Battery Indication: Red LED, flashing Speech Sampling Rate: 8 KHz Speaker: Built-in, 8 Ù Battery Life: 40 Hours: Continuous talking mode (alkaline battery) 160 Hours: Continuous talking mode (lithium battery) Operating Ambient Temperature: 0 to 50°C Operating Relative Humidity: 0 to 95% RH (non-condensing) Dimensions: 120 L x 76 W x 32 mm D Weight: 250 g UV1000 £160 UV1000 Back View Built-in speaker Battery compartment OMEGASAYSTM Specifications Voltage Input: 0 to 1 Vdc, 0 to 5 Vdc, 0 to 10 Vdc Current Input: 0 to 20 mA, 4 to 20 mA Analogue Input Accuracy: 1% of full scale Thermocouple Input: Type K, SMP mini socket Thermocouple Range: -100 to 871°C Thermocouple Input Accuracy: 2°C Covered by U.S. and International patents and pending applications PATENTED

Open the catalog to page 1

Process-Signal-to-Speech Converter UV1000 - 2

285 HANDHELDS - + POWER 5V 300 mA EAR PHONE RS232 SPEECH MODE COMMAND CONTINUOUS I O UV1000 Configuration From PC 1 Input Selection (Voltage, Current, Thermocouple) 2 Engineering Scale Corresponding to the Input Range 3 Engineering Unit (Select From over 100 Built-In Engineering Units) 4 High and Low Alarm Set Points 5 Decimal Point Selection 6 Factory Default Settings UV1000 front panel showing all controls and connections, shown larger than actual size. UV1000, is connected to AC adaptor, earphone cable, and RS232 cable, shown smaller than actual size. This model includes a free 1 m Type...

Open the catalog to page 2

Process-Signal-to-Speech Converter UV1000 - 3

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
