Portable Low-Cost Temperature Relative Humidity Data Logger

Portable Low-Cost Temperature Relative Humidity Data Logger
2Pages

Catalog excerpts

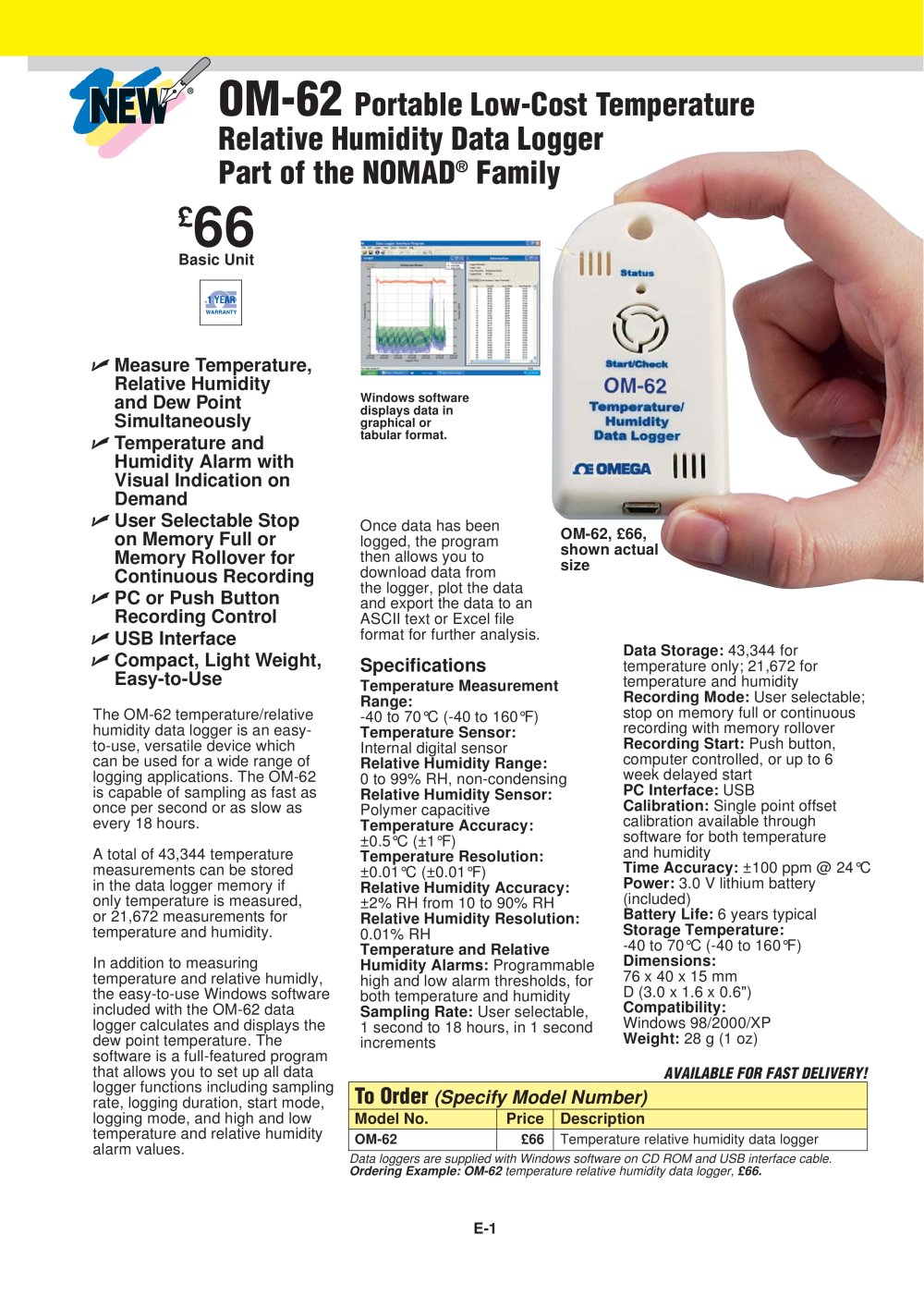

Portable Low-Cost Temperature Relative Humidity Data Logger - 1

E-1 The OM-62 temperature/relative humidity data logger is an easyto- use, versatile device which can be used for a wide range of logging applications. The OM-62 is capable of sampling as fast as once per second or as slow as every 18 hours. A total of 43,344 temperature measurements can be stored in the data logger memory if only temperature is measured, or 21,672 measurements for temperature and humidity. In addition to measuring temperature and relative humidly, the easy-to-use Windows software included with the OM-62 data logger calculates and displays the dew point temperature. The software is a full-featured program that allows you to set up all data logger functions including sampling rate, logging duration, start mode, logging mode, and high and low temperature and relative humidity alarm values. Once data has been logged, the program then allows you to download data from the logger, plot the data and export the data to an ASCII text or Excel file format for further analysis. Specifications Temperature Measurement Range: -40 to 70°C (-40 to 160°F) Temperature Sensor: Internal digital sensor Relative Humidity Range: 0 to 99% RH, non-condensing Relative Humidity Sensor: Polymer capacitive Temperature Accuracy: ±0.5°C (±1°F) Temperature Resolution: ±0.01°C (±0.01°F) Relative Humidity Accuracy: ±2% RH from 10 to 90% RH Relative Humidity Resolution: 0.01% RH Temperature and Relative Humidity Alarms: Programmable high and low alarm thresholds, for both temperature and humidity Sampling Rate: User selectable, 1 second to 18 hours, in 1 second increments £66 Basic Unit OM-62 Portable Low-Cost Temperature Relative Humidity Data Logger Part of the NOMAD® Family OM-62, £66, shown actual size To Order (Specify Model Number) Model No. Price Description OM-62 £66 Temperature relative humidity data logger Data loggers are supplied with Windows software on CD ROM and USB interface cable. Ordering Example: OM-62 temperature relative humidity data logger, £66. AVAILABLE FOR FAST DELIVERY! Data Storage: 43,344 for temperature only; 21,672 for temperature and humidity Recording Mode: User selectable; stop on memory full or continuous recording with memory rollover Recording Start: Push button, computer controlled, or up to 6 week delayed start PC Interface: USB Calibration: Single point offset calibration available through software for both temperature and humidity Time Accuracy: ±100 ppm @ 24°C Power: 3.0 V lithium battery (included) Battery Life: 6 years typical Storage Temperature: -40 to 70°C (-40 to 160°F) Dimensions: 76 x 40 x 15 mm D (3.0 x 1.6 x 0.6") Compatibility: Windows 98/2000/XP Weight: 28 g (1 oz) Measure Temperature, Relative Humidity and Dew Point Simultaneously Temperature and Humidity Alarm with Visual Indication on Demand User Selectable Stop on Memory Full or Memory Rollover for Continuous Recording PC or Push Button Recording Control USB Interface Compact, Light Weight, Easy-to-Use Windows software displays data in graphical or tabular format.

Open the catalog to page 1

Portable Low-Cost Temperature Relative Humidity Data Logger - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
