OMEGASCOPE® Handheld Infrared Thermometer

OMEGASCOPE® Handheld Infrared Thermometer
6Pages

Catalog excerpts

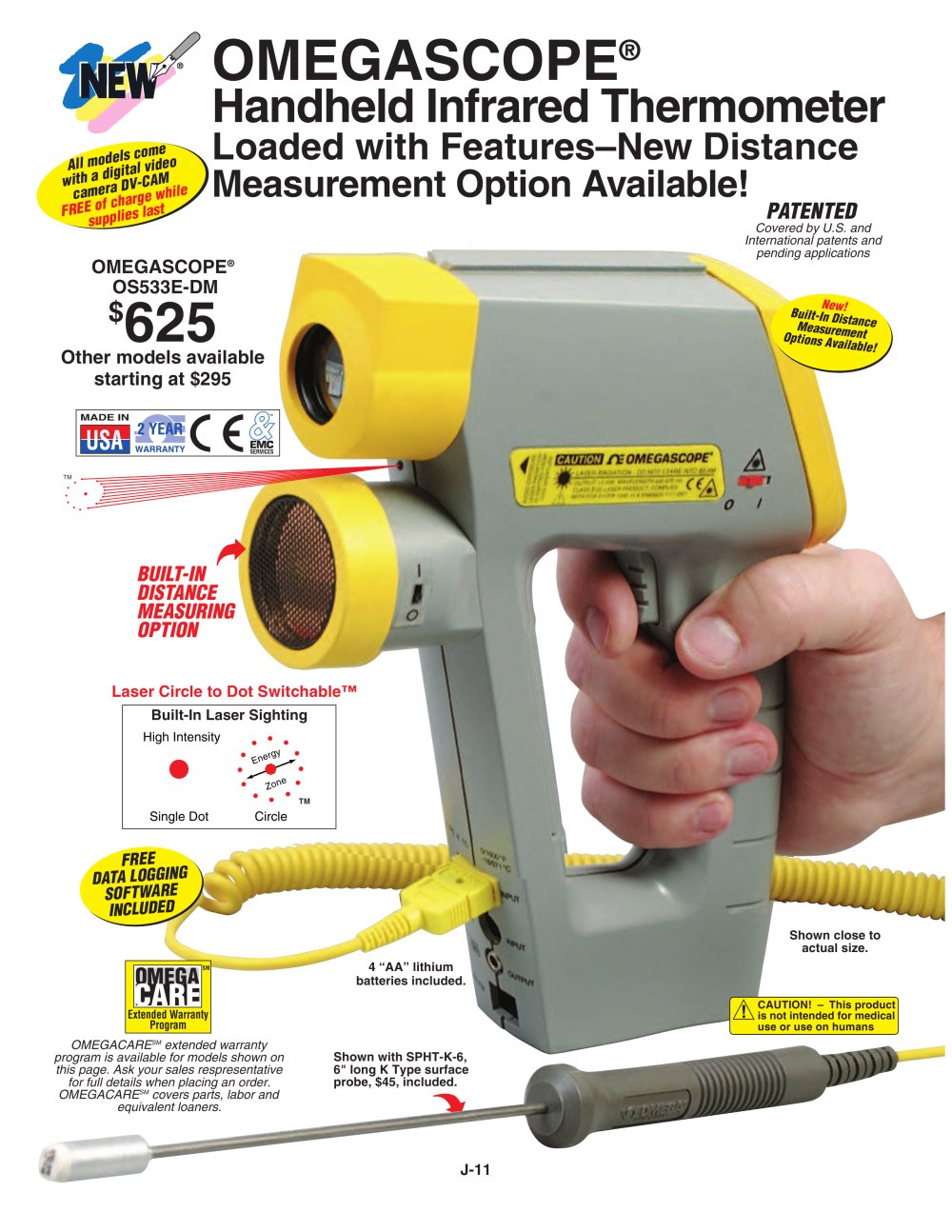

OMEGASCOPE® Handheld Infrared Thermometer - 1

OMEGASCOPE® Handheld Infrared Thermometer Loaded with Features–New Distance Measurement Option Available! Shown close to actual size. 4 “AA” lithium batteries included. Shown with SPHT-K-6, 6" long K Type surface probe, $45, included. Single Dot Circle Laser Sight Model Configurations High Intensity Energy Zone Built-In Laser Sighting TM Laser Circle to Dot Switchable™ OMEGASCOPE® OS533E-DM $625 Other models available starting at $295 J-11 Patents issued and pending on many aspects of this device, including but not limited to laser circle and distance measurement. PATENTED TM BUILT-IN DISTANCE MEASURING OPTION All models come with a digital video camera DV-CAM FREE of charge while supplies last FREE DATA LOGGING SOFTWARE INCLUDED New! Built-In Distance Measurement Options Available! OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales respresentative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners. Extended Warranty Program SM CAUTION! – This product is not intended for medical use or use on humans Covered by U.S. and International patents and pending applications PATENTED

Open the catalog to page 1

OMEGASCOPE® Handheld Infrared Thermometer - 2

FREE Digital Video Camera While Supplies Last Rugged, High-Performance Design Built-In Patented Laser Sighting is Switchable Between Laser Dot and Circle Patterns The Laser Can be Flashing or Continuous New Series Includes High-Performance, General Purpose, Close-Focus, and High-Resolution Models Models Available with Temperature Ranges from -23 to 871°C (-10 to 1600°F) Emissivity Adjustable from 0.1 to 1.00 in 0.01 Steps Models OS532E, OS533E, OS534E Come with 6" Long Type K Surface Probe Distance Measuring Option— Either Field Mountable or Built-In [0.9 and 9 m (3 and 30') Range] Backlit...

Open the catalog to page 2

OMEGASCOPE® Handheld Infrared Thermometer - 3

J-13 Standard Features Patented Laser Sighting Switchable Between Dot and Circle Laser Pattern Tripod Mountable Laser Power Switch Analog Output Standard on All Models Large, Backlit Display Circle/ Dot Switch OMEGASCOPE® Handheld Thermometer Series Patented Laser Circle to Dot SwitchableTM Feature With a combination of powerful features, the portable and rugged OS530 Series infrared thermometers offer solutions for many non-contact temperature measurement applications. Emissivity is adjustable in 0.01 increments, enabling these thermometers to measure a variety of surfaces. A custom...

Open the catalog to page 3

OMEGASCOPE® Handheld Infrared Thermometer - 4

J-14 J Specifications Repeatability: ±(1% rdg + 1 digit) Resolution: 1°C or 1°F (0.1°C or °F on OS530HRE) Response Time: 100 ms Spectral Response: 8 to 14 microns Emissivity: 0.10 to 1.00 in 0.01 increments Ambient Temperature Range: 0 to 50°C (32 to 122°F) Power: 4 “AA” lithium batteries (included) or optional AC adaptor Battery Life: 80-hr, alkaline; 14 days, lithium (without laser sighting) Analog Output: 1 mV/°C or 1 mV/°F Tripod Mount: 14" to 20 UNC Display: Backlit LCD; displays current and min or max, differential, average temperatures simultaneously Alarm: High alarm standard, with...

Open the catalog to page 4

OMEGASCOPE® Handheld Infrared Thermometer - 5

SPOT DIA.* (MM) SPOT DIA.* (IN) DISTANCE: SENSOR LENS TO OBJECT (IN) DISTANCE: SENSOR LENS TO OBJECT (CM) OS530HRE, OS530HRE-DM, OS533E and OS533E-DM OS530LE, OS530LE-DM, OS532E and OS532E-DM OS534E and OS534E-DM OS53XE-CF OMEGACARESM extended warranty program is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labor and equivalent loaners. DISTANCE: SENSOR LENS TO OBJECT (FT) SPOT DIA.* (MM) SPOT DIA.* (IN) DISTANCE: SENSOR LENS TO OBJECT (CM) SPOT DIA.* (CM) SPOT DIA.* (IN) DISTANCE: SENSOR LENS TO...

Open the catalog to page 5

OMEGASCOPE® Handheld Infrared Thermometer - 6

One Omega Drive | Stamford, CT 06907 | 1-888-TC-OMEGA (1-888-826-6342) | info@omega.com www.omega.com More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr Guyancourt, France 088-466-342 BENELUX www.omega.nl Amstelveen, NL 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and...

Open the catalog to page 6
