OMEGALUX® ROPE HEATERS FGR Series
1 /2Pages
OMEGALUX® ROPE HEATERS FGR Series
1 /2Pages
Catalog excerpts

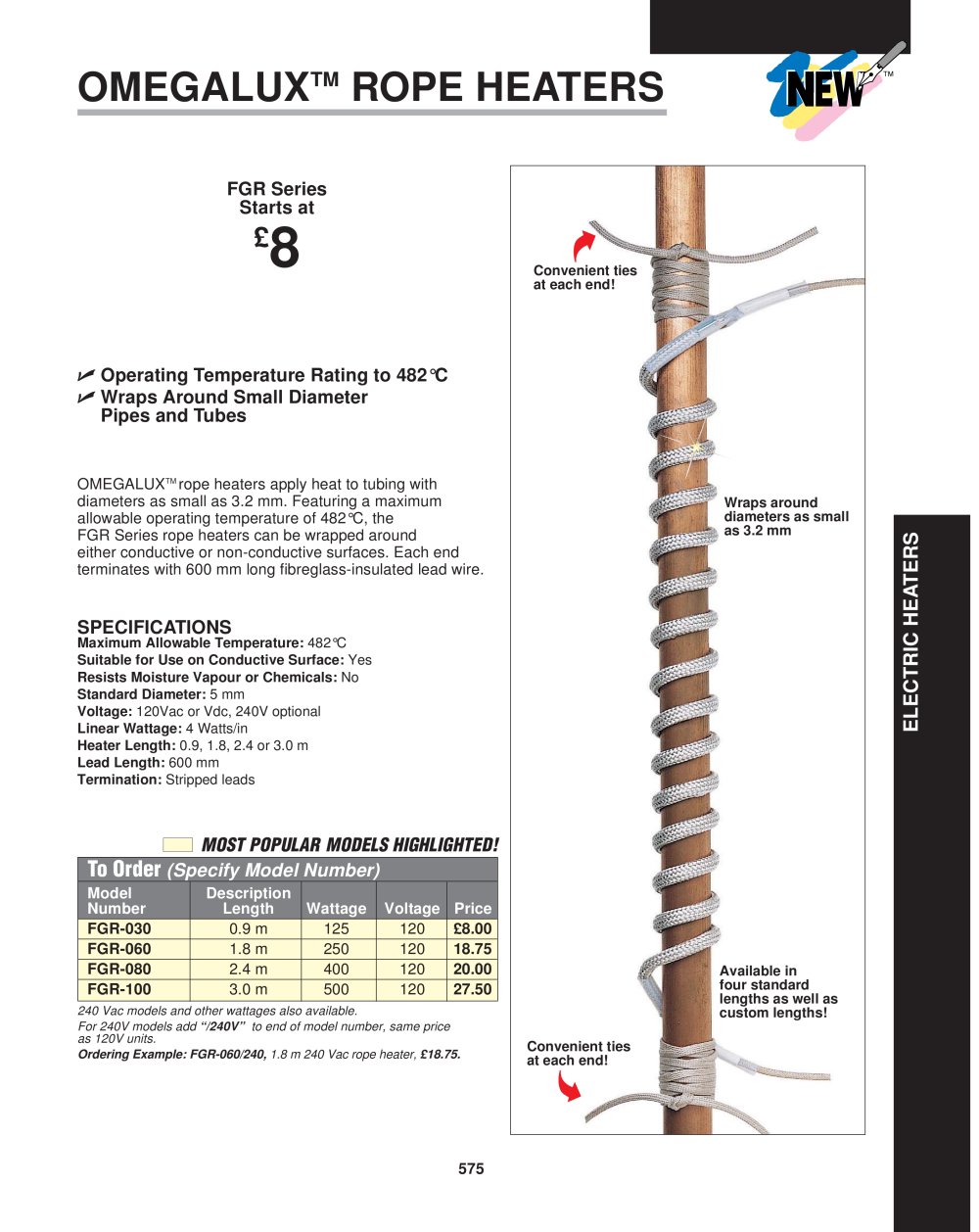

575 ELECTRIC HEATERS OMEGALUXTM ROPE HEATERS FGR Series Starts at £8 OMEGALUXTM rope heaters apply heat to tubing with diameters as small as 3.2 mm. Featuring a maximum allowable operating temperature of 482°C, the FGR Series rope heaters can be wrapped around either conductive or non-conductive surfaces. Each end terminates with 600 mm long fibreglass-insulated lead wire. SPECIFICATIONS Maximum Allowable Temperature: 482°C Suitable for Use on Conductive Surface: Yes Resists Moisture Vapour or Chemicals: No Standard Diameter: 5 mm Voltage: 120Vac or Vdc, 240V optional Linear Wattage: 4 Watts/in Heater Length: 0.9, 1.8, 2.4 or 3.0 m Lead Length: 600 mm Termination: Stripped leads To Order (Specify Model Number) Model Description Number Length Wattage Voltage Price FGR-030 0.9 m 125 120 £8.00 FGR-060 1.8 m 250 120 18.75 FGR-080 2.4 m 400 120 20.00 FGR-100 3.0 m 500 120 27.50 240 Vac models and other wattages also available. For 240V models add “/240V” to end of model number, same price as 120V units. Ordering Example: FGR-060/240, 1.8 m 240 Vac rope heater, £18.75. Convenient ties at each end! Convenient ties at each end! Wraps around diameters as small as 3.2 mm Available in four standard lengths as well as custom lengths! Operating Temperature Rating to 482°C Wraps Around Small Diameter Pipes and Tubes MOST POPULAR MODELS HIGHLIGHTED!
Open the catalog to page 1
Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | [email protected] www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement Instruments,...
Open the catalog to page 2All OMEGA catalogs and technical brochures
