Multipair Thermocouple Extension Cable 12KIX24SPP

Multipair Thermocouple Extension Cable 12KIX24SPP
2Pages

Catalog excerpts

Multipair Thermocouple Extension Cable 12KIX24SPP - 1

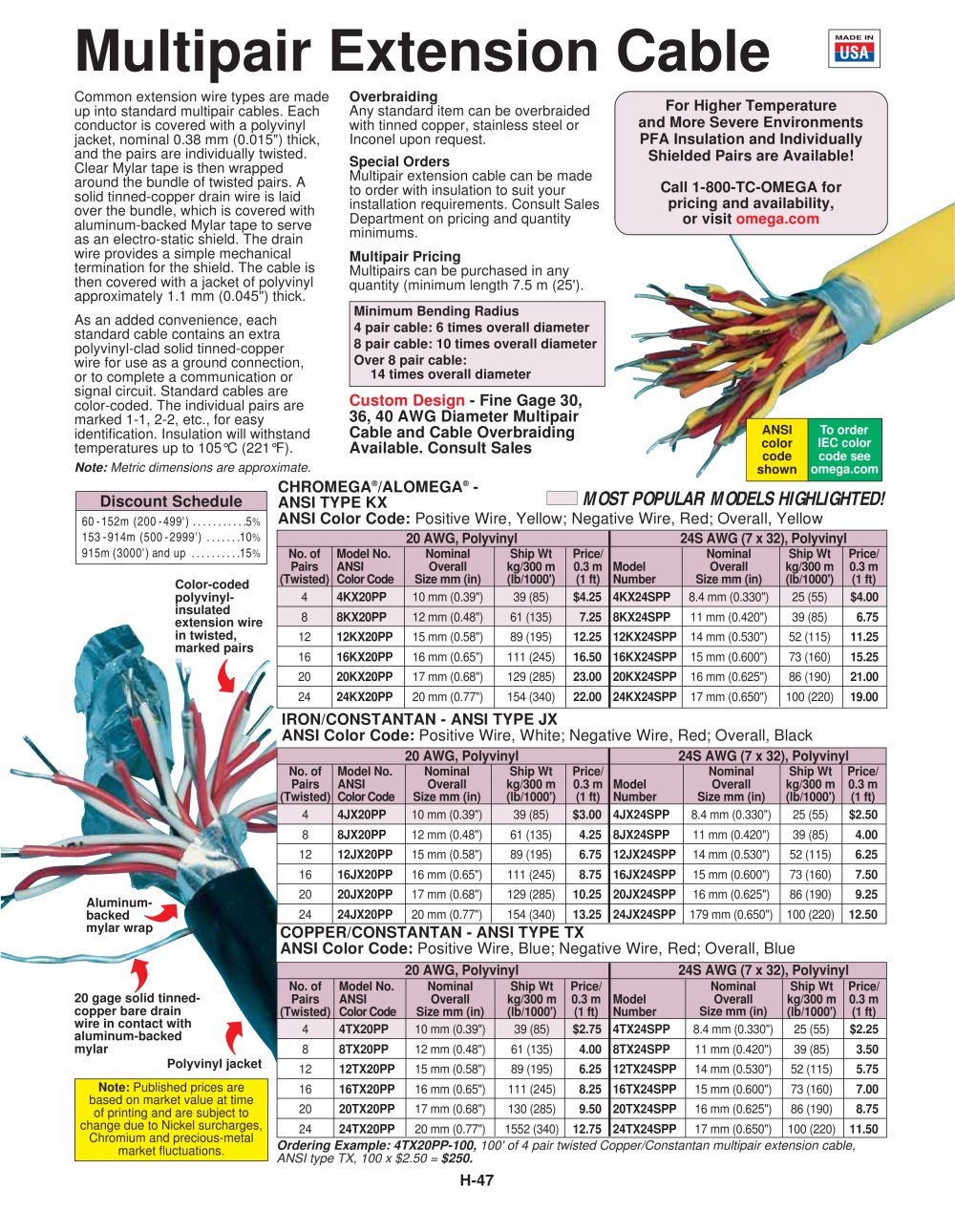

20 gage solid tinnedcopper bare drain wire in contact with aluminum-backed mylar Polyvinyl jacket Aluminumbacked mylar wrap H-47 Common extension wire types are made up into standard multipair cables. Each conductor is covered with a polyvinyl jacket, nominal 0.38 mm (0.015") thick, and the pairs are individually twisted. Clear Mylar tape is then wrapped around the bundle of twisted pairs. A solid tinned-copper drain wire is laid over the bundle, which is covered with aluminum-backed Mylar tape to serve as an electro-static shield. The drain wire provides a simple mechanical termination for the shield. The cable is then covered with a jacket of polyvinyl approximately 1.1 mm (0.045") thick. As an added convenience, each standard cable contains an extra polyvinyl-clad solid tinned-copper wire for use as a ground connection, or to complete a communication or signal circuit. Standard cables are color-coded. The individual pairs are marked 1-1, 2-2, etc., for easy identification. Insulation will withstand temperatures up to 105°C (221°F). Note: Metric dimensions are approximate. Custom Design - Fine Gage 30, 36, 40 AWG Diameter Multipair Cable and Cable Overbraiding Available. Consult Sales For Higher Temperature and More Severe Environments PFA Insulation and Individually Shielded Pairs are Available! Call 1-800-TC-OMEGA for pricing and availability, or visit omega.com Discount Schedule 60 - 152m (200 - 499') . . . . . . . . . . .5% 153 - 914m (500 - 2999') . . . . . . .10% 915m (3000') and up . . . . . . . . . .15% Overbraiding Any standard item can be overbraided with tinned copper, stainless steel or Inconel upon request. Special Orders Multipair extension cable can be made to order with insulation to suit your installation requirements. Consult Sales Department on pricing and quantity minimums. Multipair Pricing Multipairs can be purchased in any quantity (minimum length 7.5 m (25'). Minimum Bending Radius 4 pair cable: 6 times overall diameter 8 pair cable: 10 times overall diameter Over 8 pair cable: 14 times overall diameter Multipair Extension Cable Ordering Example: 4TX20PP-100, 100' of 4 pair twisted Copper/Constantan multipair extension cable, ANSI type TX, 100 x $2.50 = $250. ANSI color code shown To order IEC color code see omega.com Note: Published prices are based on market value at time of printing and are subject to change due to Nickel surcharges, Chromium and precious-metal market fluctuations. MOST POPULAR MODELS HIGHLIGHTED! COPPER/CONSTANTAN - ANSI TYPE TX ANSI Color Code: Positive Wire, Blue; Negative Wire, Red; Overall, Blue 20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl No. of Model No. Nominal Ship Wt Price/ Nominal Ship Wt Price/ Pairs ANSI Overall kg/300 m 0.3 m Model Overall kg/300 m 0.3 m (Twisted) Color Code Size mm (in) (lb/1000') (1 ft) Number Size mm (in) (lb/1000') (1 ft) 4 4TX20PP 10 mm (0.39") 39 (85) $2.75 4TX24SPP 8.4 mm (0.330") 25 (55) $2.25 8 8TX20PP 12 mm (0.48") 61 (135) 4.00 8TX24SPP 11 mm (0.420") 39 (85) 3.50 12 12TX20PP 15 mm (0.58") 89 (195) 6.25 12TX24SPP 14 mm (0.530") 52 (115) 5.75 16 16TX20PP 16 mm (0.65") 111 (245) 8.25 16TX24SPP 15 mm (0.600") 73 (160) 7.00 20 20TX20PP 17 mm (0.68") 130 (285) 9.50 20TX24SPP 16 mm (0.625") 86 (190) 8.75 24 24TX20PP 20 mm (0.77") 1552 (340) 12.75 24TX24SPP 17 mm (0.650") 100 (220) 11.50 IRON/CONSTANTAN - ANSI TYPE JX ANSI Color Code: Positive Wire, White; Negative Wire, Red; Overall, Black 20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl No. of Model No. Nominal Ship Wt Price/ Nominal Ship Wt Price/ Pairs ANSI Overall kg/300 m 0.3 m Model Overall kg/300 m 0.3 m (Twisted) Color Code Size mm (in) (lb/1000') (1 ft) Number Size mm (in) (lb/1000') (1 ft) 4 4JX20PP 10 mm (0.39") 39 (85) $3.00 4JX24SPP 8.4 mm (0.330") 25 (55) $2.50 8 8JX20PP 12 mm (0.48") 61 (135) 4.25 8JX24SPP 11 mm (0.420") 39 (85) 4.00 12 12JX20PP 15 mm (0.58") 89 (195) 6.75 12JX24SPP 14 mm (0.530") 52 (115) 6.25 16 16JX20PP 16 mm (0.65") 111 (245) 8.75 16JX24SPP 15 mm (0.600") 73 (160) 7.50 20 20JX20PP 17 mm (0.68") 129 (285) 10.25 20JX24SPP 16 mm (0.625") 86 (190) 9.25 24 24JX20PP 20 mm (0.77") 154 (340) 13.25 24JX24SPP 179 mm (0.650") 100 (220) 12.50 20 AWG, Polyvinyl 24S AWG (7 x 32), Polyvinyl No. of Model No. Nominal Ship Wt Price/ Nominal Ship Wt Price/ Pairs ANSI Overall kg/300 m 0.3 m Model Overall kg/300 m 0.3 m (Twisted) Color Code Size mm (in) (lb/1000') (1 ft) Number Size mm (in) (lb/1000') (1 ft) 4 4KX20PP 10 mm (0.39") 39 (85) $4.25 4KX24SPP 8.4 mm (0.330") 25 (55) $4.00 8 8KX20PP 12 mm (0.48") 61 (135) 7.25 8KX24SPP 11 mm (0.420") 39 (85) 6.75 12 12KX20PP 15 mm (0.58") 89 (195) 12.25 12KX24SPP 14 mm (0.530") 52 (115) 11.25 16 16KX20PP 16 mm (0.65") 111 (245) 16.50 16KX24SPP 15 mm (0.600") 73 (160) 15.25 20 20KX20PP 17 mm (0.68") 129 (285) 23.00 20KX24SPP 16 mm (0.625") 86 (190) 21.00 24 24KX20PP 20 mm (0.77") 154 (340) 22.00 24KX24SPP 17 mm (0.650") 100 (220) 19.00 CHROMEGA®/ALOMEGA® - ANSI TYPE KX ANSI Color Code: Positive Wire, Yellow; Negative Wire, Red; Overall, Yellow Color-coded polyvinylinsulated extension wire in twisted, marked pairs
