Miniature hot point® Dry Block Calibrator CL1000 Series
3Pages

{{requestButtons}}

Catalog excerpts

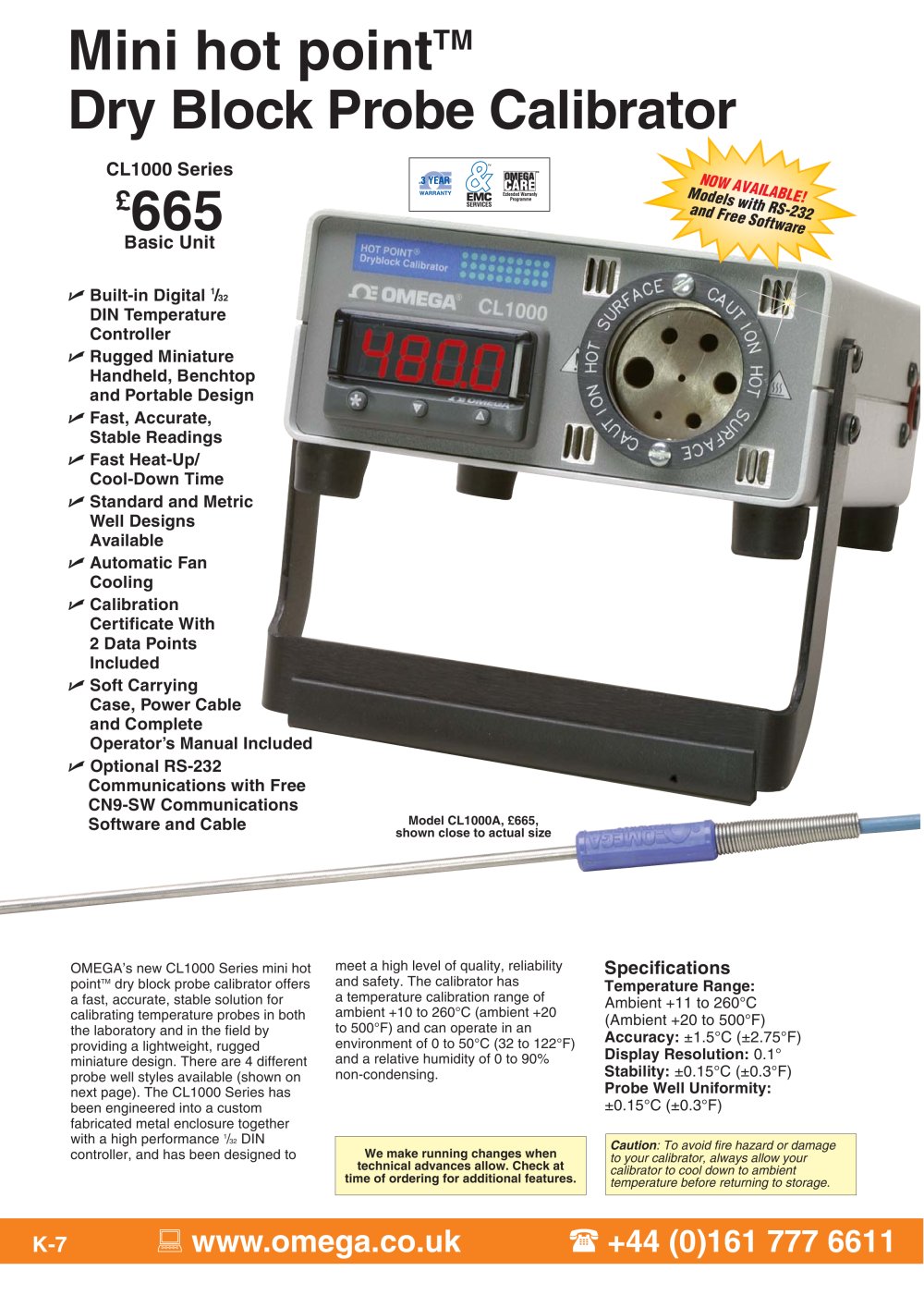

Miniature hot point® Dry Block Calibrator CL1000 Series - 1

K-7 www.omega.co.uk +44 (0)161 777 6611 We make running changes when technical advances allow. Check at time of ordering for additional features. OMEGA’s new CL1000 Series mini hot pointTM dry block probe calibrator offers a fast, accurate, stable solution for calibrating temperature probes in both the laboratory and in the field by providing a lightweight, rugged miniature design. There are 4 different probe well styles available (shown on next page). The CL1000 Series has been engineered into a custom fabricated metal enclosure together with a high performance 1/32 DIN controller, and has been designed to meet a high level of quality, reliability and safety. The calibrator has a temperature calibration range of ambient +10 to 260°C (ambient +20 to 500°F) and can operate in an environment of 0 to 50°C (32 to 122°F) and a relative humidity of 0 to 90% non-condensing. Specifications Temperature Range: Ambient +11 to 260°C (Ambient +20 to 500°F) Accuracy: ±1.5°C (±2.75°F) Display Resolution: 0.1° Stability: ±0.15°C (±0.3°F) Probe Well Uniformity: ±0.15°C (±0.3°F) Caution: To avoid fire hazard or damage to your calibrator, always allow your calibrator to cool down to ambient temperature before returning to storage. Mini hot pointTM Dry Block Probe Calibrator Built-in Digital 1/32 DIN Temperature Controller Rugged Miniature Handheld, Benchtop and Portable Design Fast, Accurate, Stable Readings Fast Heat-Up/ Cool-Down Time Standard and Metric Well Designs Available Automatic Fan Cooling Calibration Certificate With 2 Data Points Included Soft Carrying Case, Power Cable and Complete Operator’s Manual Included Optional RS-232 Communications with Free CN9-SW Communications Software and Cable CL1000 Series £665 Basic Unit NOW AVAILABLE! Models with RS-232 and Free Software Model CL1000A, £665, shown close to actual size

Open the catalog to page 1
Miniature hot point® Dry Block Calibrator CL1000 Series - 2

CALIBRATORS & SIMULATORS sales@omega.co.uk +44 (0)161 777 6622 K-8 Available Well Styles† 3.2 (1/8) 6.4 (1/4) 1.6 (1/16) 3.2 (1/8) 4.8 (3/16) 4.0 (5/32) IMPERIAL STYLE A 3.2 (1/8) 4.8 (3/16) 3.2 (1/8) 6.4 (1/4) 6.4 (1/4) IMPERIAL STYLE B CL1000 mini hot point,TM £665, shown calibrating a thermocouple probe, Model KTSS-HH-IEC, £19.50 (see Section A), with the HH64A handheld thermometer, £302 (see omega.co.uk). 3.2 (1/8) 1.6 (1/16) 3.2 (1/8) 1.6 (1/16) 4.8 (3/16) 4.8 (3/16) 1.5 (0.059) 4.5 (0.177) 2.0 (0.079) 6.0 (0.236) 3.0 (0.118) IMPERIAL METRIC STYLE C STYLE D Heat-Up Time: 38 to 260°C...

Open the catalog to page 2
Miniature hot point® Dry Block Calibrator CL1000 Series - 3

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 3
