Miniature Button Style Compression Load Cell

Miniature Button Style Compression Load Cell
2Pages

Catalog excerpts

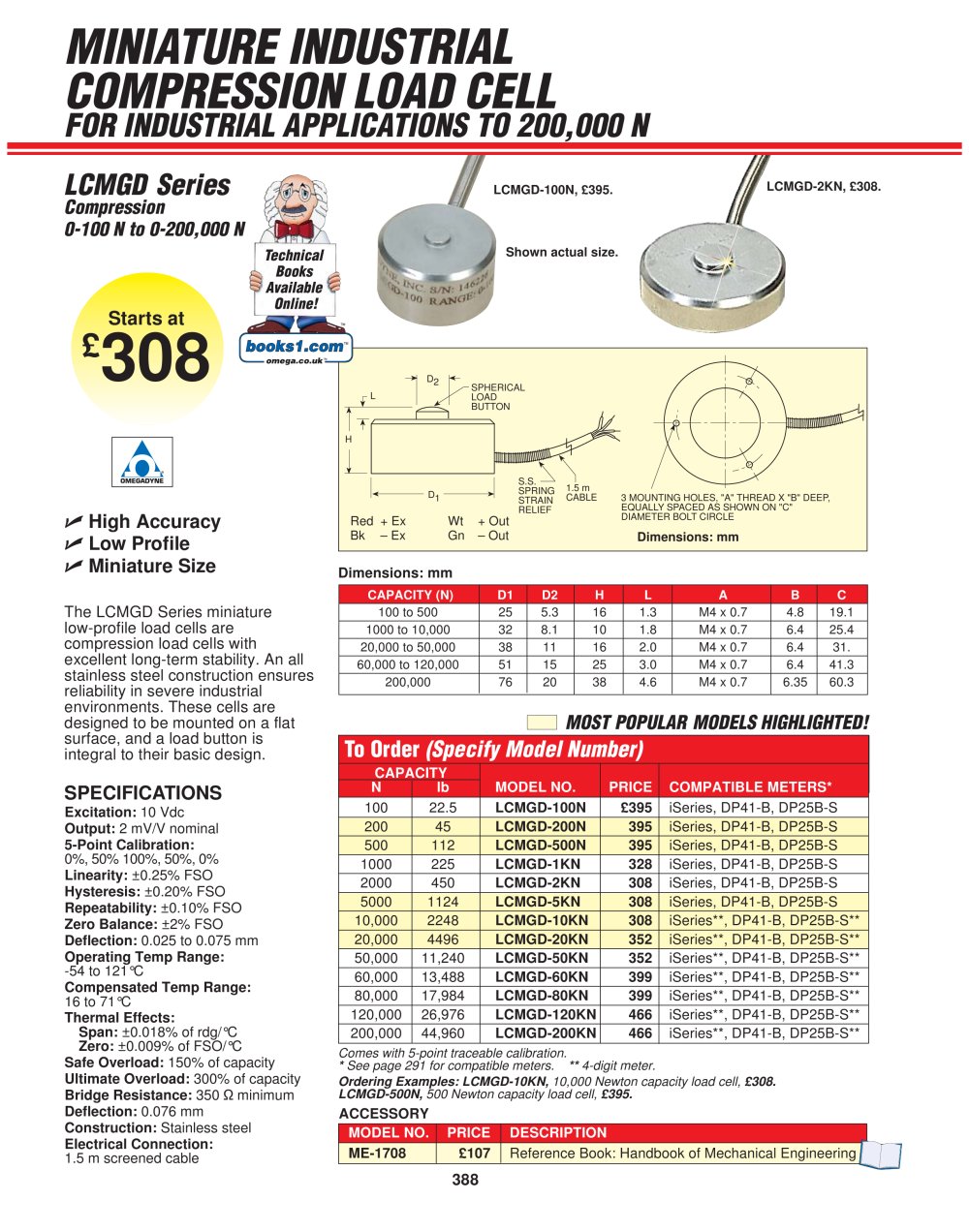

388 3 MOUNTING HOLES, "A" THREAD X "B" DEEP, EQUALLY SPACED AS SHOWN ON "C" DIAMETER BOLT CIRCLE L H D1 D2 S.S. SPRING STRAIN RELIEF SPHERICAL LOAD BUTTON 1.5 m CABLE CAPACITY (N) D1 D2 H L A B C 100 to 500 25 5.3 16 1.3 M4 x 0.7 4.8 19.1 1000 to 10,000 32 8.1 10 1.8 M4 x 0.7 6.4 25.4 20,000 to 50,000 38 11 16 2.0 M4 x 0.7 6.4 31. 60,000 to 120,000 51 15 25 3.0 M4 x 0.7 6.4 41.3 200,000 76 20 38 4.6 M4 x 0.7 6.35 60.3 Dimensions: mm To Order (Specify Model Number) CAPACITY N lb MODEL NO. PRICE COMPATIBLE METERS* 100 22.5 LCMGD-100N £395 iSeries, DP41-B, DP25B-S 200 45 LCMGD-200N 395 iSeries, DP41-B, DP25B-S 500 112 LCMGD-500N 395 iSeries, DP41-B, DP25B-S 1000 225 LCMGD-1KN 328 iSeries, DP41-B, DP25B-S 2000 450 LCMGD-2KN 308 iSeries, DP41-B, DP25B-S 5000 1124 LCMGD-5KN 308 iSeries, DP41-B, DP25B-S 10,000 2248 LCMGD-10KN 308 iSeries**, DP41-B, DP25B-S** 20,000 4496 LCMGD-20KN 352 iSeries**, DP41-B, DP25B-S** 50,000 11,240 LCMGD-50KN 352 iSeries**, DP41-B, DP25B-S** 60,000 13,488 LCMGD-60KN 399 iSeries**, DP41-B, DP25B-S** 80,000 17,984 LCMGD-80KN 399 iSeries**, DP41-B, DP25B-S** 120,000 26,976 LCMGD-120KN 466 iSeries**, DP41-B, DP25B-S** 200,000 44,960 LCMGD-200KN 466 iSeries**, DP41-B, DP25B-S** Red + Ex Bk – Ex Wt + Out Gn – Out The LCMGD Series miniature low-profile load cells are compression load cells with excellent long-term stability. An all stainless steel construction ensures reliability in severe industrial environments. These cells are designed to be mounted on a flat surface, and a load button is integral to their basic design. SPECIFICATIONS Excitation: 10 Vdc Output: 2 mV/V nominal 5-Point Calibration: 0%, 50% 100%, 50%, 0% Linearity: ±0.25% FSO Hysteresis: ±0.20% FSO Repeatability: ±0.10% FSO Zero Balance: ±2% FSO Deflection: 0.025 to 0.075 mm Operating Temp Range: -54 to 121°C Compensated Temp Range: 16 to 71°C Thermal Effects: Span: ±0.018% of rdg/°C Zero: ±0.009% of FSO/°C Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Bridge Resistance: 350 Ù minimum Deflection: 0.076 mm Construction: Stainless steel Electrical Connection: 1.5 m screened cable LCMGD Series Compression 0-100 N to 0-200,000 N LCMGD-100N, £395. Shown actual size. High Accuracy Low Profile Miniature Size MINIATURE INDUSTRIAL COMPRESSION LOAD CELL FOR INDUSTRIAL APPLICATIONS TO 200,000 N LCMGD-2KN, £308. MOST POPULAR MODELS HIGHLIGHTED! Starts at £308 Comes with 5-point traceable calibration. * See page 291 for compatible meters. ** 4-digit meter. Ordering Examples: LCMGD-10KN, 10,000 Newton capacity load cell, £308. LCMGD-500N, 500 Newton capacity load cell, £395. Dimensions: mm MODEL NO. PRICE DESCRIPTION ME-1708 £107 Reference Book: Handbook of Mechanical Engineering ACCESSORY

Open the catalog to page 1

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
