Low Cost Digital Moisture Meter HHMM690

Low Cost Digital Moisture Meter HHMM690
2Pages

Catalog excerpts

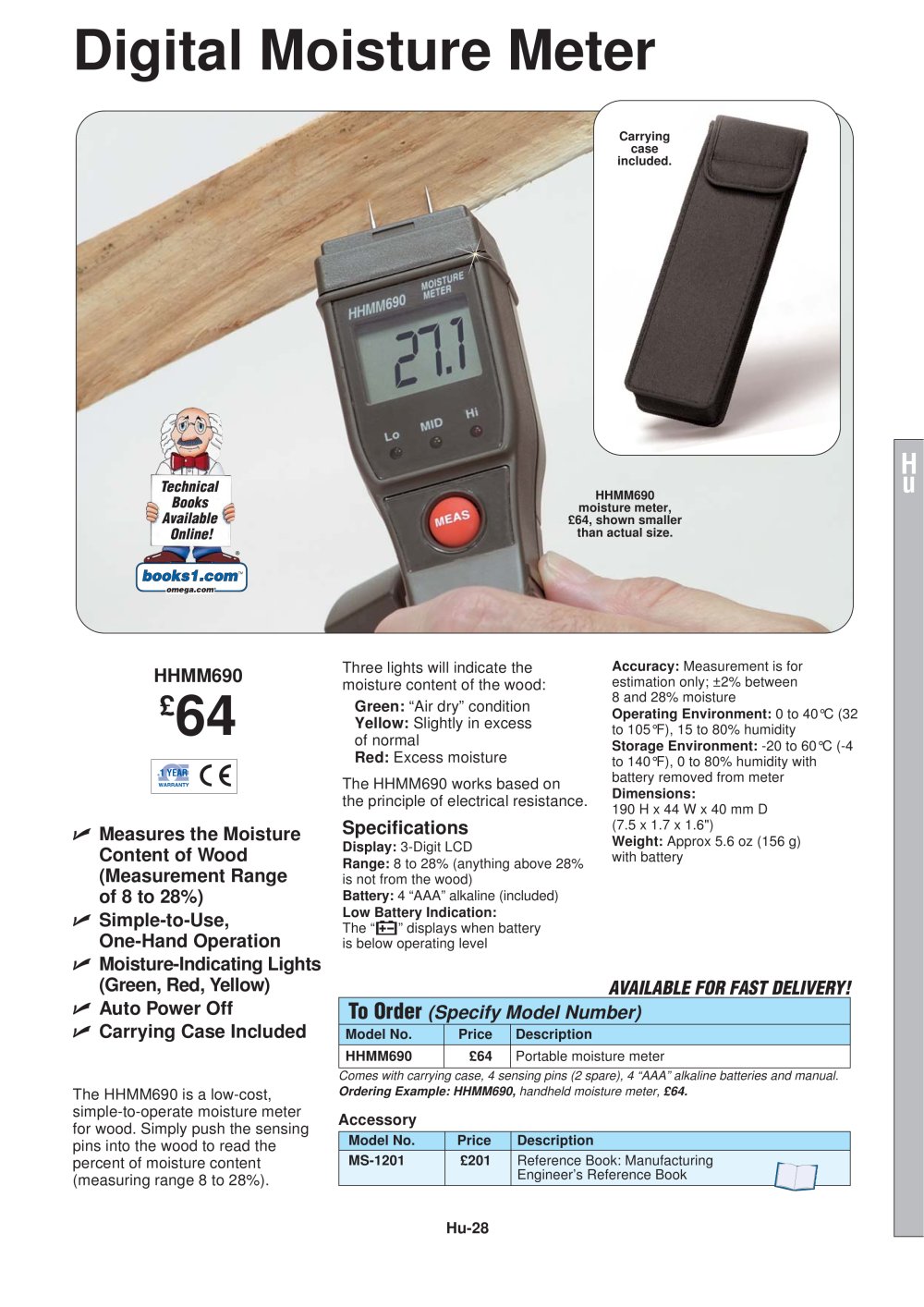

Low Cost Digital Moisture Meter HHMM690 - 1

Accuracy: Measurement is for estimation only; ±2% between 8 and 28% moisture Operating Environment: 0 to 40°C (32 to 105°F), 15 to 80% humidity Storage Environment: -20 to 60°C (-4 to 140°F), 0 to 80% humidity with battery removed from meter Dimensions: 190 H x 44 W x 40 mm D (7.5 x 1.7 x 1.6") Weight: Approx 5.6 oz (156 g) with battery Hu-28 Hu Digital Moisture Meter Measures the Moisture Content of Wood (Measurement Range of 8 to 28%) Simple-to-Use, One-Hand Operation Moisture-Indicating Lights (Green, Red, Yellow) Auto Power Off Carrying Case Included To Order (Specify Model Number) Model No. Price Description HHMM690 £64 Portable moisture meter Comes with carrying case, 4 sensing pins (2 spare), 4 “AAA” alkaline batteries and manual. Ordering Example: HHMM690, handheld moisture meter, £64. HHMM690 £64 The HHMM690 is a low-cost, simple-to-operate moisture meter for wood. Simply push the sensing pins into the wood to read the percent of moisture content (measuring range 8 to 28%). Three lights will indicate the moisture content of the wood: Green: “Air dry” condition Yellow: Slightly in excess of normal Red: Excess moisture The HHMM690 works based on the principle of electrical resistance. Specifications Display: 3-Digit LCD Range: 8 to 28% (anything above 28% is not from the wood) Battery: 4 “AAA” alkaline (included) Low Battery Indication: The “ ” displays when battery is below operating level HHMM690 moisture meter, £64, shown smaller than actual size. AVAILABLE FOR FAST DELIVERY! Model No. Price Description MS-1201 £201 Reference Book: Manufacturing Engineer’s Reference Book Accessory Carrying case included.

Open the catalog to page 1

Low Cost Digital Moisture Meter HHMM690 - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
