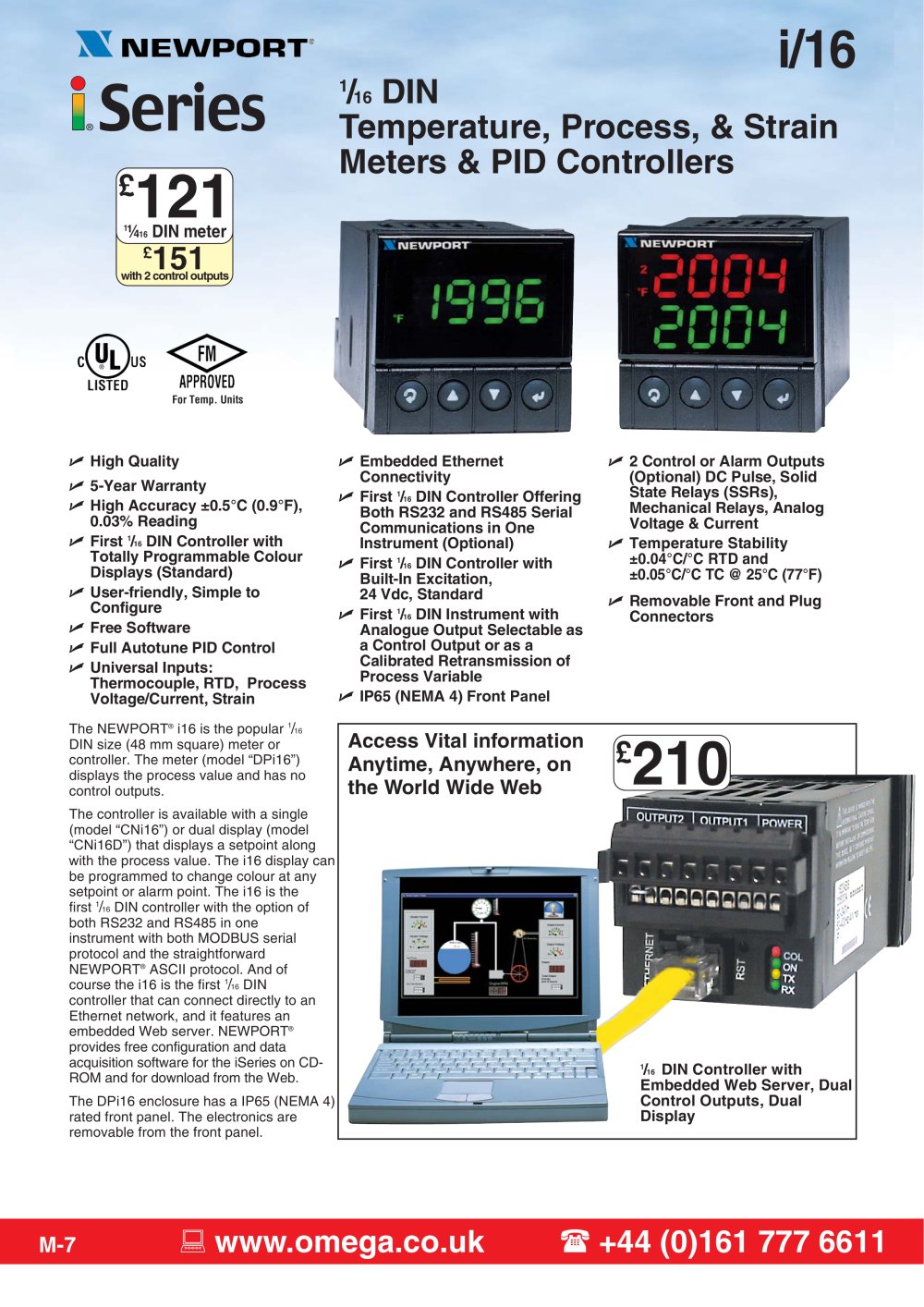

M-7 www.omega.co.uk +44 (0)161 777 6611 1/16 DIN Temperature, Process, & Strain Meters & PID Controllers High Quality 5-Year Warranty High Accuracy ±0.5°C (0.9°F), 0.03% Reading First 1/16 DIN Controller with Totally Programmable Colour Displays (Standard) User-friendly, Simple to Configure Free Software Full Autotune PID Control Universal Inputs: Thermocouple, RTD, Process Voltage/Current, Strain Embedded Ethernet Connectivity First 1/16 DIN Controller Offering Both RS232 and RS485 Serial Communications in One Instrument (Optional) First 1/16 DIN Controller with Built-In Excitation, 24 Vdc, Standard First 1/16 DIN Instrument with Analogue Output Selectable as a Control Output or as a Calibrated Retransmission of Process Variable IP65 (NEMA 4) Front Panel 2 Control or Alarm Outputs (Optional) DC Pulse, Solid State Relays (SSRs), Mechanical Relays, Analog Voltage & Current Temperature Stability ±0.04°C/°C RTD and ±0.05°C/°C TC @ 25°C (77°F) Removable Front and Plug Connectors i/16 with 2 control outputs £151 £121 1¼16 DIN meter 1/16 DIN Controller with Embedded Web Server, Dual Control Outputs, Dual Display £210 The NEWPORT® i16 is the popular 1/16 DIN size (48 mm square) meter or controller. The meter (model “DPi16”) displays the process value and has no control outputs. The controller is available with a single (model “CNi16”) or dual display (model “CNi16D”) that displays a setpoint along with the process value. The i16 display can be programmed to change colour at any setpoint or alarm point. The i16 is the first 1/16 DIN controller with the option of both RS232 and RS485 in one instrument with both MODBUS serial protocol and the straightforward NEWPORT® ASCII protocol. And of course the i16 is the first 1/16 DIN controller that can connect directly to an Ethernet network, and it features an embedded Web server. NEWPORT® provides free configuration and data acquisition software for the iSeries on CDROM and for download from the Web. The DPi16 enclosure has a IP65 (NEMA 4) rated front panel. The electronics are removable from the front panel. Access Vital information Anytime, Anywhere, on the World Wide Web For Temp. Units

www.omega.co.uk +44 (0)161 777 6611 M-8 20.3 105.7 MAX (6.4) MAX (0.6) MIN 45.00 +0.61/-0.00 45.00 +0.61/-0.00 R 1.52 Dimensions shown in mm 48.0 48.0 i/16 49.0 53.3 Each model comes with a complete operator’s manual. Ordering Examples: CNi16D33, 1/16 DIN dual display temperature/process monitor with 2 relays, £165. DPi16, 1/16 DIN temperature/process monitor, £121. DPiS16, 1/16 DIN strain/process monitor, £155. To Order (*Specify Model No.) Model Number Description Price DPi16 Temperature/Process (Monitor only) 1/16 DIN £121 DPiS16 Strain/Process (Monitor only) 1/16 DIN 155 CONTROL OUTPUTS #1...

M-13 www.omega.co.uk +44 (0)161 777 6611 Common Specifications(All i/8, i/16, i/32 DIN) Span Adjustment: 0.001 to 9999 counts Offset Adjustment: -1999 to 9999 Excitation (optional in place of communication): 5 Vdc @ 40 mA; 10 Vdc @ 60 mA Control Action:Reverse (heat) or direct (cool) Modes: Time and Amplitude Proportional Control Modes; selectable Manual or Auto PID, Proportional, Proportional with Integral, Proportional with Derivative with Anti-Reset Windup and ON/OFF Rate: 0 to 399.9 seconds Reset: 0 to 3999 seconds Cycle Time: 1 to 199 seconds; set to 0 for ON/OFF operation Gain: 0.5 to 100%...
