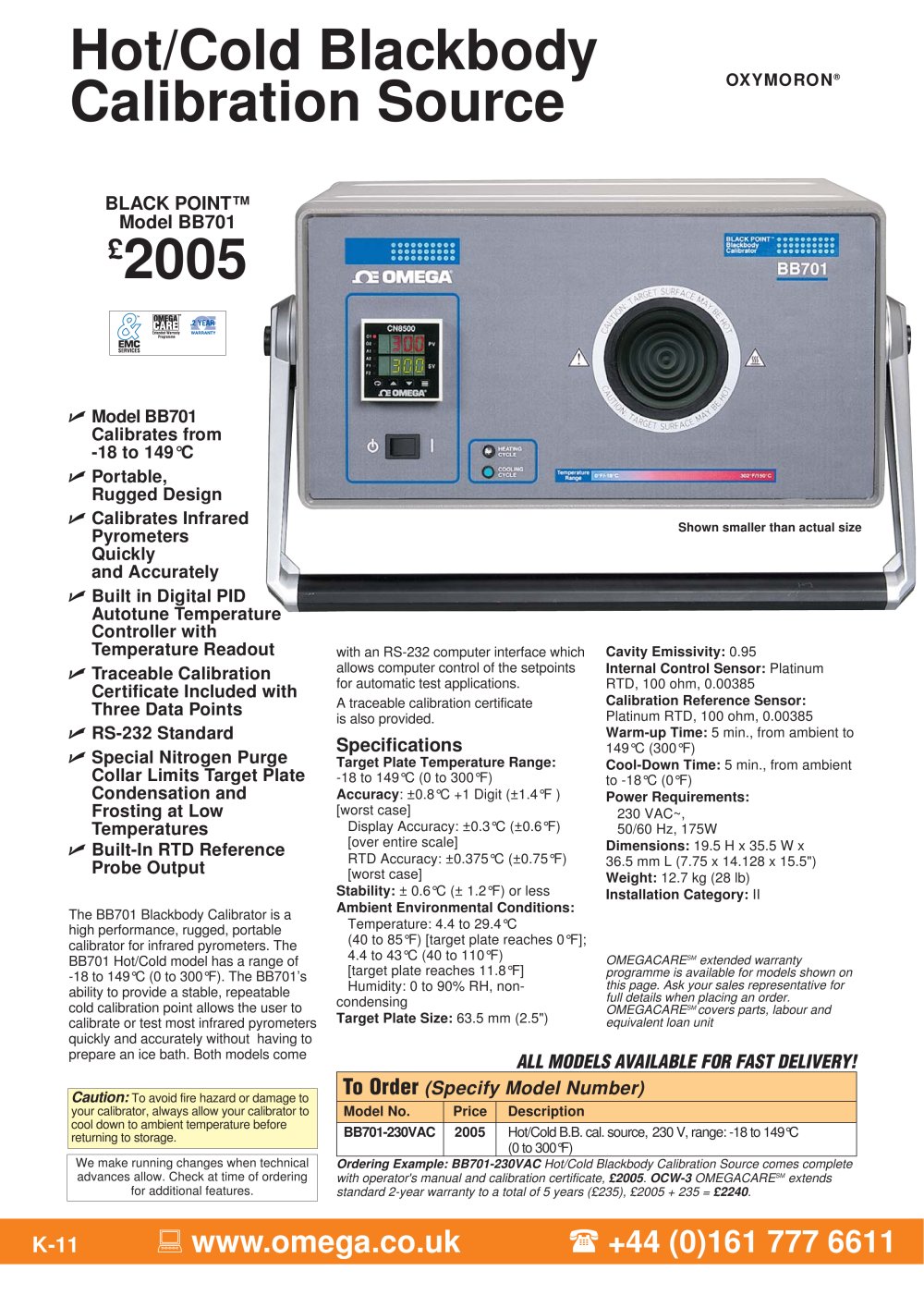

K-11 www.omega.co.uk +44 (0)161 777 6611 The BB701 Blackbody Calibrator is a high performance, rugged, portable calibrator for infrared pyrometers. The BB701 Hot/Cold model has a range of -18 to 149°C (0 to 300°F). The BB701’s ability to provide a stable, repeatable cold calibration point allows the user to calibrate or test most infrared pyrometers quickly and accurately without having to prepare an ice bath. Both models come Model BB701 Calibrates from -18 to 149°C Portable, Rugged Design Calibrates Infrared Pyrometers Quickly and Accurately Built in Digital PID Autotune Temperature Controller with Temperature Readout Traceable Calibration Certificate Included with Three Data Points RS-232 Standard Special Nitrogen Purge Collar Limits Target Plate Condensation and Frosting at Low Temperatures Built-In RTD Reference Probe Output Cavity Emissivity: 0.95 Internal Control Sensor: Platinum RTD, 100 ohm, 0.00385 Calibration Reference Sensor: Platinum RTD, 100 ohm, 0.00385 Warm-up Time: 5 min., from ambient to 149°C (300°F) Cool-Down Time: 5 min., from ambient to -18°C (0°F) Power Requirements: 230 VAC~, 50/60 Hz, 175W Dimensions: 19.5 H x 35.5 W x 36.5 mm L (7.75 x 14.128 x 15.5") Weight: 12.7 kg (28 lb) Installation Category: II Hot/Cold Blackbody Calibration Source Caution: To avoid fire hazard or damage to your calibrator, always allow your calibrator to cool down to ambient temperature before returning to storage. To Order (Specify Model Number) Model No. Price Description BB701-230VAC 2005 Hot/Cold B.B. cal. source, 230 V, range: -18 to 149°C (0 to 300°F) Ordering Example: BB701-230VAC Hot/Cold Blackbody Calibration Source comes complete with operator's manual and calibration certificate, £2005. OCW-3 OMEGACARESM extends standard 2-year warranty to a total of 5 years (£235), £2005 + 235 = £2240. We make running changes when technical advances allow. Check at time of ordering for additional features. BLACK POINT™ Model BB701 £2005 OXYMORON® OMEGACARESM extended warranty programme is available for models shown on this page. Ask your sales representative for full details when placing an order. OMEGACARESM covers parts, labour and equivalent loan unit Shown smaller than actual size with an RS-232 computer interface which allows computer control of the setpoints for automatic test applications. A traceable calibration certificate is also provided. Specifications Target Plate Temperature Range: -18 to 149°C (0 to 300°F) Accuracy: ±0.8°C +1 Digit (±1.4°F ) [worst case] Display Accuracy: ±0.3°C (±0.6°F) [over entire scale] RTD Accuracy: ±0.375°C (±0.75°F) [worst case] Stability: ± 0.6°C (± 1.2°F) or less Ambient Environmental Conditions: Temperature: 4.4 to 29.4°C (40 to 85°F) [target plate reaches 0°F]; 4.4 to 43°C (40 to 110°F) [target plate reaches 11.8°F] Humidity: 0 to 90% RH, noncondensing Target Plate Size: 63.5 mm (2.5") ALL MODELS AVAILABLE FOR FAST DELIVERY!
