High Accuracy RTD Input Thermometers HH804

High Accuracy RTD Input Thermometers HH804
2Pages

Catalog excerpts

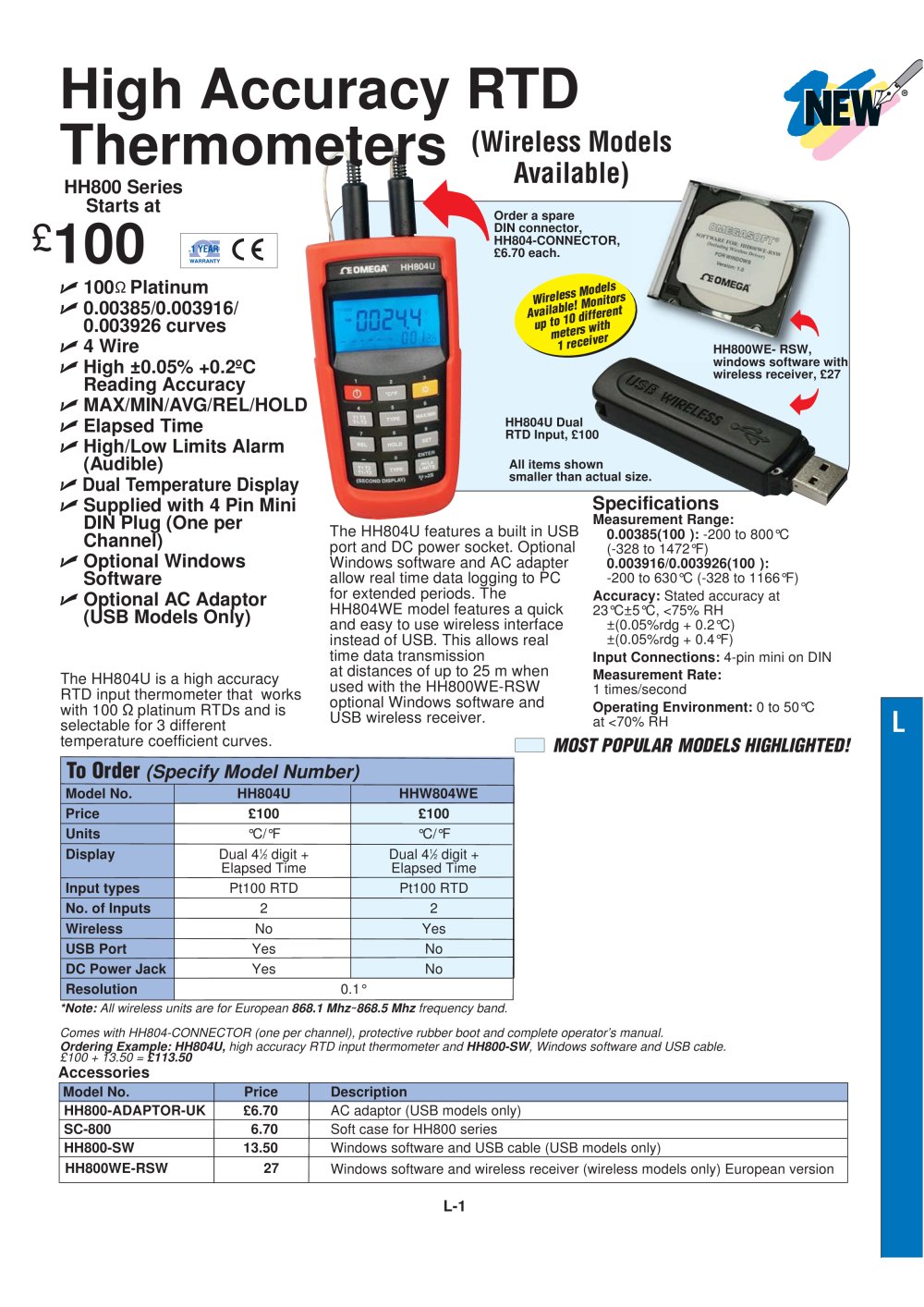

High Accuracy RTD Input Thermometers HH804 - 1

L-1 L Model No. Price Description HH800-ADAPTOR-UK £6.70 AC adaptor (USB models only) SC-800 6.70 Soft case for HH800 series HH800-SW 13.50 Windows software and USB cable (USB models only) HH800WE-RSW 27 Windows software and wireless receiver (wireless models only) European version Accessories The HH804U is a high accuracy RTD input thermometer that works with 100 Ù platinum RTDs and is selectable for 3 different temperature coefficient curves. The HH804U features a built in USB port and DC power socket. Optional Windows software and AC adapter allow real time data logging to PC for extended periods. The HH804WE model features a quick and easy to use wireless interface instead of USB. This allows real time data transmission at distances of up to 25 m when used with the HH800WE-RSW optional Windows software and USB wireless receiver. Specifications Measurement Range: 0.00385(100 ): -200 to 800°C (-328 to 1472°F) 0.003916/0.003926(100 ): -200 to 630°C (-328 to 1166°F) Accuracy: Stated accuracy at 23°C±5°C, <75% RH ±(0.05%rdg + 0.2°C) ±(0.05%rdg + 0.4°F) Input Connections: 4-pin mini on DIN Measurement Rate: 1 times/second Operating Environment: 0 to 50°C at <70% RH 100 Platinum 0.00385/0.003916/ 0.003926 curves 4 Wire High ±0.05% +0.2ºC Reading Accuracy MAX/MIN/AVG/REL/HOLD Elapsed Time High/Low Limits Alarm (Audible) Dual Temperature Display Supplied with 4 Pin Mini DIN Plug (One per Channel) Optional Windows Software Optional AC Adaptor (USB Models Only) HH804U Dual RTD Input, £100 To Order (Specify Model Number) Model No. HH804U HHW804WE Price £100 £100 Units °C/°F °C/°F Display Dual 412 digit + Dual 412 digit + Elapsed Time Elapsed Time Input types Pt100 RTD Pt100 RTD No. of Inputs 2 2 Wireless No Yes USB Port Yes No DC Power Jack Yes No Resolution 0.1° Comes with HH804-CONNECTOR (one per channel), protective rubber boot and complete operator’s manual. Ordering Example: HH804U, high accuracy RTD input thermometer and HH800-SW, Windows software and USB cable. £100 + 13.50 = £113.50 MOST POPULAR MODELS HIGHLIGHTED! All items shown smaller than actual size. Order a spare DIN connector, HH804-CONNECTOR, £6.70 each. *Note: All wireless units are for European 868.1 Mhz˜ 868.5 Mhz frequency band. (Wireless Models Available) Wireless Models Available! Monitors up to 10 different meters with 1 receiver High Accuracy RTD Thermometers HH800 Series Starts at £100 HH800WE- RSW, windows software with wireless receiver, £27 Ù

Open the catalog to page 1

High Accuracy RTD Input Thermometers HH804 - 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...

Open the catalog to page 2
