Hermetically Sealed Thermistor Sensors HSTH-44000 Series

Product catalog summary

Overview: The document provides details about the HSTH-44000 Series of hermetic flexible thermistor sensors, which are designed for use in corrosive environments and tight spaces. These sensors are PFA insulated, making them highly resistant to chemicals and oils.

Specifications:

Available in three standard resistance values: 2252, 5000, and 10,000 ohms at 25°C with an interchangeability of ±0.1°C.
Temperature range: -80 to 150°C (-110 to 302°F).
Nominal diameter: 2.1 mm with 7/0.16 mm wire and stripped leads as standard.

Features:

PFA insulation for chemical and oil resistance.
Easily sterilized for food applications.
Small physical size for fast temperature response.

Ordering Information:

Standard wire length is 1 meter (40 inches), with options for custom lengths at an additional cost of £2 per meter.
Phone plug connectors can be added for an additional £4.70.
Example order: HSTH-44031-2M-PP, which includes a 2-meter cable with a phone plug, priced at £36.70.

Customization: Custom lengths, insulations, and configurations are available upon request.

Catalog excerpts

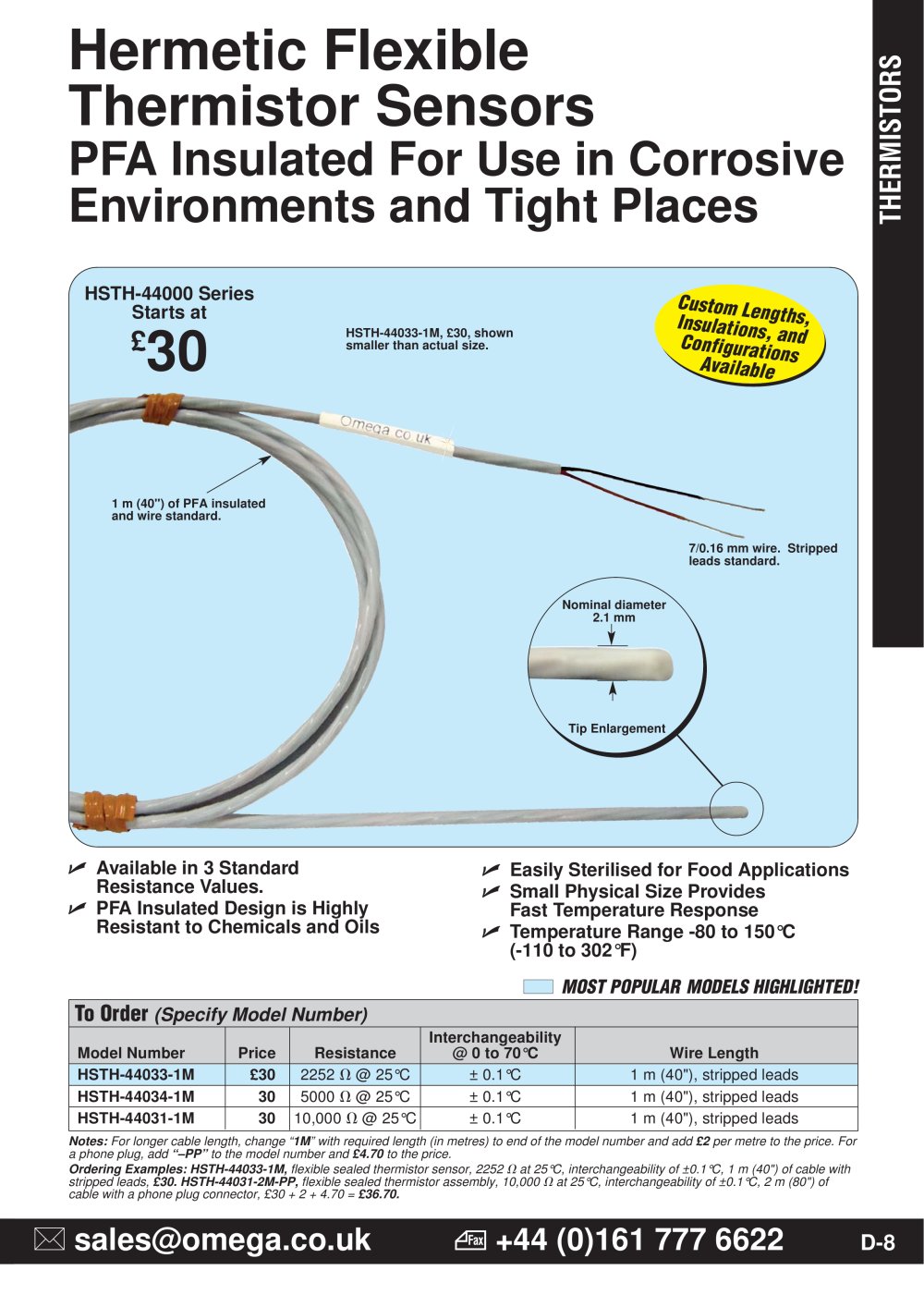

Hermetically Sealed Thermistor Sensors HSTH-44000 Series-1

THERMISTORS [email protected] +44 (0)161 777 6622 D-8 Available in 3 Standard Resistance Values. PFA Insulated Design is Highly Resistant to Chemicals and Oils Hermetic Flexible Thermistor Sensors PFA Insulated For Use in Corrosive Environments and Tight Places HSTH-44000 Series Starts at £30 To Order (Specify Model Number) Interchangeability Model Number Price Resistance @ 0 to 70°C Wire Length HSTH-44033-1M £30 2252 @ 25°C ± 0.1°C 1 m (40"), stripped leads HSTH-44034-1M 30 5000 @ 25°C ± 0.1°C 1 m (40"), stripped leads HSTH-44031-1M 30 10,000 @ 25°C ± 0.1°C 1 m (40"), stripped leads Notes: For longer cable length, change “1M” with required length (in metres) to end of the model number and add £2 per metre to the price. For a phone plug, add “–PP” to the model number and £4.70 to the price. Ordering Examples: HSTH-44033-1M, flexible sealed thermistor sensor, 2252 at 25°C, interchangeability of ±0.1°C, 1 m (40") of cable with stripped leads, £30. HSTH-44031-2M-PP, flexible sealed thermistor assembly, 10,000 at 25°C, interchangeability of ±0.1°C, 2 m (80") of cable with a phone plug connector, £30 + 2 + 4.70 = £36.70. MOST POPULAR MODELS HIGHLIGHTED! 1 m (40") of PFA insulated and wire standard. HSTH-44033-1M, £30, shown smaller than actual size. Easily Sterilised for Food Applications Small Physical Size Provides Fast Temperature Response Temperature Range -80 to 150°C (-110 to 302°F) Nominal diameter 2.1 mm 7/0.16 mm wire. Stripped leads standard. Custom Lengths, Insulations, and Configurations Available Tip Enlargement
