Fine Gauge, Single Strand, Insulated Thermocouple Wire

Product catalog summary

Product Overview: The document provides detailed information about OMEGA's Gold and CHROMEGA® thermocouples and wire, specifically focusing on single strand PFA insulated fine gauge thermocouple wire. The wires are available in continuous lengths up to 300 meters (1000 feet) and are characterized by their thin-wall covering process, color coding, non-flammability, and excellent performance in a vacuum.

Specifications: The thermocouple wires are available in various diameters ranging from 0.08 mm (0.003 inches) to 0.81 mm (0.032 inches). They are offered in different alloy combinations such as Iron/CHROMEGA®, Constantan/CHROMEGA®, and Copper/CHROMEGA®, each with specific color codes for easy identification.

Ordering Information: Customers can order the wires in spools of 15 meters (50 feet) and 30 meters (100 feet) for small quantity needs. The document provides a detailed table with model numbers, wire diameters, and corresponding prices. Discounts are available for bulk orders, with reductions starting from 11 spools.

Pricing: The price varies based on the wire diameter and spool size. For example, a 15-meter spool of wire with a diameter of 0.07 to 0.51 mm costs $16, while the same length of 0.81 mm wire costs $27. Larger spools of 152.5 meters and 305 meters are also available with corresponding price adjustments.

Additional Products: The document mentions other related products and services offered by OMEGA, including temperature calibrators, pressure and strain measurement instruments, pH and conductivity instrumentation, heaters, flow and level measurement devices, and data acquisition systems.

Contact Information: OMEGA provides contact details for various regions including the United States, Canada, United Kingdom, Germany, France, Benelux, and the Czech Republic, along with their respective websites and phone numbers.

Catalog excerpts

Fine Gauge, Single Strand, Insulated Thermocouple Wire-1

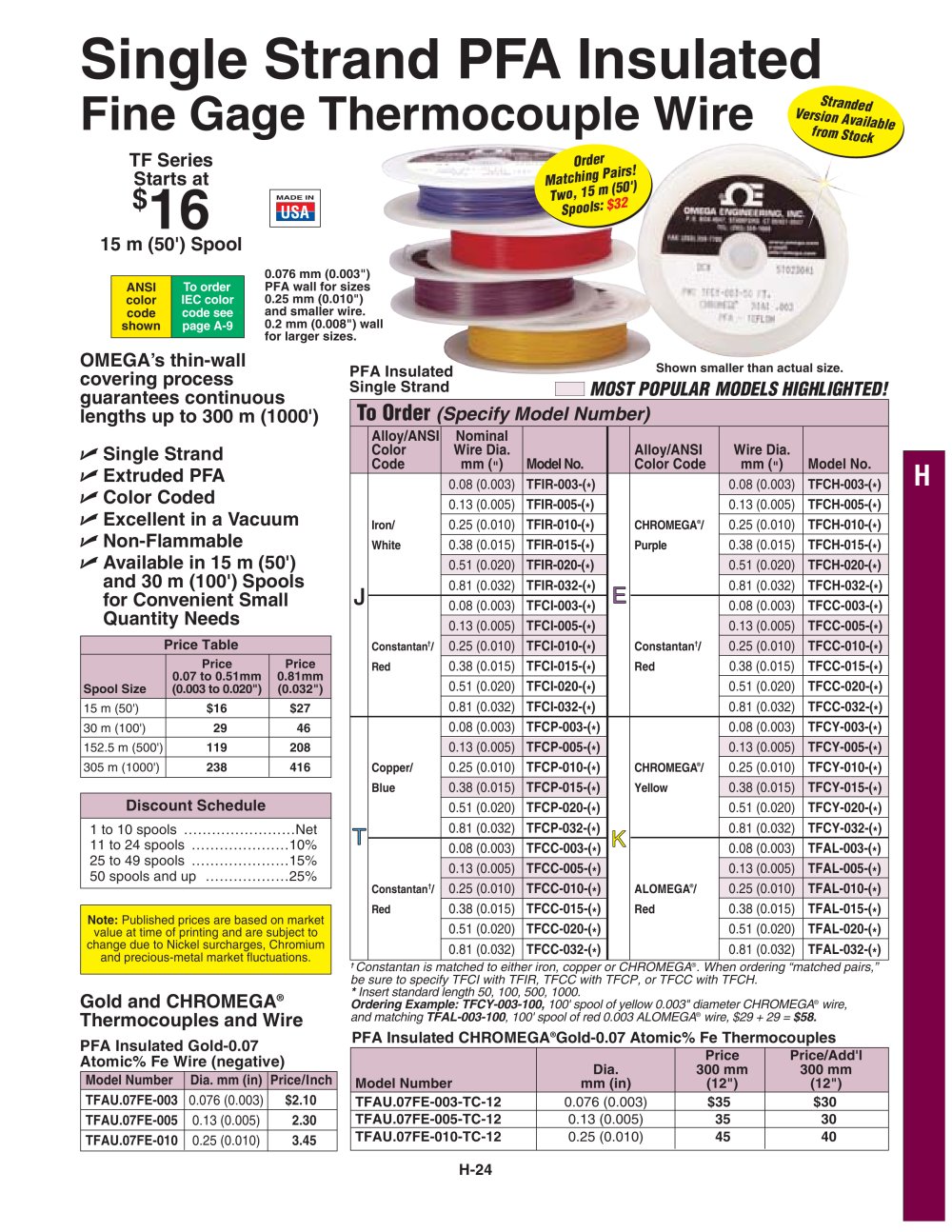

H-24 H Gold and CHROMEGA® Thermocouples and Wire Single Strand PFA Insulated Fine Gage Thermocouple Wire OMEGA’s thin-wall covering process guarantees continuous lengths up to 300 m (1000') Single Strand Extruded PFA Color Coded Excellent in a Vacuum Non-Flammable Available in 15 m (50') and 30 m (100') Spools for Convenient Small Quantity Needs To Order (Specify Model Number) Alloy/ANSI Nominal Color Wire Dia. Alloy/ANSI Wire Dia. Code mm (") Model No. Color Code mm (") Model No. 0.08 (0.003) TFIR-003-(*) 0.08 (0.003) TFCH-003-(*) 0.13 (0.005) TFIR-005-(*) 0.13 (0.005) TFCH-005-(*) Iron/ 0.25 (0.010) TFIR-010-(*) CHROMEGA®/ 0.25 (0.010) TFCH-010-(*) White 0.38 (0.015) TFIR-015-(*) Purple 0.38 (0.015) TFCH-015-(*) 0.51 (0.020) TFIR-020-(*) 0.51 (0.020) TFCH-020-(*) 0.81 (0.032) TFIR-032-(*) 0.81 (0.032) TFCH-032-(*) 0.08 (0.003) TFCI-003-(*) 0.08 (0.003) TFCC-003-(*) 0.13 (0.005) TFCI-005-(*) 0.13 (0.005) TFCC-005-(*) Constantan†/ 0.25 (0.010) TFCI-010-(*) Constantan†/ 0.25 (0.010) TFCC-010-(*) Red 0.38 (0.015) TFCI-015-(*) Red 0.38 (0.015) TFCC-015-(*) 0.51 (0.020) TFCI-020-(*) 0.51 (0.020) TFCC-020-(*) 0.81 (0.032) TFCI-032-(*) 0.81 (0.032) TFCC-032-(*) 0.08 (0.003) TFCP-003-(*) 0.08 (0.003) TFCY-003-(*) 0.13 (0.005) TFCP-005-(*) 0.13 (0.005) TFCY-005-(*) Copper/ 0.25 (0.010) TFCP-010-(*) CHROMEGA®/ 0.25 (0.010) TFCY-010-(*) Blue 0.38 (0.015) TFCP-015-(*) Yellow 0.38 (0.015) TFCY-015-(*) 0.51 (0.020) TFCP-020-(*) 0.51 (0.020) TFCY-020-(*) 0.81 (0.032) TFCP-032-(*) 0.81 (0.032) TFCY-032-(*) 0.08 (0.003) TFCC-003-(*) 0.08 (0.003) TFAL-003-(*) 0.13 (0.005) TFCC-005-(*) 0.13 (0.005) TFAL-005-(*) Constantan†/ 0.25 (0.010) TFCC-010-(*) ALOMEGA®/ 0.25 (0.010) TFAL-010-(*) Red 0.38 (0.015) TFCC-015-(*) Red 0.38 (0.015) TFAL-015-(*) 0.51 (0.020) TFCC-020-(*) 0.51 (0.020) TFAL-020-(*) 0.81 (0.032) TFCC-032-(*) 0.81 (0.032) TFAL-032-(*) PFA Insulated Single Strand Price Table Price Price 0.07 to 0.51mm 0.81mm Spool Size (0.003 to 0.020") (0.032") 15 m (50') $16 $27 30 m (100') 29 46 152.5 m (500') 119 208 305 m (1000') 238 416 Discount Schedule 1 to 10 spools ……………………Net 11 to 24 spools …………………10% 25 to 49 spools …………………15% 50 spools and up ………………25% 0.076 mm (0.003") PFA wall for sizes 0.25 mm (0.010") and smaller wire. 0.2 mm (0.008") wall for larger sizes. TF Series Starts at $16 15 m (50') Spool † Constantan is matched to either iron, copper or CHROMEGA®. When ordering “matched pairs,” be sure to specify TFCI with TFIR, TFCC with TFCP, or TFCC with TFCH. * Insert standard length 50, 100, 500, 1000. Ordering Example: TFCY-003-100, 100' spool of yellow 0.003" diameter CHROMEGA® wire, and matching TFAL-003-100, 100' spool of red 0.003 ALOMEGA® wire, $29 + 29 = $58. Shown smaller than actual size. Order Matching Pairs! Two, 15 m (50') Spools: $32 ANSI color code shown To order IEC color code see page A-9 MOST POPULAR MODELS HIGHLIGHTED! Note: Published prices are based on market value at time of printing and are subject to change due to Nickel surcharges, Chromium and precious-metal market fluctuations. Model Number Dia. mm (in) Price/Inch TFAU.07FE-003 0.076 (0.003) $2.10 TFAU.07FE-005 0.13 (0.005) 2.30 TFAU.07FE-010 0.25 (0.010) 3.45 PFA Insulated Gold-0.07 Atomic% Fe Wire (negative) Price Price/Add'l Dia. 300 mm 300 mm Model Number mm (in) (12") (12") TFAU.07FE-003-TC-12 0.076 (0.003) $35 $30 TFAU.07FE-005-TC-12 0.13 (0.005) 35 30 TFAU.07FE-010-TC-12 0.25 (0.010) 45 40 PFA Insulated CHROMEGA®Gold-0.07 Atomic% Fe Thermocouples Stranded Version Available from Stock
