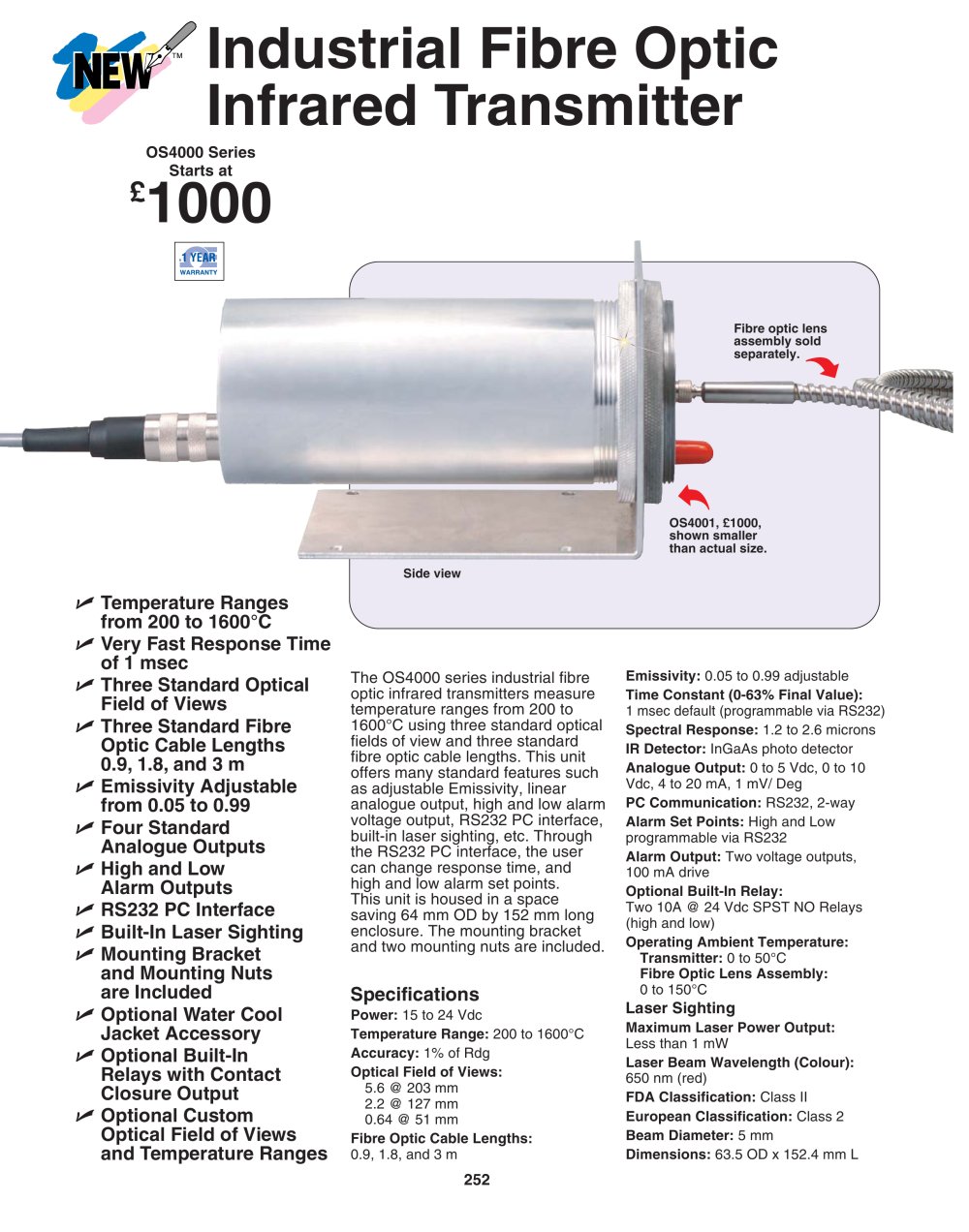

252 Industrial Fibre Optic Infrared Transmitter Temperature Ranges from 200 to 1600°C Very Fast Response Time of 1 msec Three Standard Optical Field of Views Three Standard Fibre Optic Cable Lengths 0.9, 1.8, and 3 m Emissivity Adjustable from 0.05 to 0.99 Four Standard Analogue Outputs High and Low Alarm Outputs RS232 PC Interface Built-In Laser Sighting Mounting Bracket and Mounting Nuts are Included Optional Water Cool Jacket Accessory Optional Built-In Relays with Contact Closure Output Optional Custom Optical Field of Views and Temperature Ranges The OS4000 series industrial fibre optic infrared transmitters measure temperature ranges from 200 to 1600°C using three standard optical fields of view and three standard fibre optic cable lengths. This unit offers many standard features such as adjustable Emissivity, linear analogue output, high and low alarm voltage output, RS232 PC interface, built-in laser sighting, etc. Through the RS232 PC interface, the user can change response time, and high and low alarm set points. This unit is housed in a space saving 64 mm OD by 152 mm long enclosure. The mounting bracket and two mounting nuts are included. Emissivity: 0.05 to 0.99 adjustable Time Constant (0-63% Final Value): 1 msec default (programmable via RS232) Spectral Response: 1.2 to 2.6 microns IR Detector: InGaAs photo detector Analogue Output: 0 to 5 Vdc, 0 to 10 Vdc, 4 to 20 mA, 1 mV/ Deg PC Communication: RS232, 2-way Alarm Set Points: High and Low programmable via RS232 Alarm Output: Two voltage outputs, 100 mA drive Optional Built-In Relay: Two 10A @ 24 Vdc SPST NO Relays (high and low) Operating Ambient Temperature: Transmitter: 0 to 50°C Fibre Optic Lens Assembly: 0 to 150°C Laser Sighting Maximum Laser Power Output: Less than 1 mW Laser Beam Wavelength (Colour): 650 nm (red) FDA Classification: Class II European Classification: Class 2 Beam Diameter: 5 mm Dimensions: 63.5 OD x 152.4 mm L Specifications Power: 15 to 24 Vdc Temperature Range: 200 to 1600°C Accuracy: 1% of Rdg Optical Field of Views: 5.6 @ 203 mm 2.2 @ 127 mm 0.64 @ 51 mm Fibre Optic Cable Lengths: 0.9, 1.8, and 3 m OS4001, £1000, shown smaller than actual size. OS4000 Series Starts at £1000 Side view Fibre optic lens assembly sold separately.

Open the catalog to page 1

Back view Lens probe assembley sold separately. Front label Front view 253 INFRARED To Order (Specify Model Number) Model No.* Price Description OS4001-MV-* £1000 Infrared fibre optic transmitter, 1 mV/ Deg output OS4001-V1-* 1000 Infrared fibre optic transmitter, 0 to 5 Vdc output OS4001-V2-* 1000 Infrared fibre optic transmitter, 0 to 10 Vdc output OS4001-MA-* 1000 Infrared fibre optic transmitter, 4 to 20 mA output To Order (Specify Model Number) Model No. Price Temp Range Spot size Cable Length L1-7-3-1 £452 200 to 800°C 5.6 mm @ 203 mm 0.9 m L1-7-6-2 535 250 to 1000°C 5.6 mm @ 203 mm...
