Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC

Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC
4Pages

Catalog excerpts

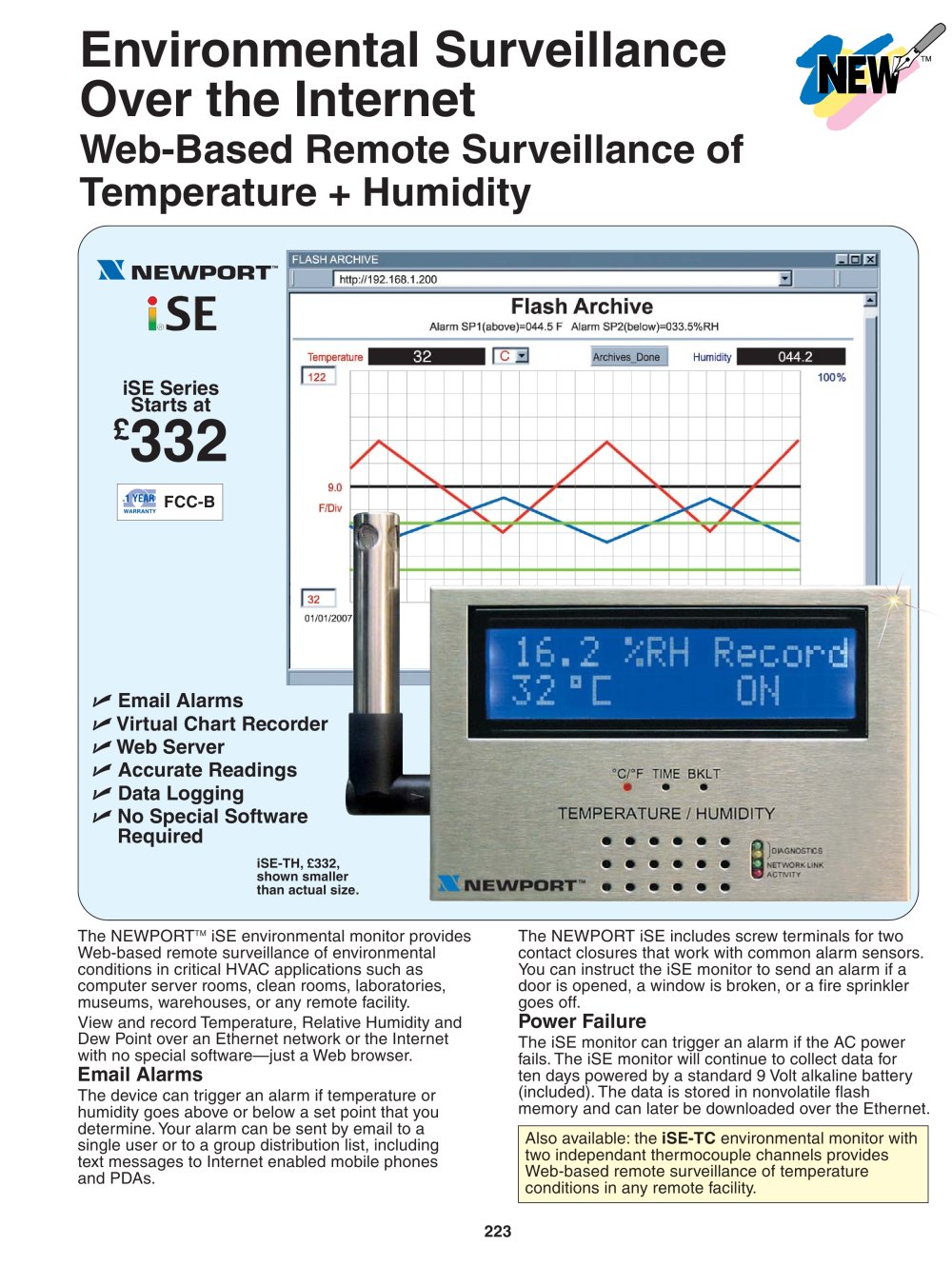

Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC - 1

223 Environmental Surveillance Over the Internet Web-Based Remote Surveillance of Temperature + Humidity The NEWPORTTM iSE environmental monitor provides Web-based remote surveillance of environmental conditions in critical HVAC applications such as computer server rooms, clean rooms, laboratories, museums, warehouses, or any remote facility. View and record Temperature, Relative Humidity and Dew Point over an Ethernet network or the Internet with no special software—just a Web browser. Email Alarms The device can trigger an alarm if temperature or humidity goes above or below a set point that you determine. Your alarm can be sent by email to a single user or to a group distribution list, including text messages to Internet enabled mobile phones and PDAs. Email Alarms Virtual Chart Recorder Web Server Accurate Readings Data Logging No Special Software Required The NEWPORT iSE includes screw terminals for two contact closures that work with common alarm sensors. You can instruct the iSE monitor to send an alarm if a door is opened, a window is broken, or a fire sprinkler goes off. Power Failure The iSE monitor can trigger an alarm if the AC power fails. The iSE monitor will continue to collect data for ten days powered by a standard 9 Volt alkaline battery (included). The data is stored in nonvolatile flash memory and can later be downloaded over the Ethernet. iSE Series Starts at £332 iSE-TH, £332, shown smaller than actual size. FCC-B Also available: the iSE-TC environmental monitor with two independant thermocouple channels provides Web-based remote surveillance of temperature conditions in any remote facility.

Open the catalog to page 1

Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC - 2

224 Local Alarms The NEWPORT iSE monitor includes two 1.5 Amp output relays that are controlled by the alarm conditions you select. The relays can trigger flashing lights and a siren for example to alert personnel near the scene. With the easy Webbased setup page, the two relays can be programmed for any combination of temperature or humidity, and high or low set points, as well as alarm conditions triggered by contact closures. The relays can also be programmed to turn off when conditions return to normal, or programmed to remain latched and require a manual reset. View Charts and Graphs...

Open the catalog to page 2

Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC - 3

225 Interfaces Ethernet: 10Base-T (RJ45) Supported Protocols: TCP/IP, UDP/IP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet Indicators (LED’s): Network Activity, Network Link, Transmit and Receive/ Diagnostics LCD Display: 32 Digits 4.8 x 9.7 mm Memory: 512 Kbytes flash, 16 Kbytes SRAM Memory Data Flash Card: 2 M bytes: 2 months of data storage at 10 second logging intervals or 1 year at 1 minute intervals Relay Outputs: Two relays 1.5A @ 30 Vdc Alarm I/O: Two contact outputs, one open collector output 150 mA @ 30 Vdc Management: Device configuration and monitoring through embedded WEB server...

Open the catalog to page 3

Ethernet/Internet Thermocouple Temperature Transmitter iSE-TC - 4

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | Sales@omega.co.uk www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement...
