Dry Block Calibrator CL-700A Series

Dry Block Calibrator CL-700A Series

Product catalog summary

Specifications
The document outlines the specifications for a series of block calibrators, including the CL-740A, CL-750A, and CL-760A models. Key specifications include:

Serial Interface Port (RS232) with bi-directional communication at 9600 Baud, using a 9-way D-type connector.
Voltage options of 120 V or 230 V, with a frequency of 50/60 Hz and power consumption of 400 Watts.
Measuring zone from 0 to 50 mm with a display resolution of 0.1°C or 0.1°F.
Programmable ramp rate ranging from 0.18 to 77°C/min.

Environmental Specifications
The calibrators operate within an ambient temperature range of 10 to 30°C and can handle humidity levels up to 95% non-condensing.

Software Features
The accompanying Windows software allows users to:

Monitor and control the calibrator in real-time from a PC.
Create, store, and retrieve programs for transmission to the calibrator.
Read data and produce certificates, export data, and present it in graphical and tabular formats.
Manage up to 10 ramp/soak programs with a maximum of 10 segments each.

Model Specifications
Each model has distinct temperature ranges and specifications:

CL-740A: Temperature range from -40°C to 140°C, accuracy of ±0.3°C, and uniformity of ±0.2°C.
CL-750A: Temperature range from 25°C to 650°C, accuracy of ±0.2°C, and uniformity of ±0.1°C.
CL-760A: Temperature range from 20°C to 425°C, accuracy of ±0.3°C, and uniformity of ±0.2°C.

Ordering Information
The document provides pricing and ordering details for various models and accessories, including cooling coils and circulating bath chillers. It also lists available well inserts in both metric and imperial sizes.

Additional Information
The document includes contact information for Omega's international offices and highlights the wide range of products available, including temperature calibrators, pressure sensors, pH and conductivity instruments, heaters, flow and level measurement devices, and data acquisition systems.

Catalog excerpts

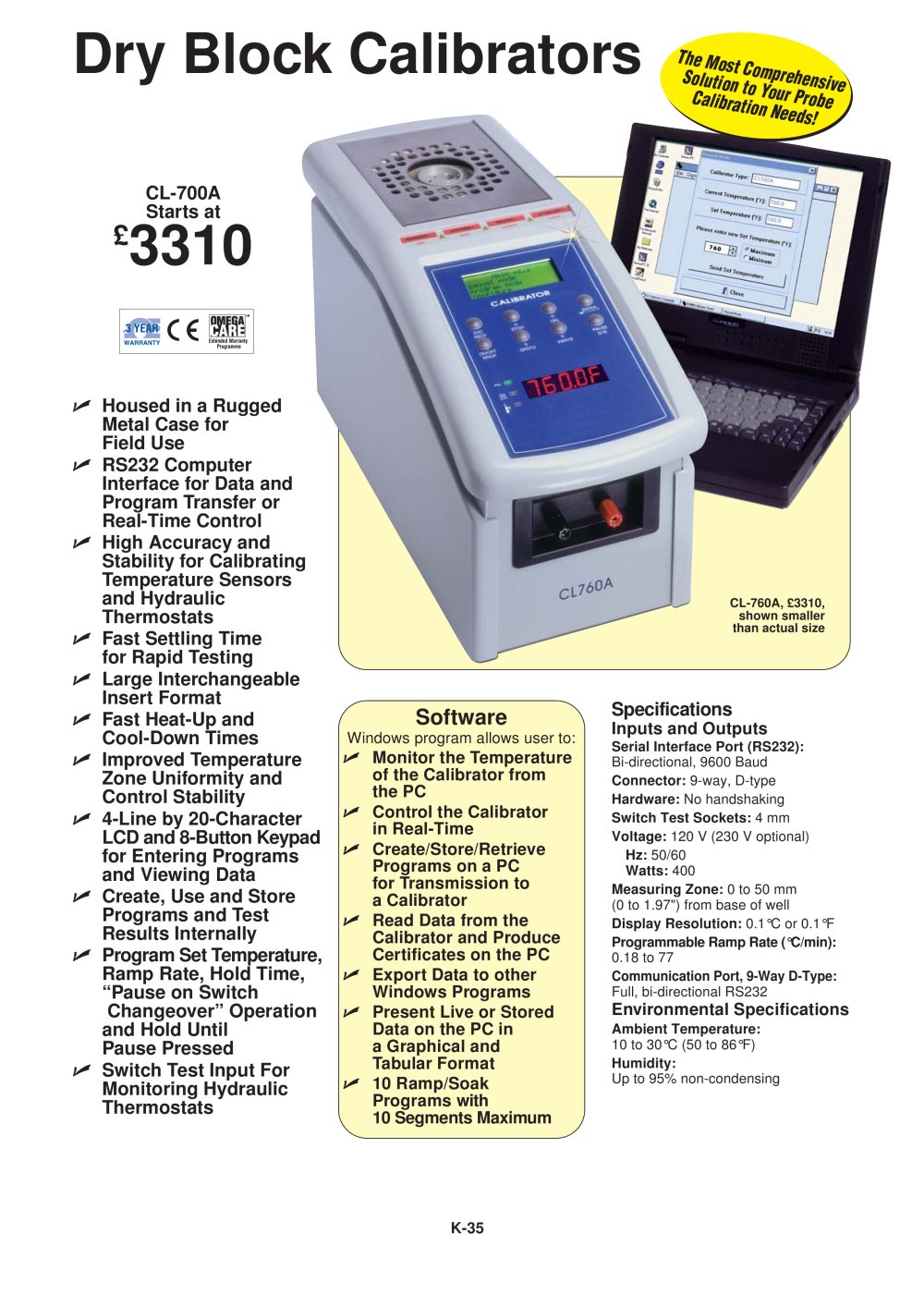

K-35 Specifications Inputs and Outputs Serial Interface Port (RS232): Bi-directional, 9600 Baud Connector: 9-way, D-type Hardware: No handshaking Switch Test Sockets: 4 mm Voltage: 120 V (230 V optional) Hz: 50/60 Watts: 400 Measuring Zone: 0 to 50 mm (0 to 1.97") from base of well Display Resolution: 0.1°C or 0.1°F Programmable Ramp Rate (°C/min): 0.18 to 77 Communication Port, 9-Way D-Type: Full, bi-directional RS232 Environmental Specifications Ambient Temperature: 10 to 30°C (50 to 86°F) Humidity: Up to 95% non-condensing Dry Block Calibrators Software Windows program allows user to: Monitor the Temperature of the Calibrator from the PC Control the Calibrator in Real-Time Create/Store/Retrieve Programs on a PC for Transmission to a Calibrator Read Data from the Calibrator and Produce Certificates on the PC Export Data to other Windows Programs Present Live or Stored Data on the PC in a Graphical and Tabular Format 10 Ramp/Soak Programs with 10 Segments Maximum Housed in a Rugged Metal Case for Field Use RS232 Computer Interface for Data and Program Transfer or Real-Time Control High Accuracy and Stability for Calibrating Temperature Sensors and Hydraulic Thermostats Fast Settling Time for Rapid Testing Large Interchangeable Insert Format Fast Heat-Up and Cool-Down Times Improved Temperature Zone Uniformity and Control Stability 4-Line by 20-Character LCD and 8-Button Keypad for Entering Programs and Viewing Data Create, Use and Store Programs and Test Results Internally Program Set Temperature, Ramp Rate, Hold Time, “Pause on Switch Changeover” Operation and Hold Until Pause Pressed Switch Test Input For Monitoring Hydraulic Thermostats CL-760A, £3310, shown smaller than actual size CL-700A Starts at £3310 The Most Comprehensive Solution to Your Probe Calibration Needs!

Open the catalog to page 1

K-36 K To Order (Specify Model Number) Model No. Price Description CL-740A-230 £4095 Block calibrator CL-750A-230 4070 Block calibrator CL-760A-230 3310 Block calibrator Model No. Price Description CL7A-PROBE £127 Cooling coil for all units, shortens cool-down time CL7A-CHILL-230 2260 Circulating bath chiller, lowers effective unit operatation at -40°C Accessories Comes with complete user manual, RS232 communication, PC software and RS232 cable, removable AC power cable, soft carrying case with carrying strap, insert extractor tool and 1x multi-hole insert (1¼8", 3¼16", 1¼4", 5¼16", 3¼8"). Ordering...

Open the catalog to page 2

Freephone 0800 488 488 | International +44(0) 161 777 6622 | Fax +44(0) 161 777 6622 | [email protected] www.omega.co.uk More than 100,000 Products Available! CANADA www.omega.ca Laval(Quebec) 1-800-TC-OMEGA UNITED KINGDOM www. omega.co.uk Manchester, England 0800-488-488 GERMANY www.omega.de Deckenpfronn, Germany 0800-8266342 FRANCE www.omega.fr 088-466-342 BENELUX www.omega.nl 0800-099-33-44 UNITED STATES www.omega.com 1-800-TC-OMEGA Stamford, CT. CZECH REPUBLIC www.omegaeng.cz Karviná, Czech Republic 596-311-899 Temperature Calibrators, Connectors, General Test and Measurement Instruments,...

Open the catalog to page 3
